Fisher Custom

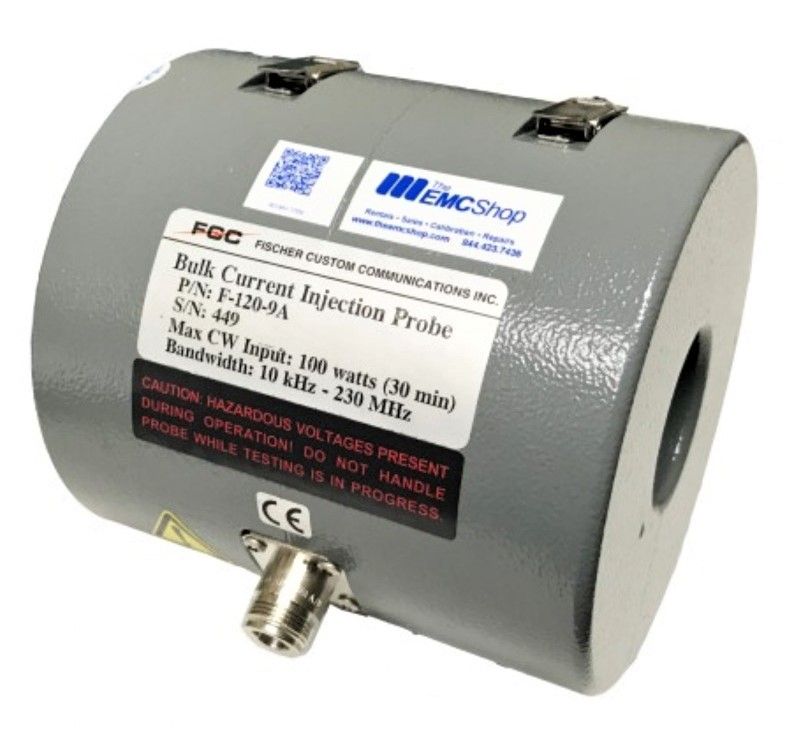

Fischer Custom Communications F-120-9
Clamp On Injection Probe, 10 kHz - 230 MHz
Fischer Custom Communications F-120-9 Options:
- F-120-9 - FCC-BCICF-1 - Calibration Fixture, Bandwidth: 10 kHz – 400 MHz
- F-120-9 - F-52 - Current Probe, Bandwidth: 10 kHz – 400 MHz
| Model | F-120-9 |
|---|
FISCHER CUSTOM COMMUNICATIONS F-120-9
The Fischer F-120-9 Clamp-On Inection Probe has been designed to extend the use of conducted immunity testing over the bandwidth of 10 kHz €“ 230 MHz. The useable frequency range is 10 kHz - 230 MHz with an insertion loss of less than 10 dB between 120 kHz €“ 230 MHz. The input power rating is 100 watts for 30 minutes.
Features and specifications of the Fischer F-120-9 include:
- Frequency: 10 kHz €“ 230 MHz
- Inner Diameter: 40mm
- Outer diameter: 127mm
- Height: 70mm
- Input Power rating: 100 watts
For use with the .
