Fluke 1746
| Attribut | Valeur |
|---|---|
| Type d'appareil | Enregistreur de qualité de l'énergie triphasé |
| Canaux de tension | 4 canaux de tension (3 phases + neutre) |
| Canaux de courant | 4 canaux de courant (3 phases + neutre) |
| Plage de tension | Jusqu'à 1000 V CAT III / 600 V CAT IV |
| Plage de courant | Jusqu'à 3000 A avec pinces de courant compatibles |
| Mémoire interne | 256 Mo de mémoire interne pour l'enregistrement des données |
| Interface de communication | USB, Ethernet et carte mémoire SD |
| Conformité aux normes | Conforme à la norme EN 50160 et IEC 61000-4-30 Classe A |
| Alimentation | Alimentation via les conducteurs mesurés ou adaptateur secteur externe |
| Logiciel d'analyse | Compatible avec le logiciel Fluke Energy Analyze pour l'analyse et le reporting |
Fluke 1746 Options:
- 1746 - 1746-8/UPGRADE - Upgrade 1746 to 1748 functionality (includes hanger kit)
- 1746 - IEEE519/REPORT - Software license for IEEE 519 reporting
- 1746 - 15/EUS - WiFi/BLE Adapter + i17XX-flex1500 24" Current Probe (x4) + EU/US/UK Power Cords with MA-C8 adapter
- 1746 - 30/EUS - WiFi/BLE Adapter + i17XX-flex3000 24" Current Probe (x4) + EU/US/UK Power Cords with MA-C8 adapter
- 1746 - B/EUS - WiFi/BLE Adapter + EU/US/UK Power Cords with MA-C8 adapter (no current probes)
- 1746 - 15/INTL - i17XX-flex1500 24" Current Probe (x4) + EU/US/UK/CN-AUS/BR Power Cords with MA-C8 adapter
- 1746 - 30/INTL - i17XX-flex3000 24" Current Probe (x4) + EU/US/UK/CN-AUS/BR Power Cords with MA-C8 adapter
- 1746 - B/INTL - EU/US/UK/CN-AUS/BR Power Cords with MA-C8 adapter (no current probes)
| Model | 1746 |
|---|

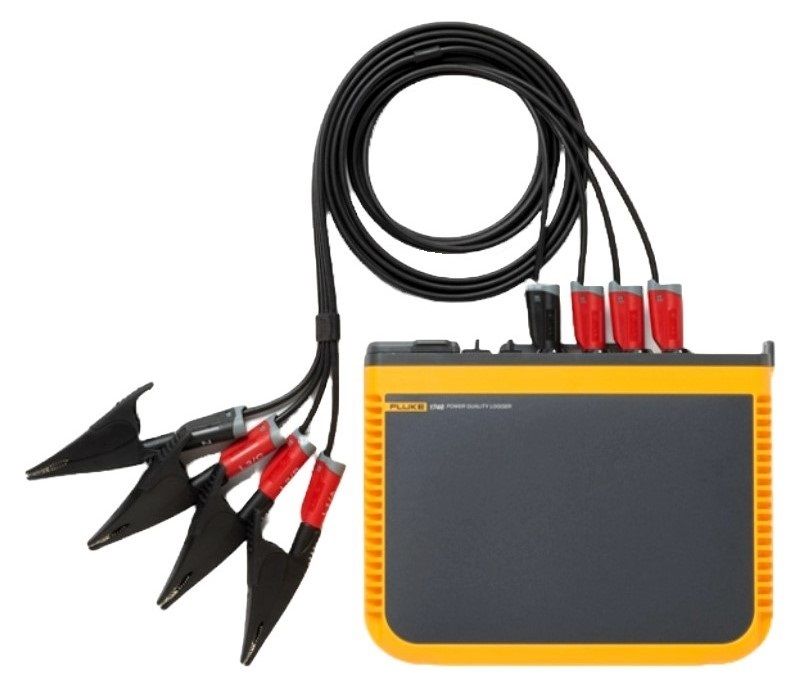

FLUKE 1746 Three Phase Power Quality Logger
The Fluke 1746 Three-Phase Power Quality Loggers is designed for technicians and engineers troubleshooting, quantifying energy usage, and analyzing power distribution systems. Compliant with international power quality standards, such as IEC 61000-4-30, it can capture events to uncover intermittent power quality issues more easily.
The Fluke 1746 logger measures all three voltage and cur phases, plus neutral current, meeting IEC 61000-4-30 Class A Edition 3 standard for power quality measurement. It includes features like event waveform capture, RMS event profile, and measures harmonics, interharmonics, unbalance, flicker, and rapid voltage changes. The Fluke 1746 offers wireless real-time measurements, easy data download, and advanced analysis capabilities through the Energy Analyze plus software.
Specifications for the FLUKE 1746 Three Phase Power Quality Logger Include:
| Voltage Range | 1000 V |
| Frequency Range | 42.5 Hz to 69 Hz |
| Max Voltage Resolution | 0.1 V |
