Fluke 1748
| Attribut | Valeur |
|---|---|
| Type d'appareil | Enregistreur de qualité d'énergie triphasé |
| Nombre de phases | Triphasé (3 phases + neutre) |
| Plage de tension | 1 V à 1000 V AC/DC (phase à neutre), jusqu'à 1700 V AC/DC (phase à phase) |
| Plage de courant | 1 mA à 10 000 A AC (avec pinces ampèremétriques compatibles) |
| Fréquence mesurée | 40 Hz à 70 Hz |
| Mémoire interne | 256 Mo de mémoire flash interne |
| Interface de communication | USB, Ethernet, Wi-Fi (en option) |
| Logiciel inclus | Fluke Energy Analyze Plus (analyse et rapport de qualité d'énergie) |
| Alimentation | Alimentation secteur via câble d'alimentation intégré ou via les conducteurs mesurés |
| Normes de conformité | CEI 61000-4-30 Classe A, CEI 61010-1, CEI 61010-2-030 |
Fluke 1748 Options:
- 1748 - /15/EUS - With WiFi/BLE Adapter and i17XX-flex1500 24" Current Probe (x4), EU/US/UK Power Cords with MA-C8 adapter
- 1748 - /30/EUS - With WiFi/BLE Adapter and i17XX-flex3000 24" Current Probe (x4), EU/US/UK Power Cords with MA-C8 adapter
- 1748 - /B/EUS - With WiFi/BLE Adapter, no current probes, EU/US/UK Power Cords with MA-C8 adapter
- 1748 - /15/INTL - With i17XX-flex1500 24" Current Probe (x4), EU/US/UK/CN-AUS/BR Power Cords with MA-C8 adapter
- 1748 - /30/INTL - With i17XX-flex3000 24" Current Probe (x4), EU/US/UK/CN-AUS/BR Power Cords with MA-C8 adapter
- 1748 - /B/INTL - No current probes, EU/US/UK/CN-AUS/BR Power Cords with MA-C8 adapter
- 1748 - 1746-8/UPGRADE - Upgrade 1746 to 1748 functionality (includes hanger kit)
- 1748 - 1742-8/UPGRADE - Upgrade 1742 to 1748 functionality (includes magnetic probes and hanger kit)
- 1748 - IEEE519/REPORT - Software license for IEEE 519 reporting
| Model | 1748 |
|---|

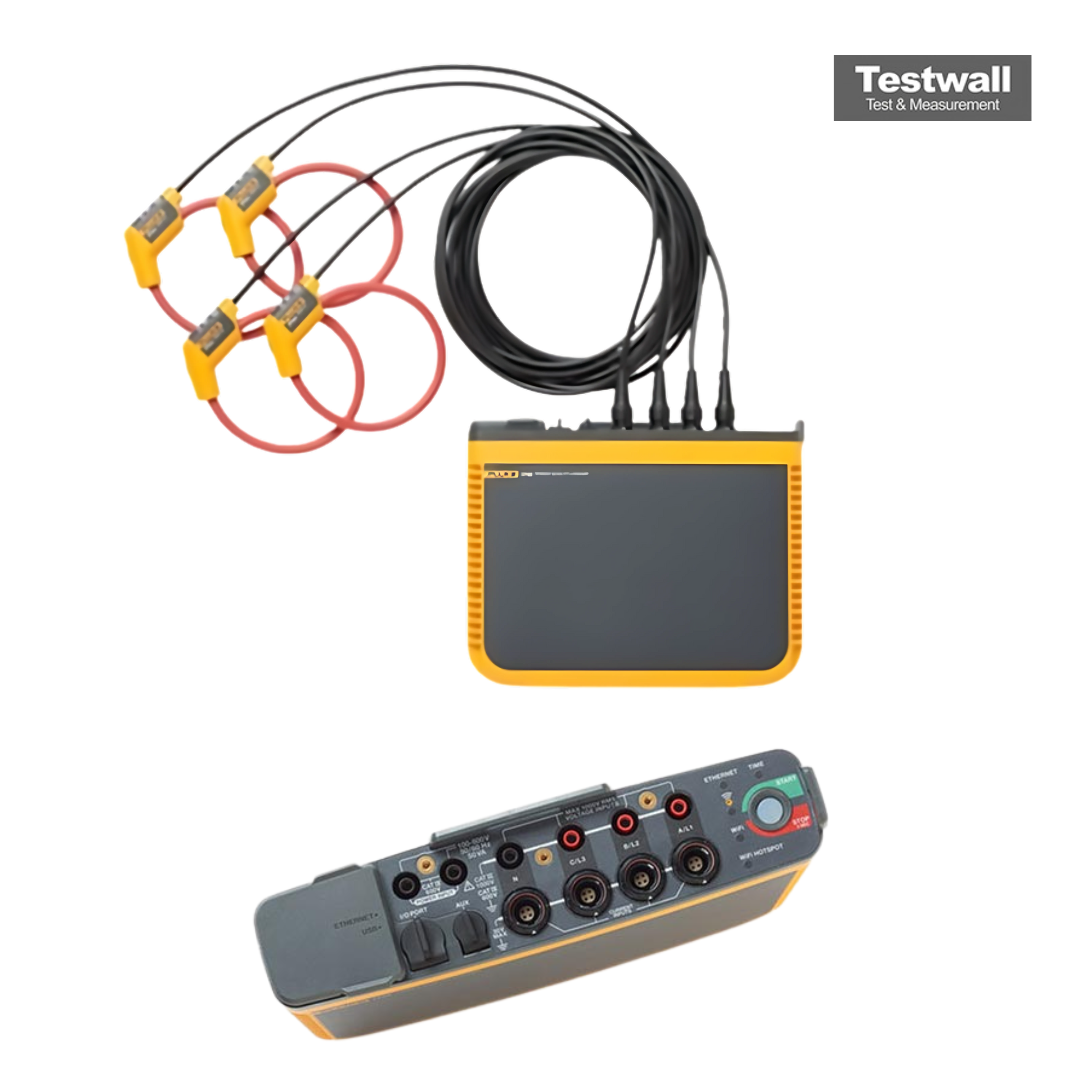

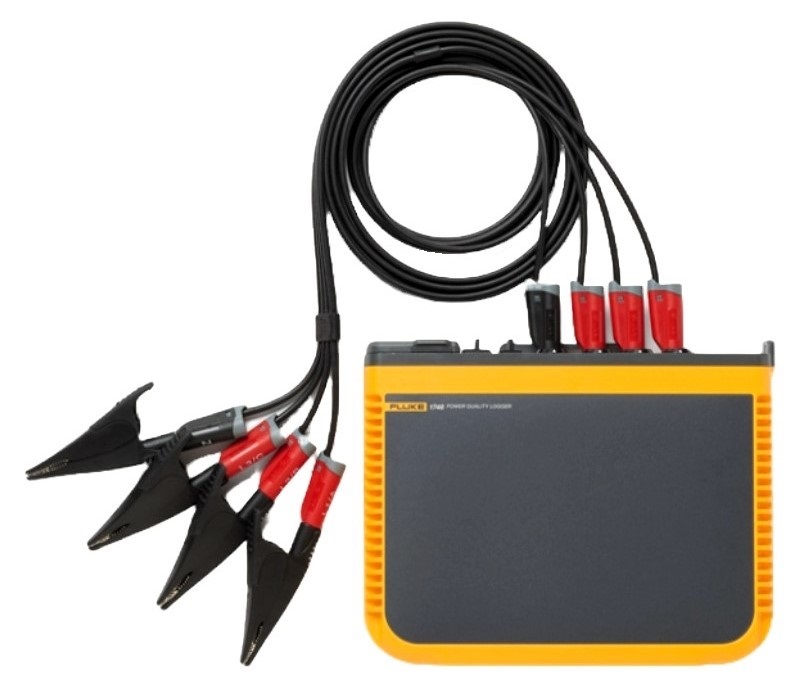

FLUKE 1748 Three Phase Power Quality Logger
The Fluke 1748 Three-Phase Power Quality Loggers is designed for technicians and engineers troubleshooting, quantifying energy usage, and analyzing power distribution systems. Compliant with international power quality standards, such as IEC 61000-4-30, it can simultaneously log up to 500 parameters, capturing events to uncover intermittent power quality issues more easily.
The Fluke 1748 logger measures all three voltage and cur phases, plus neutral current, meeting IEC 61000-4-30 Class A Edition 3 standard for power quality measurement. It includes features like event waveform capture, RMS event profile, and measures harmonics, interharmonics, unbalance, flicker, and rapid voltage changes. The Fluke 1748 logs over 500 parameters, aiding in detailed power quality analysis and predictive maintenance by calculating cur harmonics limits. It offers wireless real-time measurements, easy data download, and advanced analysis capabilities through the Energy Analyze plus software.
Specifications for the FLUKE 1748 Three Phase Power Quality Logger Include:
| Voltage Range | 1000 V |
| Frequency Range | 42.5 Hz to 69 Hz |
| Max Voltage Resolution | 0.1 V |
