Fluke 1777
| Attribut | Valeur |
|---|---|
| Type de mesure | Analyseur de qualité de l'énergie triphasé |
| Plage de tension | 1 V à 1000 V CA (phase à neutre), 1 V à 1700 V CA (phase à phase) |
| Plage de courant | 1 mA à 10 000 A (avec sondes de courant compatibles) |
| Fréquence mesurée | 42,5 Hz à 69 Hz |
| Précision de la tension | ± 0,1 % de la valeur nominale |
| Mémoire interne | Jusqu'à 8 Go (carte mémoire SD) |
| Affichage | Écran couleur LCD tactile |
| Interface de communication | USB, Ethernet, Wi-Fi (en option) |
| Conformité aux normes | EN 50160, IEC 61000-4-30 Classe A |
| Alimentation | 100 V à 440 V CA, 50/60 Hz ou batterie rechargeable |
Fluke 1777 Options:
- 1777 - FLUKE-1777 - Power Quality Analyzer (standard, includes i17XX-FLEX1500 24" current probes and WiFi/BLE adapter)
- 1777 - FLUKE-1777/BASIC - Power Quality Analyzer Basic (does not include current probes or WiFi/BLE adapter)
| Model | 1777 |
|---|

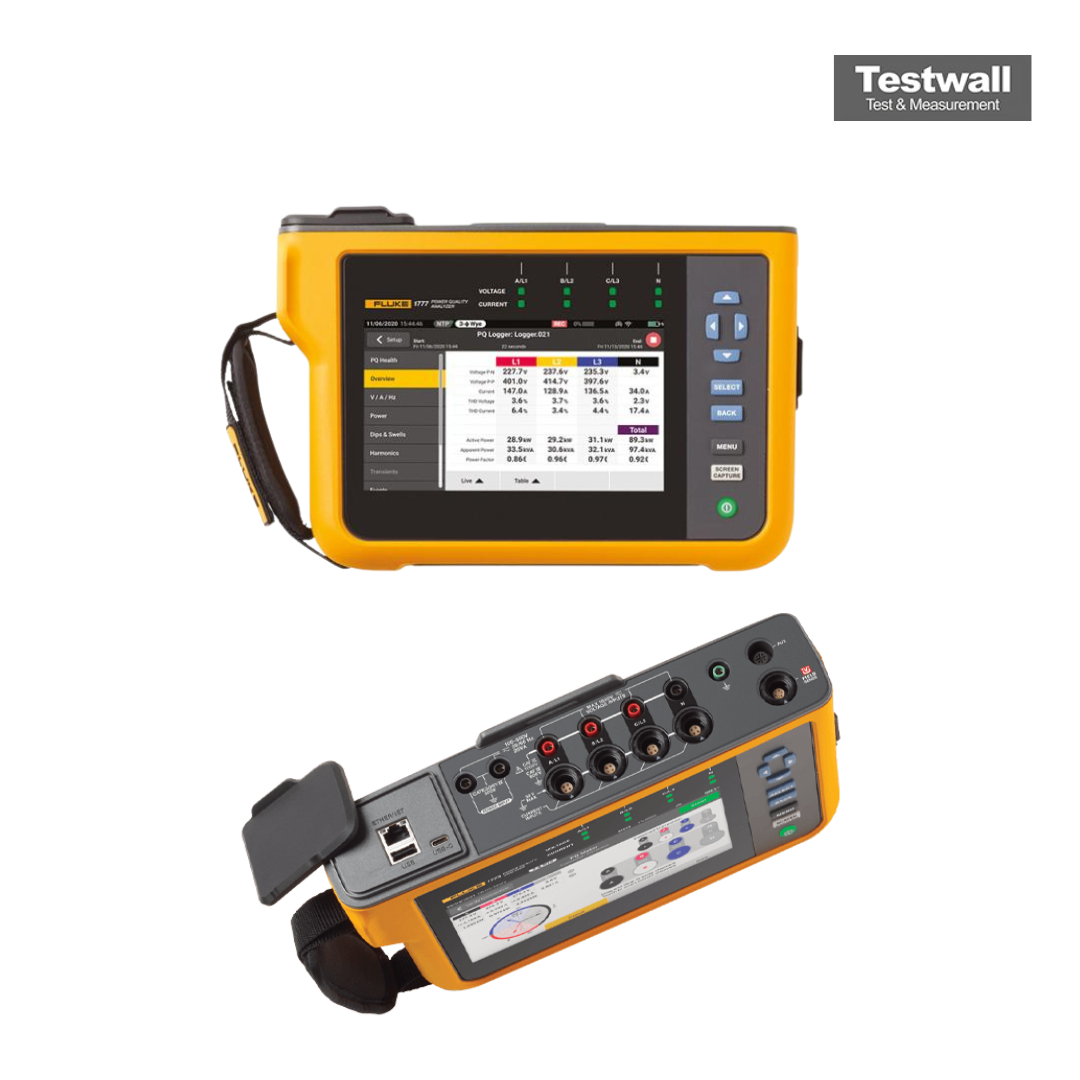

Fluke 1777 Three-Phase Power Quality Analyzer
With the Fluke 1777 you'll never miss a critical power quality event €”from fast transients up to 8 kV, harmonics up to 30 kHz, dips and swells, as well as the voltage, current, and power measurements that enable you to characterize your electrical system. The Fluke 1777 offers a unique automatic measurement capture system that helps ensure you're collecting the right data every time, while still giving you the flexibility to select and adjust specific parameters as needed. Logged data is instantly viewable, downloadable, and shareable with Fluke Energy Analyze Plus software which comes standard.
The Fluke 1777 is a 2-in-1 device that combines the troubleshooting functionality of a power quality meter with the robust analysis and logging capabilities of a standalone power quality analyzer in a single, easy-to-use, handheld device. The PQ Meter function gives you immediate access to live on screen data in the field so you can quickly identify potential problems while troubleshooting. The Fluke 1777 Power Quality Analyzer has 20MHz sampling capability to capture the fastest transients in high detail so you have the data you need to stop them in their tracks.
Specifications for the Fluke 1777 Three-Phase Power Quality Analyzer Include:
| Max Input Voltage | 1000 V rms / 1000 V dc (1700 Vpk) |
| Resolution | 24-bit synchronous sampling |
| Bandwidth | DC to 30kHz |
| Sampling Frequency | 80 kS/s at 50/60 Hz |
