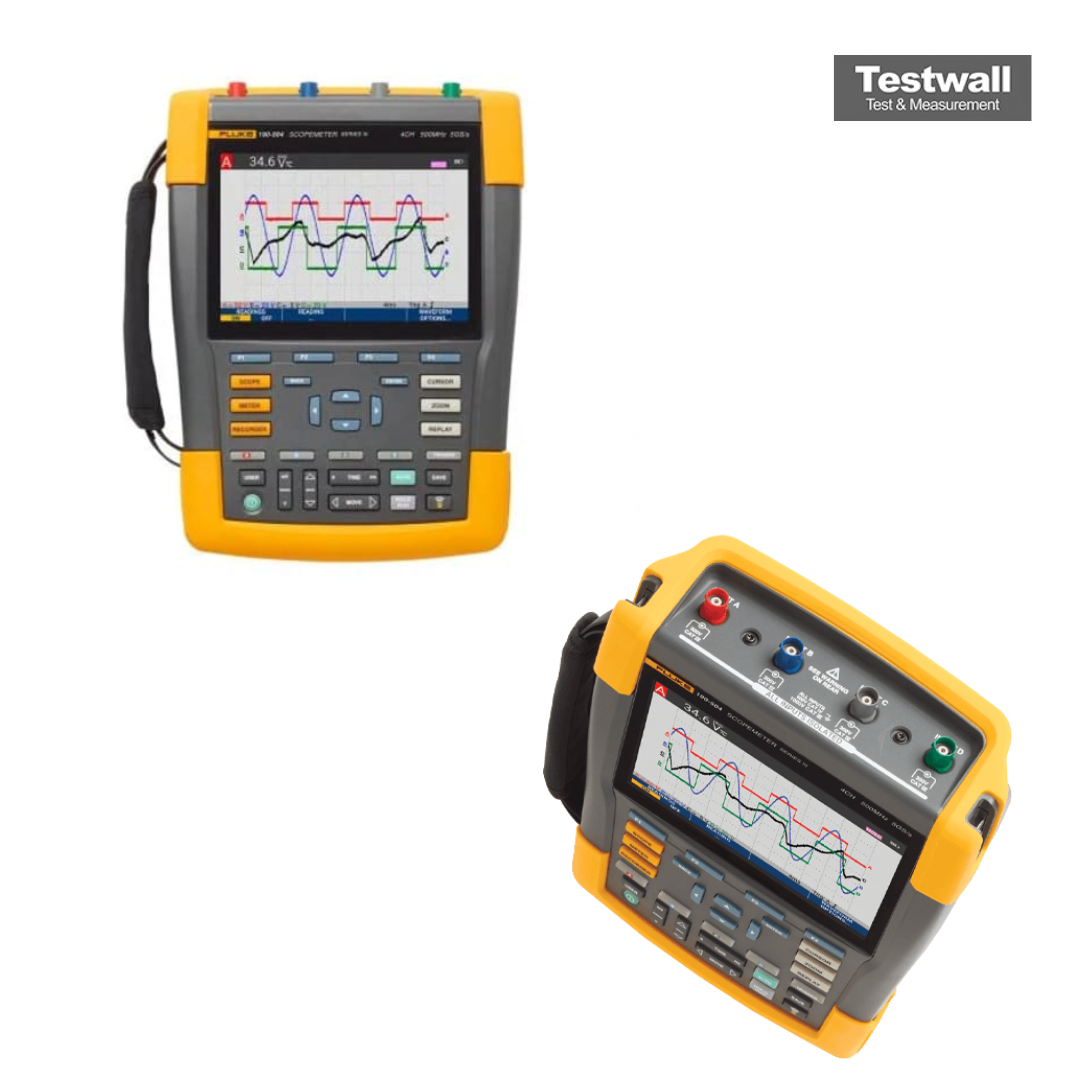

Fluke 190-504-III/S
| Attribut | Valeur |
|---|---|
| Nombre de canaux | 4 canaux isolés |
| Bande passante | 500 MHz |
| Fréquence d'échantillonnage | 2,5 GS/s |
| Résolution verticale | 8 bits |
| Tension d'entrée maximale | 1000 V CAT III / 600 V CAT IV |
| Mémoire d'enregistrement | 10 000 points par canal |
| Écran | Écran couleur LCD 9 cm (3,5 pouces) |
| Autonomie de la batterie | Jusqu'à 7 heures avec batterie rechargeable |
| Indice de protection | IP51 (résistant à la poussière et aux éclaboussures) |
| Normes de sécurité | CEI 61010-1, CEI 61010-2-030, CAT III 1000 V, CAT IV 600 V |
Fluke 190-504-III/S Options:
- 190-504-III/S - SCC293 - FlukeView-2 ScopeMeter Software package (full version) with CXT293 Carrying Case and WiFi dongle
- 190-504-III/S - BC190 - Mains adapter/battery charger
- 190-504-III/S - BP290 - Li-ion battery pack, 2500 mAh
- 190-504-III/S - BP291 - Li-ion battery pack, 5000 mAh
- 190-504-III/S - EBC290 - External battery charger for BP290 and BP291 (uses BC190 mains adapter)
- 190-504-III/S - CXT293 - Rugged Protective Carrying Case, IP67 rated
- 190-504-III/S - HH290 - Hanging Hook for 190 Series II and III instruments
- 190-504-III/S - VPS510-R - Electronic Voltage Probe set, 10:1, 500 MHz, one set red
- 190-504-III/S - VPS510-G - Electronic Voltage Probe set, 10:1, 500 MHz, one set grey
- 190-504-III/S - VPS510-B - Electronic Voltage Probe set, 10:1, 500 MHz, one set blue
- 190-504-III/S - VPS510-V - Electronic Voltage Probe set, 10:1, 500 MHz, one set green
- 190-504-III/S - VPS410-II-G - Industrial Voltage Probe set, 10:1, one set grey
- 190-504-III/S - VPS410-II-R - Industrial Voltage Probe set, 10:1, one set red
- 190-504-III/S - VPS410-II-B - Industrial Voltage Probe set, 10:1, one set blue
- 190-504-III/S - VPS410-II-V - Industrial Voltage Probe set, 10:1, one set green
- 190-504-III/S - VPS421-R - High working voltage ruggedized probe set, 100:1, 150 MHz, (bicolored, red/black)
- 190-504-III/S - VPS421-G - High working voltage ruggedized probe set, 100:1, 150 MHz, (bicolored, grey/black)
- 190-504-III/S - VPS421-B - High working voltage ruggedized probe set, 100:1, 150 MHz, (bicolored blue/black)
- 190-504-III/S - VPS421-V - High working voltage ruggedized probe set, 100:1, 150 MHz; (bicolored green/black)
- 190-504-III/S - MP1-MAGNET - PROBE 1–Magnet Probes for 4 mm banana, Set of 4
- 190-504-III/S - TL175 - TwistGuard™ safety designed test leads set (1 red, 1 black)
- 190-504-III/S - TRM50 - BNC Feedthrough 50 Ω terminator (set of 2 pieces, black)
- 190-504-III/S - AS400 - Probe Accessory Extension Set for VPS410-series probes
- 190-504-III/S - RS400 - Probe Accessory Replacement Set for VPS410-series probes
- 190-504-III/S - RS421 - Probe accessory replacement set for VPS421-series probes
- 190-504-III/S - RS500 - Probe Accessory Replacement Set for VPS500-series probes
| Model | 190-504-III/S |
|---|

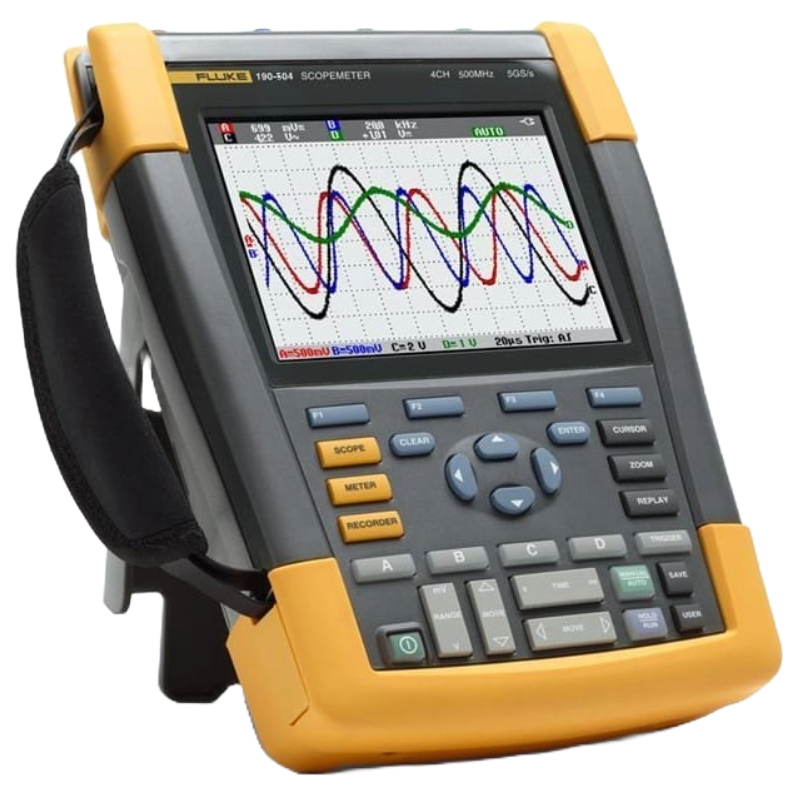

FLUKE 190-504-III/S Scopemeter
The Fluke 190-504-III/S Scopemeter is a high performance portable oscilloscope designed to diagnose, view, and capture complex waveforms, induced noise, intermittent events, signal fluctuations, or drift. This portable oscilloscope features a fast sampling rate of up to 5 GS/s, a 200 ps resolution, and deep memory of 10,000 samples per channel which provide high-accuracy capture and display of waveform details, noise, and other disturbances. Rugged and easy to use, this oscilloscope helps you to take on the challenges of installing, commissioning and maintaining industrial machinery, automation and process controls, and power conversion electronics with ease €” from DC to 500 MHz.
Fluke 190-504-III/S Scopemeter performs timing or amplitude related measurements on three phases or three-axis control systems, or simply compare and contrast multiple test points in a circuit under test. This scopemeter features TrendPlot ™ Paperless Recorder, ScopeRecord ™ Mode, Connect-and-View ™ Triggering and a unique 100-screen Replay functions which help you quickly diagnose issues to minimize repair costs and downtime. Fluke 190-504-III/S Scopemeter is having a large, bright color display for easy in-the-field viewing and both USB and Wi-Fi data download options for analyzing data. Connect-and-View triggering provides an instant, stable display without the need for adjusting settings.
Specifications for the FLUKE 190-504-III/S Scopemeter Include:
| Number of channels | 4 |
| Bandwidth | 500 MHz |
| Rise time | 0.7 ns |
| Maximum real time sample rate | 5 GS/s (single ch) or 2.5 GS/s (2ch) or 1.25 GS/s (4ch) |
