Fluke 5540A
| Attribut | Valeur |
|---|---|
| Plage de tension AC | Jusqu'à 1020 V AC |
| Plage de tension DC | Jusqu'à 1020 V DC |
| Plage de fréquence | 10 Hz à 500 kHz |
| Incertitude de tension AC | ± 0,03 % de la valeur nominale |
| Plage de résistance | 0 Ω à 30 MΩ |
| Plage de courant AC/DC | Jusqu'à 20 A AC/DC |
| Température de fonctionnement | 0 °C à 50 °C |
| Interface de communication | IEEE-488 (GPIB), RS-232 |
| Conformité aux normes | IEC/EN 61010-1, conforme aux normes d'étalonnage internationales |
| Alimentation électrique | 100 V à 240 V AC, 50/60 Hz |
| Model | 5540A |
|---|

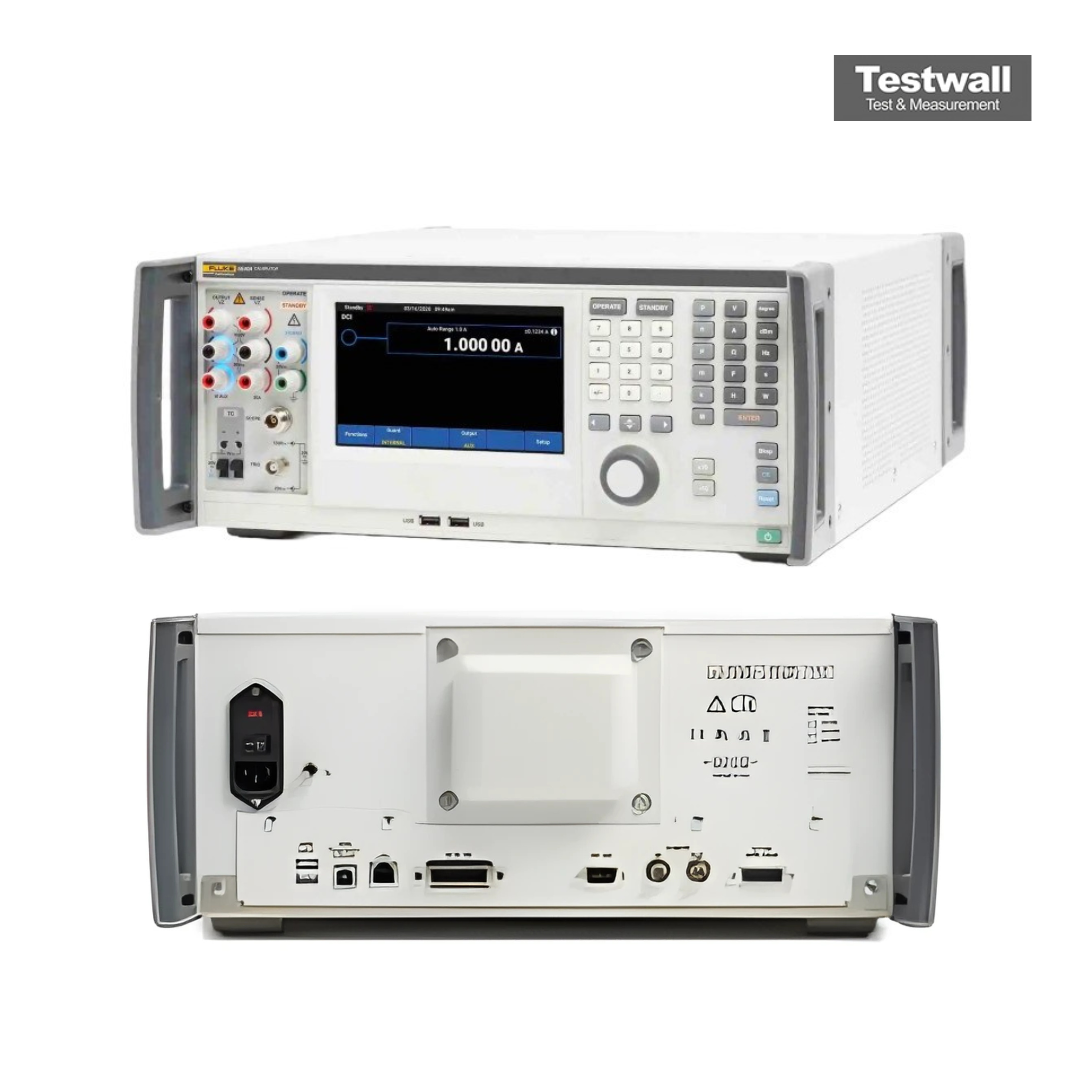

Fluke 5540A Multi-Product Calibrator

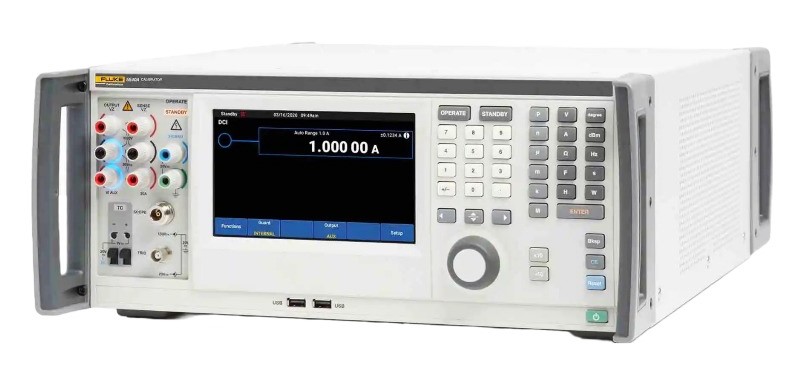

Fluke 5540A High-Performance Multi-Product Calibrator extends the capabilities of the 5502A Multi-Product Calibrator with better performance suited for on-site or mobile calibration, covering many of the most demanding field instrumentation workloads. It calibrates the most popular handheld digital multimeters with increased test uncertainty ratios (TURs) and clamp meters to 1500 A with continuous cur output. Fluke 5550A High-Performance Multi-Product Calibrator easily calibrates meters that measure AC/DC voltage, resistance and capacitance. This device features a 17.8 centimeter (7 inch) color touch screen with new graphical user interface providing an intuitive calibration experience.
Fluke 5540A High-Performance Multi-Product Calibrator features a cur range increase from 20 A to 30 A of continuous cur output, which reduces wait time during heavy usage. A range redesign enables it to calibrate existing handheld digital multimeters with greater confidence. A larger variety of thermocouple types and a new thermocouple connector enables easier connection and broadens the temperature workload coverage. With a 52120A amplifier and appropriate coil, the cur output can be increased to 6000A. Fluke 5550A High-Performance Multi-Product Calibrator features optional DMM AUTOCAL Adapter to calibrate digital multimeters with minimal-to-no lead changes. This Multi-Product Calibrator is also protected against expensive damage caused by incoming voltages or overload conditions.
Specifications for the Fluke 5540A Multi-Product Calibrator Include:
| Direct volts | 0 V to ± 1020 V |
| Direct current | 0 to ± 30.2 A |
| Alternating volts | 1 mV to 1020 V 3 Hz to 500 kHz |
| Alternating current | 10 μA to 30.2 A 3 Hz to 30 kHz |
