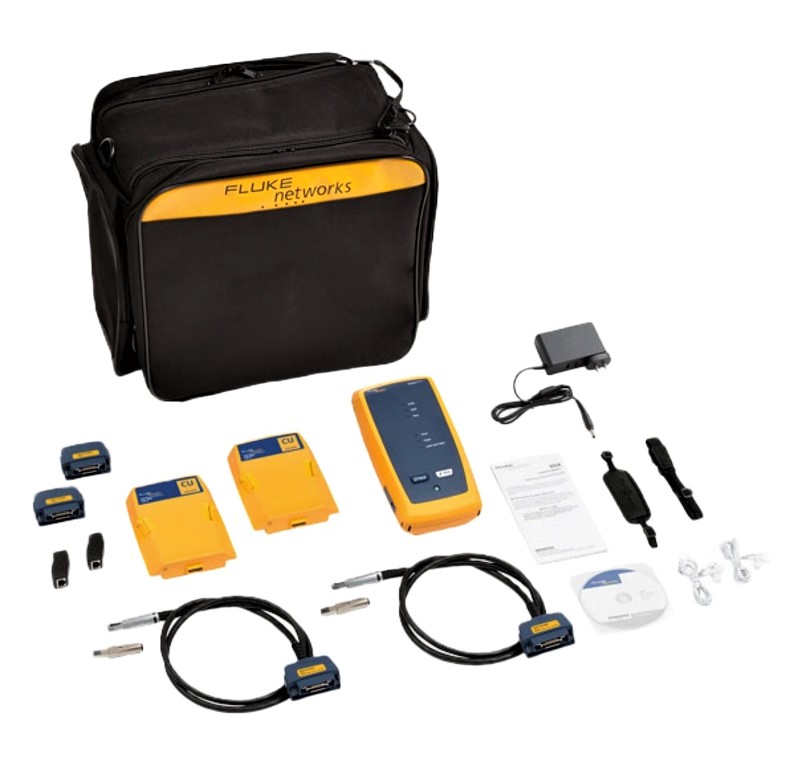

Fluke DSX2-8000
| Attribut | Valeur |
|---|---|
| Fréquence maximale de test | 2000 MHz |
| Catégorie de câble supportée | Catégorie 8 / Classe I et II |
| Précision de mesure | Niveau IV (Level IV) |
| Durée de test (câble Cat 6A) | 10 secondes |
| Capacité de mémoire | 10 000 résultats de test avec graphiques |
| Interface de communication | Wi-Fi, USB, Bluetooth |
| Écran | Écran tactile couleur LCD 5 pouces |
| Autonomie de la batterie | Jusqu'à 8 heures d'utilisation continue |
| Logiciel de gestion | Compatible LinkWare Live et LinkWare PC |
| Normes de test supportées | ISO/IEC 11801, ANSI/TIA-568, EN 50173 |
| Model | DSX2-8000 |
|---|

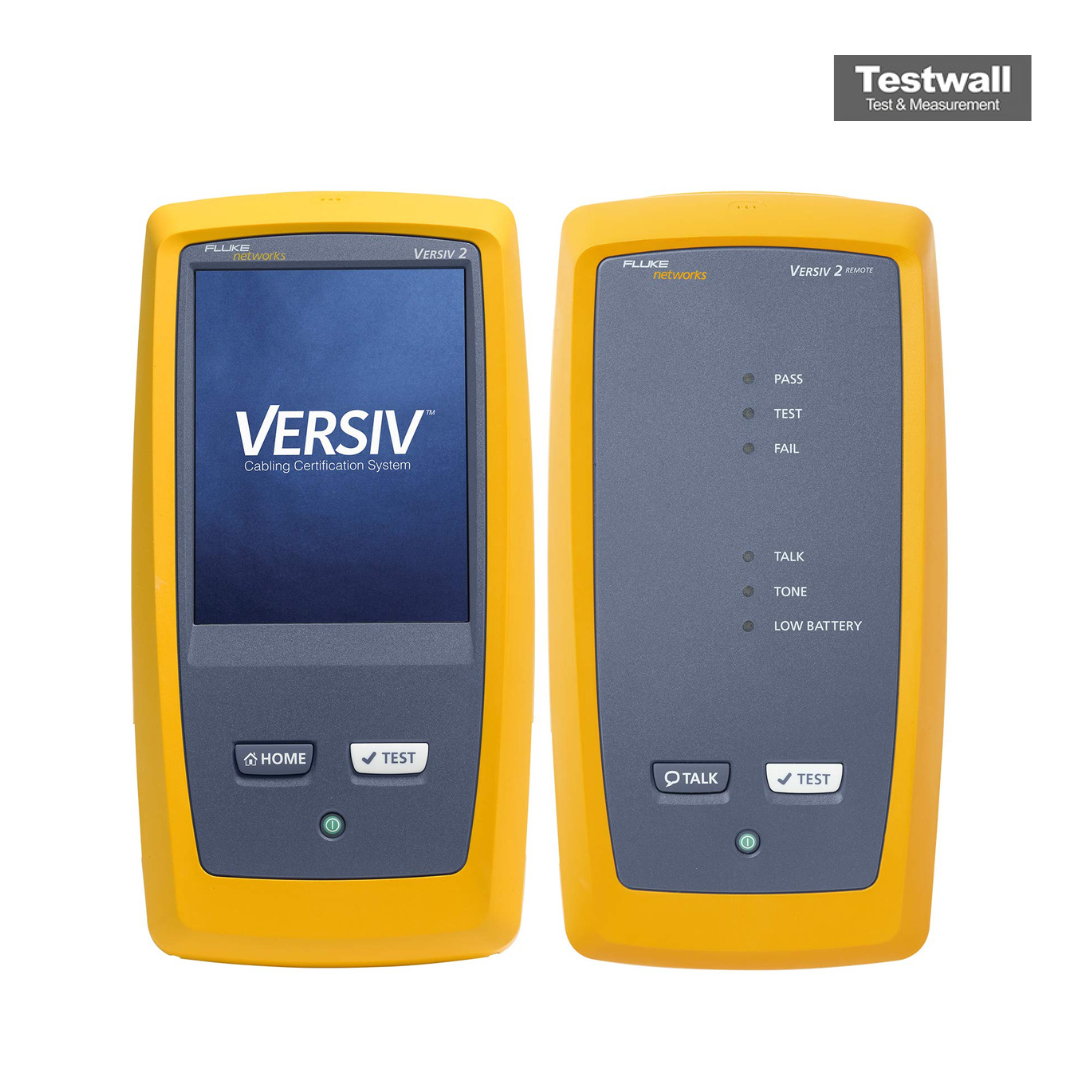

FLUKE DSX2-8000 Cable Analyzer/Certifier
The Fluke DSX2-8000 CableAnalyzer copper test solution enables testing and certification of twisted pair cabling for up to 40 Gigabit Ethernet deployments and will handle any cabling system whether it is a Cat 5e, 6, 6A, 8 or Class FA and I/II. Certifying a cable is one part of a process that starts with system design and ends with system acceptance. The DSX2-8000 certifies copper cabling, complies with all standards including Level VI/2G accuracy, making jobs easier to manage, and getting to system acceptance faster. It's not just for the expert technicians and Project Managers. Individuals of various skill levels can improve the set-up, operation, test reporting, and simultaneously manage diverse projects.
Fluke Networks' DSX2-8000 CableAnalyzer Series has obtained Intertek (ETL) verification in accordance with the ANSI/TIA-1152-A specification for Level 2G test equipment. r. The ProjX management system on the DSX CableAnalyzer Series provides individual project files for all job specific details to be saved under a simple name, eliminating the need to re-enter job specific details after starting a project. The capacitive Taptive user interface makes all jobs easily accessible from the menu screen. The DSX2-8000 reduces the time required to fix cabling faults with dedicated diagnostics, a simple 1 button test runs all tests and saves all data. The graphical results screen allows you to look down the cable to see exactly where any cross talk, return loss or shield faults are located on any given link.
Specifications for the FLUKE DSX2-8000 Cable Analyzer/Certifier Include:
| Maximum frequency | 2000 MHz |
| Speed of Autotest |
Category 6A/Class EA: 8 seconds. Category 8: 16 seconds |
| Delay Skew Range | 0 ns to 100 ns |
| DC Loop Resistance Test Range | 0 Ω to 540 Ω |
