Fluke OFP-100-M
| Attribut | Valeur |
|---|---|
| Longueurs d'onde prises en charge | 850 nm, 1300 nm, 1310 nm, 1550 nm |
| Type de fibre optique | Multimode et monomode |
| Plage de puissance optique | -60 dBm à +10 dBm |
| Précision de mesure | ±0,2 dB |
| Connecteurs compatibles | SC, ST, LC, FC (via adaptateurs) |
| Autonomie de la batterie | Jusqu'à 200 heures de fonctionnement continu |
| Affichage | Écran LCD rétroéclairé |
| Plage de température de fonctionnement | -10 °C à +50 °C |
| Normes de conformité | IEC 61010-1, CE |
| Dimensions et poids | 175 mm x 85 mm x 38 mm, 340 g (avec piles) |
Fluke OFP-100-M Options:

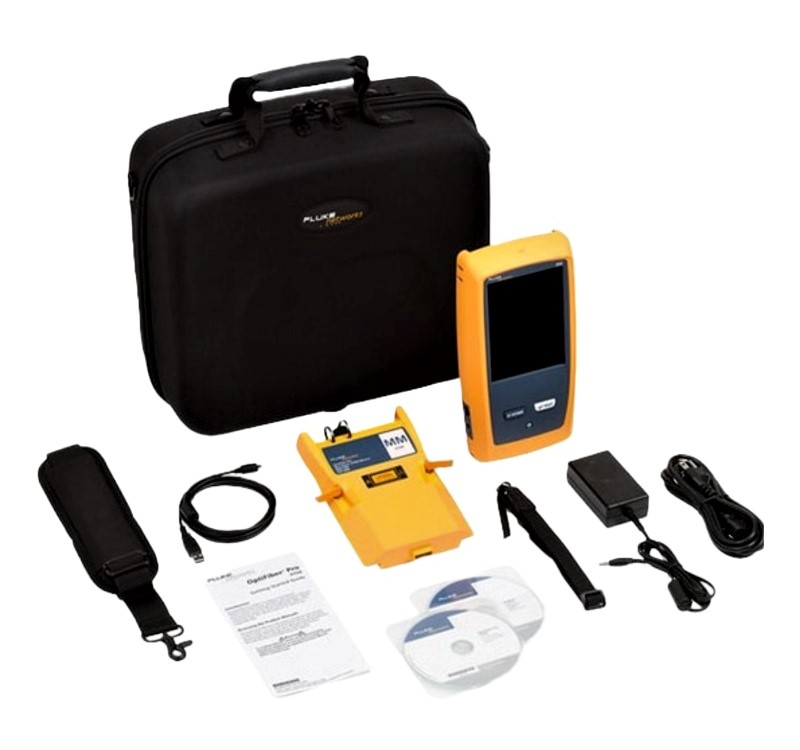

- OFP-100-M - OFP-100-M - OptiFiber Pro Multimode OTDR kit
- OFP-100-M - OFP-100-MI - OptiFiber Pro Multimode OTDR with inspection kit
- OFP-100-M - OFP-100-S - OptiFiber Pro Singlemode OTDR kit
- OFP-100-M - OFP-100-SI - OptiFiber Pro Singlemode OTDR with inspection kit
- OFP-100-M - OFP-100-Q - OptiFiber Pro Quad OTDR kit
- OFP-100-M - OFP-100-QI - OptiFiber Pro Quad OTDR with inspection kit
- OFP-100-M - OFP-MM - OptiFiber Pro Multimode OTDR module
- OFP-100-M - OFP-SM - OptiFiber Pro Singlemode OTDR module
- OFP-100-M - OFP-QUAD - OptiFiber Pro Quad OTDR module
- OFP-100-M - OFP-FI - DI-1000 Inspector with selective bulkhead and video probe tip set FI1000-TIP-KIT
- OFP-100-M - TFS - TFS mainframe with battery
| Model | OFP-100-M |
|---|

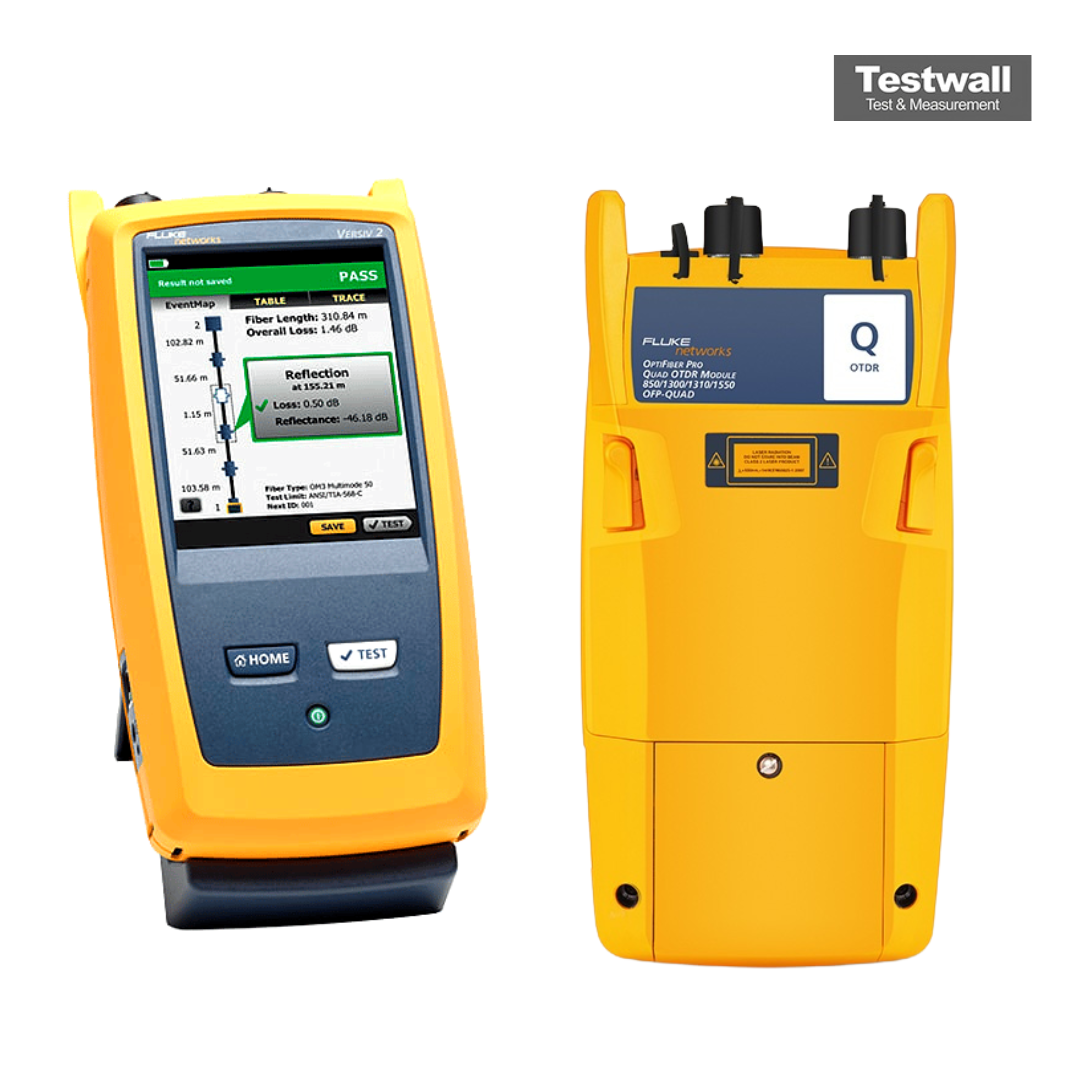

FLUKE OFP-100-M Optifiber Pro Multimode OTDR Kit
With its simple smartphone user interface and powerful feature set, the Fluke OptiFiber Pro turns anyone into an efficient and expert premise fiber troubleshooter or installer. The Fluke OptiFiber Pro leverages the most sophisticated optical technology to provide the shortest event dead zone (0.5 m typical for MM) and attenuation dead zone (2.2 m typical for MM and 3.6 m typical for SM) of any OTDR. Leveraging the popular and multi-featured LinkWare cable test management software application, OptiFiber Pro users can easily access the hassle-free project management, report generation, and software upgrade capabilities to manage workflow and consolidate test results.
Another breakthrough with the Fluke OptiFiber Pro is the data acquisition speed. While in Quick Test mode, a complete set of data is acquired in as little as two seconds per wavelength. OptiFiber Pro then analyzes the data and displays it as an EventMap event, Table or Trace. The end result is less time spent testing and more time performing other tasks. With a simple one-touch selection, users enter DataCenter OTDR mode €“ without setup time for fine tuning as needed in legacy OTDRs. DataCenter OTDR mode automatically detects OTDR parameters €“ end-detection algorithms, pulse widths, etc €“ without getting confused by the short links or number of connectors. The Fluke OptiFiber Pro is the industry's first purpose-built OTDR that meets the unique challenges of an enterprise fiber infrastructure.
Features of the FLUKE OFP-100-M Optifiber Pro Multimode OTDR Kit Include:
- Accelerate fiber certification with trace times as short as two seconds in Quick Test mode
- Maximize efficiency with a smartphone user interface that allows anyone to perform expert fiber troubleshooting and certification
- Quickly test datacenter fiber with pre-programmed settings
- Troubleshoot datacenter fiber links with short patch cables and many connectors
- Easily characterize all connectors, splices and areas of high loss with graphical EventMap ™ view
- Increase return on investment by enabling OTDR project sharing among users and diffe jobs
- Reduce network downtime by quickly and precisely identifying faults on all fiber types
- Facilitate results reporting and management with integrated LinkWare ™ software to generate detailed and standards compliant reports
