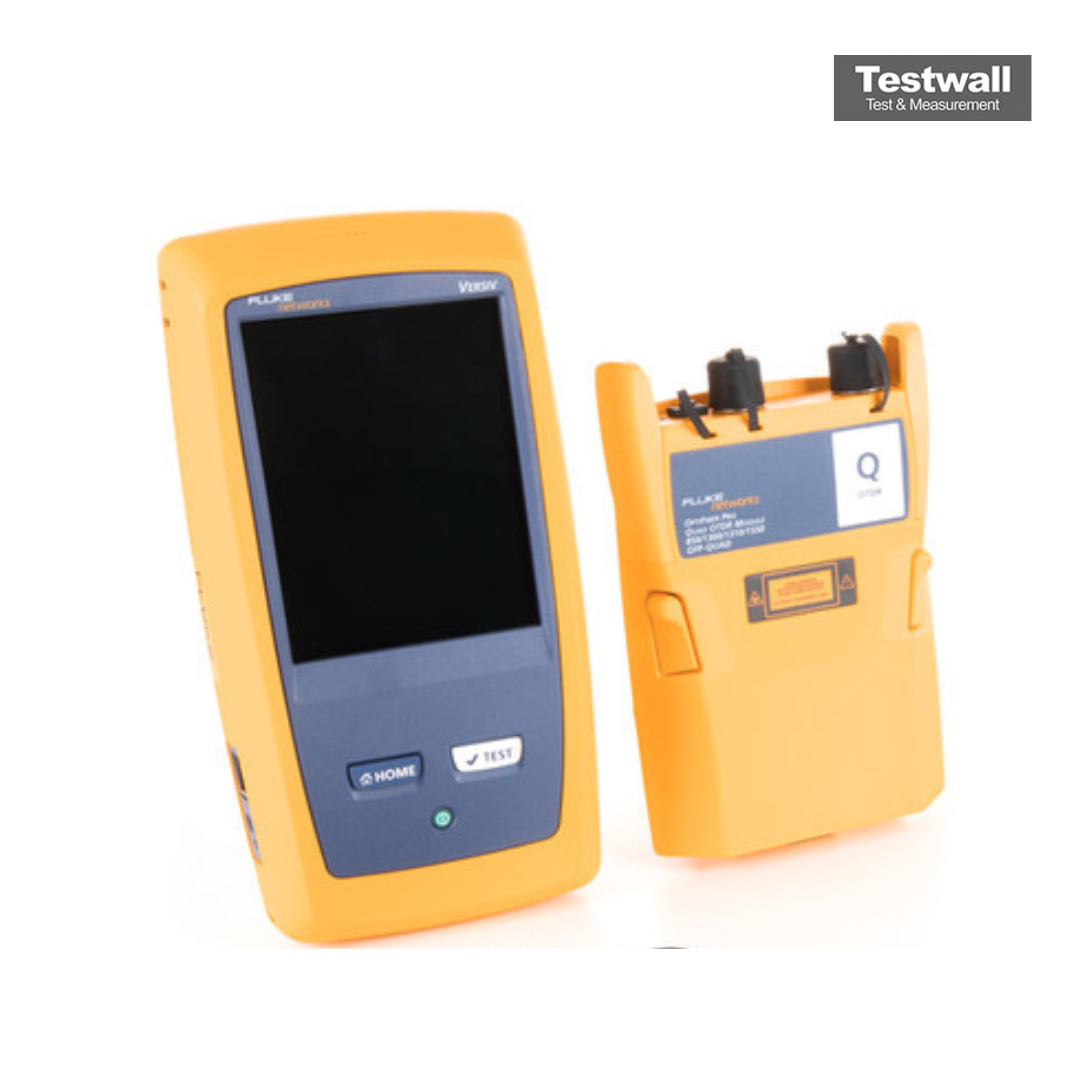

Fluke OFP-100-Q
| Attribut | Valeur |
|---|---|
| Type de source lumineuse | VCSEL 850/1300 nm |
| Plage de longueurs d'onde | 850 nm et 1300 nm (multimode) |
| Type de connecteur | SC/ST/LC (adaptateurs interchangeables) |
| Plage de puissance optique | -60 dBm à +3 dBm |
| Précision de mesure | ±0,2 dB |
| Type de fibre compatible | Fibre optique multimode (OM1, OM2, OM3, OM4) |
| Autonomie de la batterie | Jusqu'à 150 heures en utilisation continue |
| Affichage | Écran LCD rétroéclairé |
| Certification et conformité | CE, conforme aux normes IEC 61010-1 |
| Plage de température de fonctionnement | -10 °C à +50 °C |
| Model | OFP-100-Q |
|---|

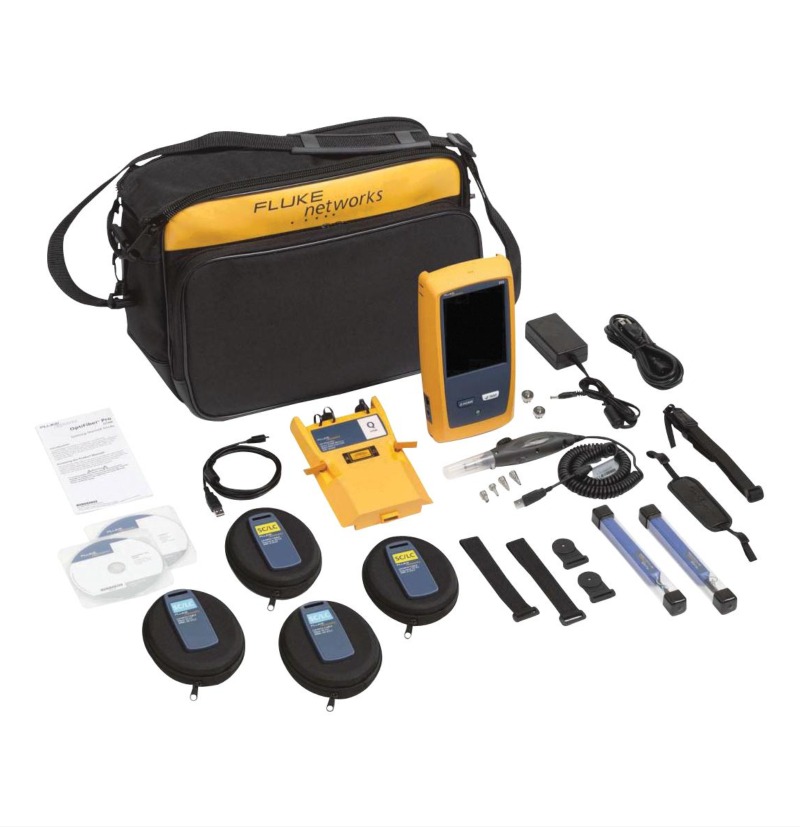

FLUKE OFP-100-Q OptiFiber Pro Quad OTDR Kit
With its simple smartphone user interface and powerful feature set, the Fluke OFP-100-Q turns anyone into an efficient and expert premise fiber troubleshooter or installer. The Fluke OFP-100-Q leverages the most sophisticated optical technology to provide the shortest event dead zone (0.5 m typical for MM) and attenuation dead zone (2.2 m typical for MM and 3.6 m typical for SM) of any OTDR. Leveraging the popular and multi-featured LinkWare cable test management software application, OptiFiber Pro users can easily access the hassle-free project management, report generation, and software upgrade capabilities to manage workflow and consolidate test results.
Another breakthrough with the Fluke OFP-100-Q is the data acquisition speed. While in Quick Test mode, a complete set of data is acquired in as little as two seconds per wavelength. OptiFiber Pro then analyzes the data and displays it as an EventMap event, Table or Trace. The end result is less time spent testing and more time performing other tasks. With a simple one-touch selection, users enter DataCenter OTDR mode €“ without setup time for fine tuning as needed in legacy OTDRs. DataCenter OTDR mode automatically detects OTDR parameters €“ end-detection algorithms, pulse widths, etc €“ without getting confused by the short links or number of connectors. The Fluke OFP-100-Q is the industry's first purpose-built OTDR that meets the unique challenges of an enterprise fiber infrastructure.
Specifications for the FLUKE OFP-100-Q OptiFiber Pro Quad OTDR Kit Include:
| Wavelengths | 850 nm +/- 10 nm, 1300 nm +35/-15 nm, 1310 nm +/- 25 nm, 1550 nm +/- 30 nm |
| Sample Resolution | 3 cm - 400 cm |
| Max Distance Range Setting | MM 40 km / SM 130 km |
| Quick Test Time Setting | MM 2 sec (typical) SM 5 sec (typical) |
