Fluke TI40FT-20
| Attribut | Valeur |
|---|---|
| Plage de température | -20°C à 120°C |
| Résolution thermique (NETD) | ≤ 0,05°C à 30°C |
| Résolution de l'image infrarouge | 160 x 120 pixels |
| Précision de mesure | ±2°C ou ±2% de la valeur mesurée |
| Champ de vision (FOV) | 25° x 19° |
| Fréquence d'images | 9 Hz |
| Caméra visuelle intégrée | Oui, 2 mégapixels |
| Écran | LCD 3,5 pouces |
| Autonomie de la batterie | Jusqu'à 4 heures d'utilisation continue |
| Indice de protection | IP54 (résistant à la poussière et aux éclaboussures) |
| Model | TI40FT-20 |
|---|

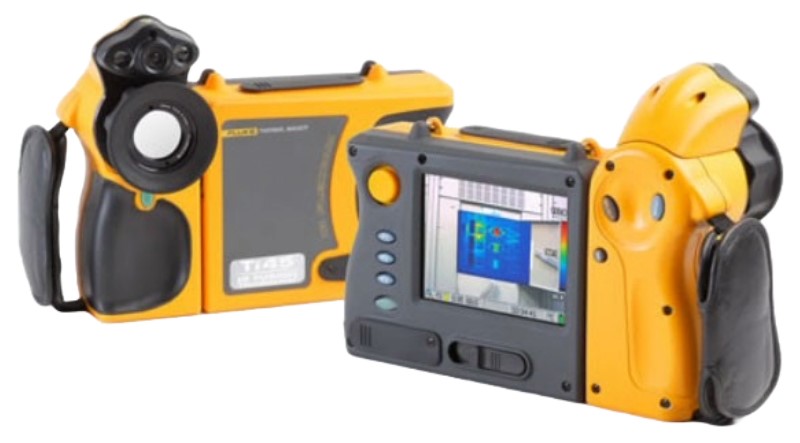

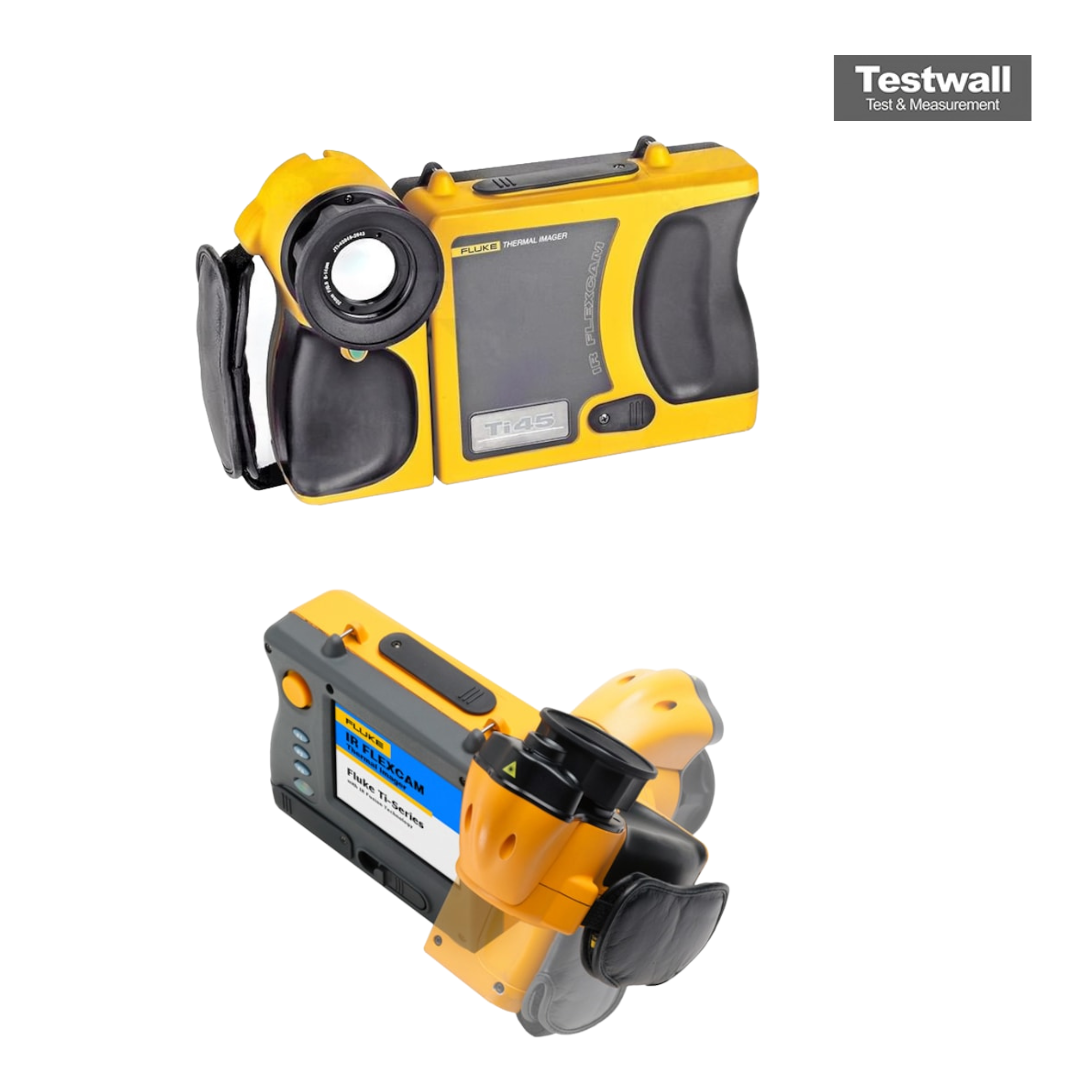

FLUKE TI40FT-20 IR Flexcam Thermal Imager
The Fluke TI40FT-20 IR Flexcam Thermal Imager is a handheld thermal imager designed for industrial and maintenance applications. With a 160 x 120 detector and a temperature sensitivity down to 0.08 °C (80mK) (NETD) TI40FT-20 IR Flexcam delivers high resolution images where even the smallest temperature differences can be seen. The units are extremely easy to use through the Windows ® CE menu structure and offer an extended troubleshooting feature set to allow on the spot analysis in the field. Fluke TI40FT-20 IR Flexcam Thermal Imager can save over 1000 infrared images and corresponding temperature data on CompactFlash memory cards for later review and reporting.
Fluke TI40FT-20 IR Flexcam Thermal Imager features the innovative IR-Fusion ® technology. IR-Fusion captures a visible light image in addition to the infrared image and takes the mystery out of IR image analysis. It helps to better identify and report suspect components and enable the repair to be done right the first time. Fluke TI40FT-20 IR Flexcam Thermal Imager is a versatile tool for various industrial tasks such as Predictive maintenance, Industrial maintenance, Quality control, and Process monitoring. Built-in features like laser pointer, spot temperature measurement, and emissivity correction enhance on the spot analysis capabilities.
Specifications for the FLUKE TI40FT-20 IR Flexcam Thermal Imager Include:
| Field of view (FOV) | 20 mm lens 23 ° x 17 °, 10.5 mm lens 42 ° x 32 °, 54 mm lens 9 ° x 6 ° |
| Spatial resolution (IFOV) | 2.60 mrad |
| Min focus distance | 0.15 m |
| Visible light camera | 1280 x 1024 pixels, full color |
