Fluke VT04
| Attribut | Valeur |
|---|---|
| Plage de température | -10 °C à 250 °C (14 °F à 482 °F) |
| Précision de la température | ±2 °C ou ±2 % (la valeur la plus élevée est retenue) |
| Résolution de l'affichage | 0,1 °C / 0,1 °F |
| Émissivité | Fixe à 0,95 |
| Détecteur infrarouge | Thermopile infrarouge |
| Rapport distance/point de mesure | 10:1 |
| Affichage | Écran LCD avec rétroéclairage |
| Alimentation | 2 piles AAA |
| Indice de protection | IP40 |
| Température de fonctionnement | 0 °C à 50 °C (32 °F à 122 °F) |
Fluke VT04 Options:
- VT04 - FLK-VT04-CHARGER - Replacement Charger for VT04
- VT04 - FLK-VT04-BATTERY - Replacement Battery for VT04
- VT04 - FLK-VT04-HARD CASE - Hard Case for Visual IR Thermometers
- VT04 - C90 - Soft Case for DMMs and Visual IR Thermometers
- VT04 - FLK-VT04-MAINT-KIT - Includes a VT04 Visual IR Thermometer and a 1507 Insulation Multimeter
- VT04 - FLK-VT04-HVAC-KIT - Includes a VT04 Visual IR Thermometer, 902 True-rms HVAC Clamp Meter and a 116 Digital Multimeter
- VT04 - FLK-VT04-ELEC-KIT - Includes a VT04 Visual IR Thermometer, a 117 Electricians Multimeter and a 376 AC/DC True-rms Clamp Meter
| Model | VT04 |
|---|

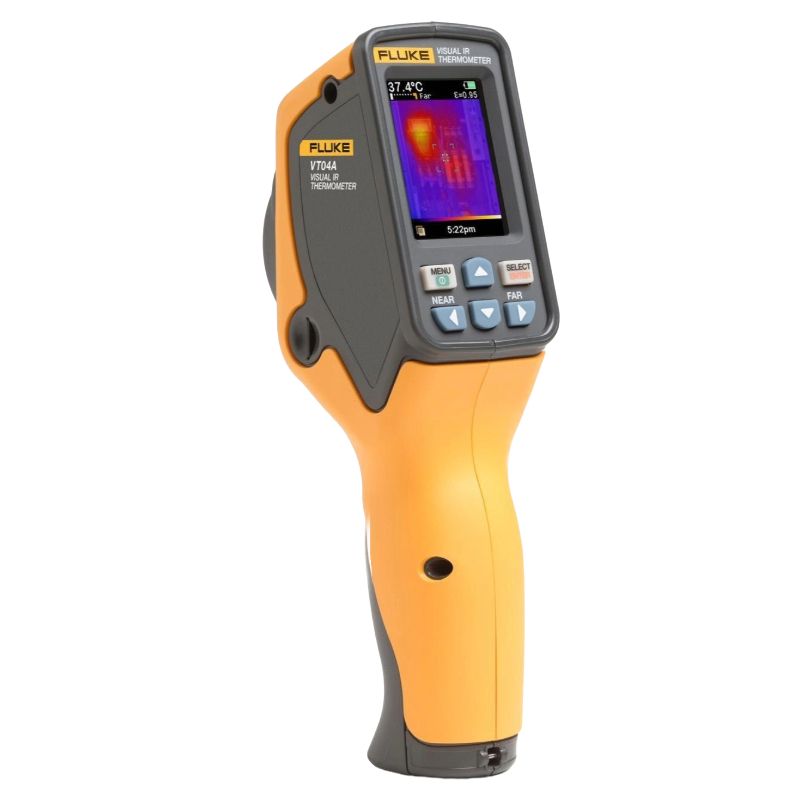

FLUKE VT04 Visual IR Thermometer
The Fluke VT04 Visual IR Thermometer is a compact and user friendly vissual infrared thermometer designed to help users identify and troubleshoot temperature issues quickly and easily. Fluke VT04 has a built-in digital camera with a thermal heat map overlay to detect hot and cold spots instantly. The VT04 Visual IR Thermometer eliminates the tedious task of recording multiple measurements manually. You can easily identify the exact location of the potential issue by blending the two at 0%, 25%, 50%, 75%, and 100% infrared with one button.
The Fluke VT04 Visual IR Thermometer offers a temperature measurement range of -10 °C to +250 °C suitable for a wide variety of applications. Fluke VT04 features automatic hot and cold spot tracker and temperature alarms which highlight the hottest and coldest areas in the image, ensuring you do not miss critical temperature variations. Fluke VT04 Visual IR Thermometer can store up to 10,000 images per Gb on included SD card and make professional reports on included professional software.
Specifications for the FLUKE VT04 Visual IR Thermometer Include:
| Field of view | 28 ° x 28 ° |
| Temperature measurement range | -10 °C to +250 °C (14 °F to 482 °F) |
| Temperature measurement accuracy | ±2 °C or ±2% |
| Infrared spectral band | 6.5 μm to 14 μm |
