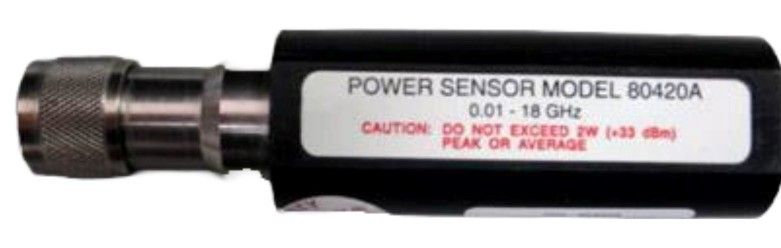

Gigatronics 80420A
Power Sensor, 10 MHz - 18 GHz, +30 to -57 dBm, 1W
10 MHz à 20 GHz Plage de fréquences
-110 dBm à +20 dBm Plage de puissance de sortie
1 Hz Résolution de fréquence
±1,0 dB Précision de niveau de sortie
AM, FM, Modulation d'impulsion Modulation
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 10 MHz à 20 GHz |
| Plage de puissance de sortie | -110 dBm à +20 dBm |
| Résolution de fréquence | 1 Hz |
| Précision de niveau de sortie | ±1,0 dB |
| Modulation | AM, FM, Modulation d'impulsion |
| Harmoniques | -30 dBc typique |
| Interface de commande | GPIB (IEEE-488) |
| Alimentation électrique | 115/230 V CA, 50/60 Hz |
| Connecteur de sortie RF | Type N femelle |
| Dimensions | Format rack 19 pouces, 2U |
Gigatronics 80420A Options:
- 80420A - 01 - Rack mount kit
- 80420A - 03 - 8651A Rear Panel Sensor and Calibrator Connections
- 80420A - 04 - 8652A Rear Panel Sensor and Calibrator Connections
- 80420A - 05 - Soft Carry Case
- 80420A - 07 - Side Mounted Carrying Handle
- 80420A - 08 - Transit Case, (Includes Soft Carry Case)
- 80420A - 09 - Dual Rack Mount Kit (with assembly instructions)
- 80420A - 10 - Dual Rack Mount Kit (factory assembled)
- 80420A - 12 - 1 GHz, 50 MHz Switchable Calibrator
- 80420A - 13 - 8651A Rear Panel Input Connector
- 80420A - 14 - 8652A Rear Panel Input Connectors
| Model | 80420A |
|---|
The Gigatronics 80420A Modulated Power Sensor lets you measure the average power of amplitude modulated, burst modulated and other complex modulated signals, such a TDMA signals, at bandwidths up to 40 kHz.
Features and Specifications of the Gigatronics 80420A Power Sensor include:
- Frequency Range: 10 MHz - 18 GHz
- Power Range: -57 dBm to +30 dBm
- Max Power: +30 dBm (1 W)
- Power Linearity: -57 to -10 dBm: ±0.00 dB | -10 to +30 dBm: ±0.05 dB/10dB
- RF Connector type: K(m)
- VSWR:
- 1.11: 0.01-2GHz
- 1.12: 2-12GHz
- 1.18: 12-18GHz
