Keysight (Agilent) 1130A
Differential Probe Amp, 1.5 GHz
1,5 GHz Bande passante
Sonde différentielle active Type de sonde
±8 V (crête) Tension d'entrée différentielle maximale
±15 V (continu) Tension en mode commun maximale
100 kΩ en parallèle avec 1,4 pF Impédance d'entrée
| Attribut | Valeur |
|---|---|
| Bande passante | 1,5 GHz |
| Type de sonde | Sonde différentielle active |
| Tension d'entrée différentielle maximale | ±8 V (crête) |
| Tension en mode commun maximale | ±15 V (continu) |
| Impédance d'entrée | 100 kΩ en parallèle avec 1,4 pF |
| Facteur d'atténuation | 10:1 |
| Tension de bruit | 2 mV (crête à crête typique) |
| Temps de montée | 233 ps (typique) |
| Alimentation requise | Alimentée par l'oscilloscope via connecteur d'accessoire |
| Compatibilité | Compatible avec les oscilloscopes Keysight des séries InfiniiVision et Infiniium |
Keysight (Agilent) 1130A Options:
- 1130A - N2803A - 30 GHz InfiniiMax III probe amplifier
- 1130A - N2802A - 25 GHz InfiniiMax III probe amplifier
- 1130A - N7003A - 20 GHz InfiniiMax III+ probe amplifier
- 1130A - N2801A - 20 GHz InfiniiMax III probe amplifier
- 1130A - N7002A - 16 GHz InfiniiMax III+ probe amplifier
- 1130A - N7001A - 13 GHz InfiniiMax III+ probe amplifier
- 1130A - N2832A - 13 GHz InfiniiMax III+ probe amplifier
- 1130A - N7000A - 8 GHz InfiniiMax III+ probe amplifier
- 1130A - N2831A - 8 GHz InfiniiMax III+ probe amplifier
- 1130A - N2830A - 4 GHz InfiniiMax III+ probe amplifier
- 1130A - N2848A - InfiniiMax III QuickTip probe head
- 1130A - N2849A - QuickTip tips (set of 4)
- 1130A - N5445A - InfiniiMax III browser head
- 1130A - N5476A - Replacement probe tips for N5445A (set of 4)
- 1130A - N5439A - InfiniiMax III ZIF probe head
- 1130A - N2838A - PC board ZIF (450 Ω) tips, set of 5 with plastic sporks
- 1130A - N5440A - Ceramic ZIF (450 Ω) tips, set of 5 with plastic sporks
- 1130A - N5447A - Ceramic ZIF (200 Ω) tips, set of 5 with plastic sporks
- 1130A - N5444A - InfiniiMax III 2.92 mm/3.5 mm/SMA probe head
- 1130A - N5448B - Cable assembly, coax phase matched pair, 25 cm, 2.92 mm (m) to 2.92 mm (m)
- 1130A - N2823A - Cable assembly, coax phase matched pair, 1 m, 2.92 mm (m) to 2.92 mm (m)
- 1130A - N5441A - InfiniiMax III 16 GHz solder-in probe head
- 1130A - N2836A - InfiniiMax III 26 GHz solder-in probe head
- 1130A - N2835A - InfiniiMax III/III+ differential connectivity kit
- 1130A - N5442A - Precision BNC adapter (50 Ω)
- 1130A - N5449A - High impedance probe adapter (includes one N2873A 500 MHz 10:1 passive probe)
- 1130A - N5477A - Sampling scope adapter for InfiniiMax III amp with Keysight 86100C DCA-J
- 1130A - N1022B - Probe adapter for InfiniiMax III+ amp with 86100C DCA-J sampling scope
- 1130A - N5443A - Performance verification and deskew fixture for InfiniiMax III and III+ > 13 GHz
- 1130A - E2655C - Performance verification and deskew fixture for InfiniiMax III+ <=13 GHz and InfiniiMax I/II
- 1130A - N5446A-001 - 16 to 20 GHz bandwidth upgrade (InfiniiMax III only)
- 1130A - N5446A-002 - 20 to 25 GHz bandwidth upgrade (InfiniiMax III only)
- 1130A - N5446A-003 - 25 to 30 GHz bandwidth upgrade (InfiniiMax III only)
- 1130A - N5446A-004 - 16 to 25 GHz bandwidth upgrade (InfiniiMax III only)
- 1130A - N5446A-005 - 16 to 30 GHz bandwidth upgrade (InfiniiMax III only)
- 1130A - N5446A-006 - 20 to 30 GHz bandwidth upgrade (InfiniiMax III only)
- 1130A - N2787A - 3D probe positioner for hands-free probing
- 1130A - N5450B - Extreme temperature extension cable, 1 m long
- 1130A - N2812A - High performance input cable, 2.92 mm connectors, 1 m length
- 1130A - 1169B - 12 GHz (spec) 13 GHz (typical) InfiniiMax II probe amplifier
- 1130A - 1168B - 10 GHz InfiniiMax II probe amplifier
- 1130A - N5380B - Hi-BW differential SMA probe head (InfiniiMax II)
- 1130A - N5381B - Hi-BW differential solder-in probe head (InfiniiMax II)
- 1130A - N5425B - ZIF solder-in probe head (InfiniiMax II)
- 1130A - N5426A - ZIF tip kit
- 1130A - N5451A - 9 GHz/5 GHz long-wire ZIF tip
- 1130A - N2884A - ZIF tip for N5425B
- 1130A - N2851A - QuickTip head for InfiniiMax I/II
- 1130A - N2839A - Hi-BW differential browser head (InfiniiMax II)
- 1130A - N2833A - InfiniiMax II differential connectivity kit
- 1130A - E2677B - 12 GHz differential solder-in probe head (InfiniiMax I/II)
- 1130A - E2678B - Differential socket probe head (InfiniiMax I/II)
- 1130A - E2675B - 6 GHz differential browser – wide span (InfiniiMax I/II)
- 1130A - E2679B - 6 GHz single-ended solder-in probe head (InfiniiMax I/II)
- 1130A - E2676B - 6 GHz single-ended browser (InfiniiMax I/II)
| Model | 1130A |
|---|

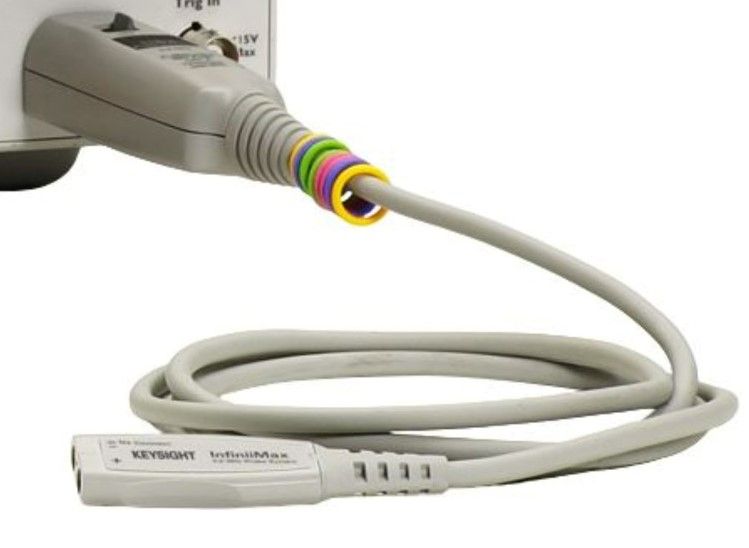

For high-speed differential or single-ended probing in embedded designs, the Agilent / HP1130A Differential Probe Amplifier is a perfect complement to the Infiniium 600 MHz €“ 1 GHz and InfiniiVision 500 MHz - 1 GHz oscilloscopes. Its extremely low input capacitance, flat frequency response and the patented resistor probe tip technology provide ultra low loading of the DUT and superior signal fidelity. The E2675A differential browser kit (ordered separately) is recommended for the 1130A with its variable spacing between probe tips with full z-axis compliance, which improves the usability/versatility of the probe.
Features and Specifications of the Agilent / HP 1130A Differential Probe Amplifier include:
- Bandwidth: 1.5 GHz
- Range:
- Dynamic Range: +/- 2.5V
- DC Offset Range: +/- 12V when probing single-ended
- Maximum Input Voltage: 30V peak
- Input Impedance:
- Differential Input R: 50 kOhm
- Differential Input C: 0.27-0.34 pF
- Single Ended Input R: 25 kOhm
- Single Ended Input C: 0.44-0.67 pF
