Keysight (Agilent) 1134B
| Attribut | Valeur |
|---|---|
| Largeur de bande passante | 7 GHz |
| Temps de montée | 50 ps |
| Facteur d'atténuation | 10:1 |
| Impédance d'entrée | 50 Ω |
| Tension d'entrée maximale | ±40 V (DC + crête AC) |
| Capacité d'entrée | 0,7 pF |
| Longueur du câble | 1,2 m |
| Compatibilité | Oscilloscopes Keysight série Infiniium |
| Type de connecteur | SMA mâle |
| Plage de température de fonctionnement | 0 °C à 55 °C |
Keysight (Agilent) 1134B Options:
- 1134B - E2655C - Probe deskew and performance verification kit (13 GHz)
- 1134B - E2668B - InfiniiMax I connectivity kit for single-ended measurements (E2676B/77B/78B)
- 1134B - E2669B - InfiniiMax I connectivity kit for diff/single-ended measurements (E2675B/77B/78B)
- 1134B - E2675B - Differential browser head (6 GHz)
- 1134B - E2676B - Single-ended browser probe head (6 GHz)
- 1134B - E2677B - Differential solder-in head (12 GHz)
- 1134B - E2678B - Differential/single-ended socketed probe head (12 GHz)
- 1134B - E2679B - Single-ended solder-in probe head (6 GHz)
- 1134B - MX0100A-001 - Micro probe head (set of 5), supports InfiniiMode (25 GHz)
- 1134B - MX0100A-002 - Micro probe head (set of 25), supports InfiniiMode (25 GHz)
- 1134B - MX0100A-003 - Micro probe head (set of 50), supports InfiniiMode (25 GHz)
- 1134B - MX0102A - Soldering Tool Kit
- 1134B - MX0103A - Bullet adapter (25 GHz)
- 1134B - MX0104A - Performance verification and deskew fixture (40 GHz)
- 1134B - MX0105A - SMA probe head, supports InfiniiMode (20 GHz)
- 1134B - MX0106A - Solder-in probe head, supports InfiniiMode (23 GHz)
- 1134B - N2787A - 3D probe positioner
- 1134B - N2823A - 2.92 mm phase-matched cable pair (1 m) (40 GHz)
- 1134B - N2833A - InfiniiMax II differential connectivity kit (N2839A, N5381B, N5425B/26A, N2851A/49A)
- 1134B - N2837A - Browser head replace tip kit (set of 40) (21 GHz)
- 1134B - N2839A - Browser head (21 GHz)
- 1134B - N2849A - QuickTip probe head tips (13 GHz)
- 1134B - N2851A - QuickTip probe head (13 GHz)
- 1134B - N2852A - AutoProbe II to AutoProbe III interface adapter (for use with UXR 1- and 1.85-mm models)
- 1134B - N2880A - Coaxial attenuator kit (pairs of 6, 12, and 20 dB attenuators)
- 1134B - N2881A - DC blocking caps (set of 2 30-VDC block caps)
- 1134B - N2884A - ZIF fine wire tips for wafer probing (12 GHz)
- 1134B - N2887B - Soft touch pro probe interface adapter (4 GHz)
- 1134B - N2888A - Soft touch half-channel probe interface adapter (4 GHz)
- 1134B - N5380B - SMA probe head (12 GHz)
- 1134B - N5381B - Solder-in probe head (12 GHz)
- 1134B - N5425B - ZIF probe head (18 GHz)
- 1134B - N5426A - ZIF tip (set of 10) (18 GHz)
- 1134B - N5442A - AutoProbe I to AutoProbe II interface adapter (3.5 mm to precision BNC adapter)
- 1134B - N5448B - 2.92 mm phase-matched cable pair (25 cm) (40 GHz)
- 1134B - N5450B - Extreme temperature extension cable, 1 m long
- 1134B - N5451A - Long-wired ZIF tip kit (7 and 11 mm) (5 & 9.9 GHz)
| Model | 1134B |
|---|

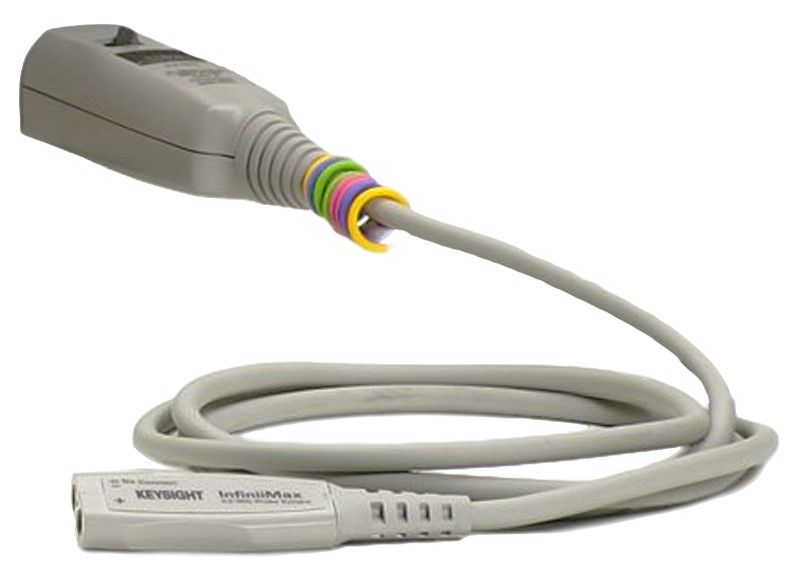

KEYSIGHT/AGILENT 1134B InfiniiMax 7 GHz Probe Amplifier
The Keysight (Agilent) 1134B InfiniiMax 7GHz Probe Amplifier specifically designed to enhance the performance of oscilloscopes for high-speed differential or single ended probing applications in embeded designs. 7GHz bandwidth allows 1134B to handle high frequncy signals. It's extremely low input capacitance, flat frequency response and resistor probe tip technology provide ultra-low loading of the DUT and minmizes the probe's impact on the circuit being measured, reducing signal distortion and preserving signal integrity. The Keysight (Agilent) 1134B also boasts a high input impedance which minimizes loading on the circuit and ensures accurate voltage measurements.
Keysight (Agilent) 1134B InfiniiMax 7GHz Probe Amplifier is compliant with the Restriction of Hazardous Substances (RoHS) directive, which restricts the use of certain hazardous materials in electronic equipments. Probe interface software allows you to save the calibration information for up to 10 diffe probe heads per channel and will automatically retrieve calibration data for a probe amplifier when attached to the scope. The Keysight (Agilent) 1134B supports a wide variety ofreal-world applications with an extensive line up of probe heads and accessories. The accessories can meet the most demanding mechanical access requirements. The groundbreaking design of Keysight (Agilent) 1134B InfiniiMax 7GHz Probe Amplifier also enables users to make either single-ended or differential measurements from a single probe amplifier, depending on their choice of probe head and accessory.
Specifications for the KEYSIGHT/AGILENT 1134B InfiniiMax 7 GHz Probe Amplifier Include:
| Bandwidth | 7 GHz |
| Dynamic Range | +/- 2.5V |
| Maximum Voltage | /- 30V |
| DC Offset Range | +/- 12V when using probe offset |
