Keysight (Agilent) 1143A

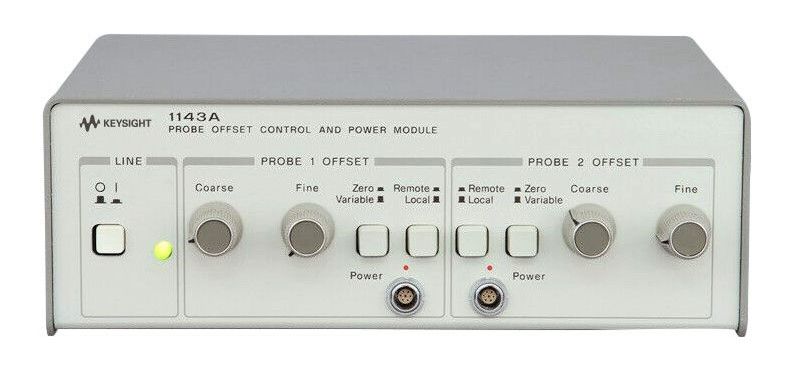

Probe Offset and Power Module
4 GHz Largeur de bande passante
100 ps Temps de montée
±40 V (DC + crête AC) Tension d'entrée maximale
50 Ω Impédance d'entrée
10:1 Facteur de division
| Attribut | Valeur |
|---|---|
| Largeur de bande passante | 4 GHz |
| Temps de montée | 100 ps |
| Tension d'entrée maximale | ±40 V (DC + crête AC) |
| Impédance d'entrée | 50 Ω |
| Facteur de division | 10:1 |
| Tension de décalage dynamique | ±0,5 V |
| Plage de tension de mode commun | ±8 V |
| Type de sonde | Sonde différentielle active |
| Alimentation requise | Module d'alimentation Keysight 1142A |
| Connecteur de sortie | SMA |
