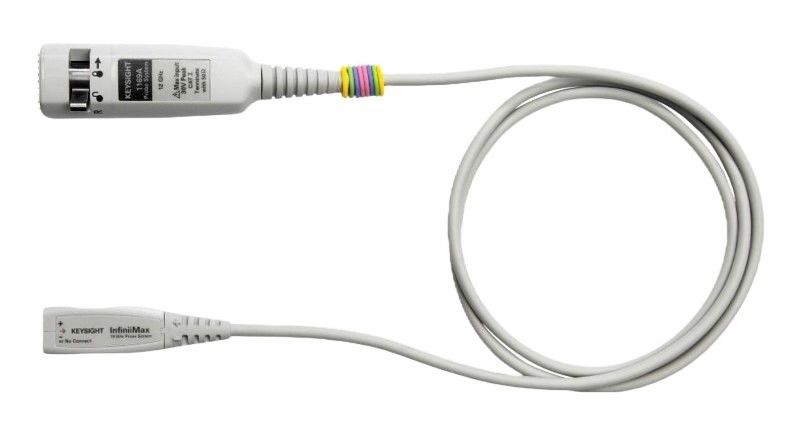

Keysight (Agilent) 1168B
| Attribut | Valeur |
|---|---|
| Largeur de bande passante | 12 GHz |
| Facteur d'atténuation | 10:1 |
| Impédance d'entrée | 100 kΩ en parallèle avec 0,35 pF |
| Tension maximale d'entrée | 8 V (DC + crête AC) |
| Temps de montée | 29 ps |
| Longueur du câble | 1,2 m |
| Connecteur de sortie | SMA mâle |
| Compatibilité oscilloscope | Oscilloscopes Keysight série Infiniium |
| Type de sonde | Sonde active différentielle |
| Plage de tension différentielle | ±850 mV |
Keysight (Agilent) 1168B Options:
- 1168B - MX0100A-001 - Micro probe head (set of 5), supports InfiniiMode
- 1168B - MX0100A-002 - Micro probe head (set of 25), supports InfiniiMode
- 1168B - MX0100A-003 - Micro probe head (set of 50), supports InfiniiMode
- 1168B - MX0102A - Soldering Tool Kit
- 1168B - MX0103A - Bullet adapter
- 1168B - MX0104A - Performance verification and deskew fixture
- 1168B - MX0105A - SMA probe head, supports InfiniiMode
- 1168B - MX0106A - Solder-in probe head, supports InfiniiMode
- 1168B - N5380B - Hi-BW differential SMA probe head
- 1168B - N5381B - Solder-in probe head
- 1168B - N2839A - Browser head
- 1168B - N2837A - Browser head replace tip kit (set of 40)
- 1168B - N2849A - QuickTip probe head tips
- 1168B - N2851A - QuickTip probe head
- 1168B - N5425B - ZIF probe head
- 1168B - N5426A - ZIF tip (set of 10)
- 1168B - N2833A - InfiniiMax II differential connectivity kit (N2839A, N5381B, N5425B/26A, N2851A/49A)
- 1168B - E2655C - Probe deskew and performance verification kit
- 1168B - E2668B - InfiniiMax I connectivity kit for single-ended measurements (E2676B/77B/78B)
- 1168B - E2669B - InfiniiMax I connectivity kit for diff/single-ended measurements (E2675B/77B/78B)
- 1168B - E2675B - Differential browser head
- 1168B - E2676B - Single-ended browser probe head
- 1168B - E2677B - Differential solder-in head
- 1168B - E2678B - Differential/single-ended socketed probe head
- 1168B - E2679B - Single-ended solder-in probe head
- 1168B - N2787A - 3D probe positioner
- 1168B - N2823A - 2.92 mm phase-matched cable pair (1 m)
- 1168B - N2852A - AutoProbe II to AutoProbe III interface adapter (for use with UXR 1- and 1.85-mm models)
- 1168B - N2880A - Coaxial attenuator Kit (pairs of 6, 12, and 20 dB attenuators)
- 1168B - N2881A - DC blocking caps (set of 2 30-VDC block caps)
- 1168B - N2884A - ZIF fine wire tips for wafer probing
- 1168B - N2887B - Soft touch pro probe interface adapter
- 1168B - N2888A - Soft touch half-channel probe interface adapter
- 1168B - N5442A - AutoProbe I to AutoProbe II interface adapter (3.5 mm to precision BNC adapter)
- 1168B - N5448B - 2.92 mm phase-matched cable pair (25 cm)
- 1168B - N5450B - Extreme temperature extension cable, 1 m long
- 1168B - N5451A - Long-wired ZIF tip kit (7 and 11 mm)
| Model | 1168B |
|---|
KEYSIGHT 1168B InfiniiMax II Probe Amplifier
The Keysight 1168B InfiniiMax II Probe Amplifier for Infiniium oscilloscopes provides full real-time bandwidth to 10 GHz. With only 3.4:1 of attenuation ratio, the 1168A/69A provides the lowest probe noise floor among InfiniiMax probes, making it ideal for signal integrity measurements that require high sensitivity. The Keysight 1168B probe system supports a wide variety of real-world applications with an extensive line up of probe heads and accessories. The Keysight 1168B InfiniiMax II Probe Amplifier is the RoHS compliant version of the 1168A. The Keysight 1168B is 100% form, fit, function and price equivalent to the 1168A.
Specifications for the KEYSIGHT 1168B InfiniiMax II Probe Amplifier Include:
| Bandwidth | 10 GHz |
| Dynamic Range | 3.3 V peak to peak |
| DC Offset Range | ±16 V |
| Max Voltage | ± 30 V |
