Keysight (Agilent) 1169B
| Attribut | Valeur |
|---|---|
| Largeur de bande passante | 12 GHz |
| Impédance d'entrée | 50 Ω |
| Tension d'entrée maximale | ±8 V (DC + crête AC) |
| Rapport de division | 10:1 |
| Capacité d'entrée | 0,7 pF |
| Temps de montée | 29 ps |
| Longueur du câble | 450 mm |
| Compatibilité oscilloscope | Oscilloscopes Infiniium série 90000A et supérieures |
| Type de connecteur | SMA mâle |
| Plage de température de fonctionnement | 0 °C à +55 °C |
Keysight (Agilent) 1169B Options:
- 1169B - MX0100A-001 - Micro probe head (set of 5), supports InfiniiMode
- 1169B - MX0100A-002 - Micro probe head (set of 25), supports InfiniiMode
- 1169B - MX0100A-003 - Micro probe head (set of 50), supports InfiniiMode
- 1169B - MX0102A - Soldering Tool Kit
- 1169B - MX0103A - Bullet adapter
- 1169B - MX0104A - Performance verification and deskew fixture
- 1169B - MX0105A - SMA probe head, supports InfiniiMode
- 1169B - MX0106A - Solder-in probe head, supports InfiniiMode
- 1169B - N2787A - 3D probe positioner
- 1169B - N2823A - 2.92 mm phase-matched cable pair (1 m)
- 1169B - N2833A - InfiniiMax II differential connectivity kit (N2839A, N5381B, N5425B/26A, N2851A/49A)
- 1169B - N2837A - Browser head replace tip kit (set of 40)
- 1169B - N2839A - Browser head
- 1169B - N2849A - QuickTip probe head tips
- 1169B - N2851A - QuickTip probe head
- 1169B - N2852A - AutoProbe II to AutoProbe III interface adapter (for use with UXR 1- and 1.85-mm models)
- 1169B - N2880A - Coaxial attenuator Kit (pairs of 6, 12, and 20 dB attenuators)
- 1169B - N2881A - DC blocking caps (set of 2 30-VDC block caps)
- 1169B - N2884A - ZIF fine wire tips for wafer probing
- 1169B - N2887B - Soft touch pro probe interface adapter
- 1169B - N2888A - Soft touch half-channel probe interface adapter
- 1169B - N5380B - SMA probe head
- 1169B - N5381B - Solder-in probe head
- 1169B - N5425B - ZIF probe head
- 1169B - N5426A - ZIF tip (set of 10)
- 1169B - N5442A - AutoProbe I to AutoProbe II interface adapter (3.5 mm to precision BNC adapter)
- 1169B - N5448B - 2.92 mm phase-matched cable pair (25 cm)
- 1169B - N5450B - Extreme temperature extension cable, 1 m long
- 1169B - N5451A - Long-wired ZIF tip kit (7 and 11 mm)
- 1169B - E2655C - Probe deskew and performance verification kit
- 1169B - E2668B - InfiniiMax I connectivity kit for single-ended measurements (E2676B/77B/78B)
- 1169B - E2669B - InfiniiMax I connectivity kit for diff/single-ended measurements (E2675B/77B/78B)
- 1169B - E2675B - Differential browser head
- 1169B - E2677B - Differential solder-in head
- 1169B - E2678B - Differential/single-ended socketed probe head
| Model | 1169B |
|---|

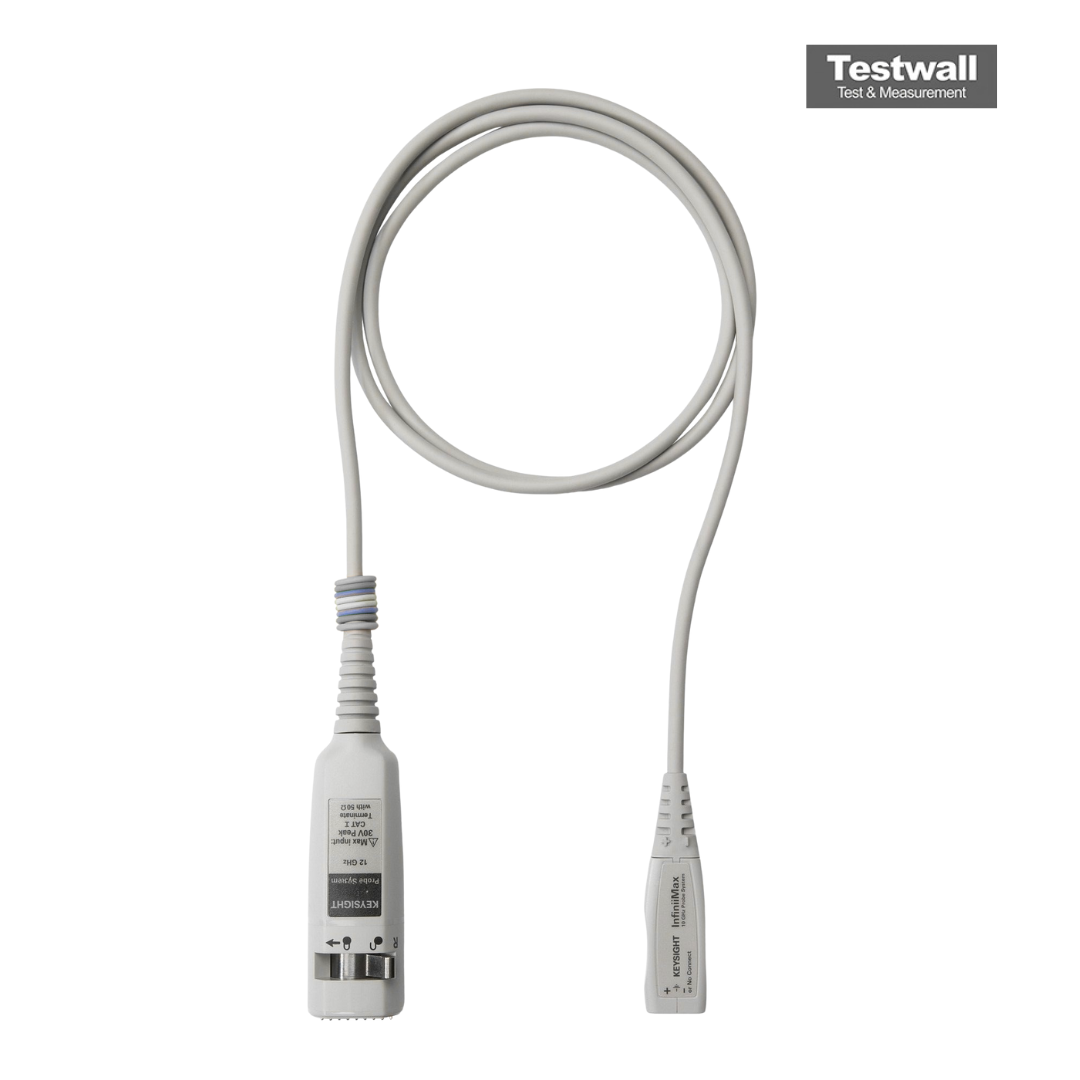

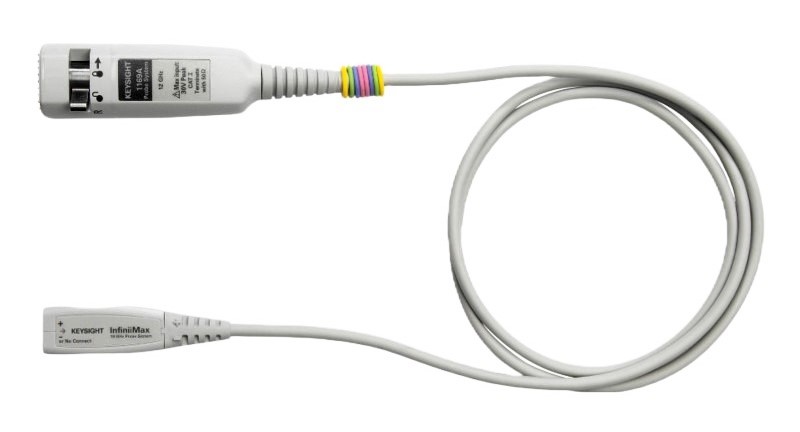

KEYSIGHT 1169B InfiniiMax II Probe Amplifier
The Keysight 1169B InfiniiMax II Probe Amplifier for Infiniium oscilloscopes provides full real-time bandwidth to 12 GHz. With only 3.4:1 of attenuation ratio, the 1169B provides the lowest probe noise floor among InfiniiMax probes, making it ideal for signal integrity measurements that require high sensitivity. The Keysight 1169B probe system supports a wide variety of real-world applications with an extensive line up of probe heads and accessories. The Keysight 1169B InfiniiMax II Probe Amplifier is the RoHS compliant version of the 1169A. The Keysight 1169B is 100% form, fit, function and price equivalent to the 1169A.
Specifications for the KEYSIGHT 1169B InfiniiMax II Probe Amplifier Include:
| Bandwidth | 12 GHz |
| Dynamic Range | 3.3 V peak to peak |
| DC Offset Range | ±16 V |
| Max Voltage | ± 30 V |
