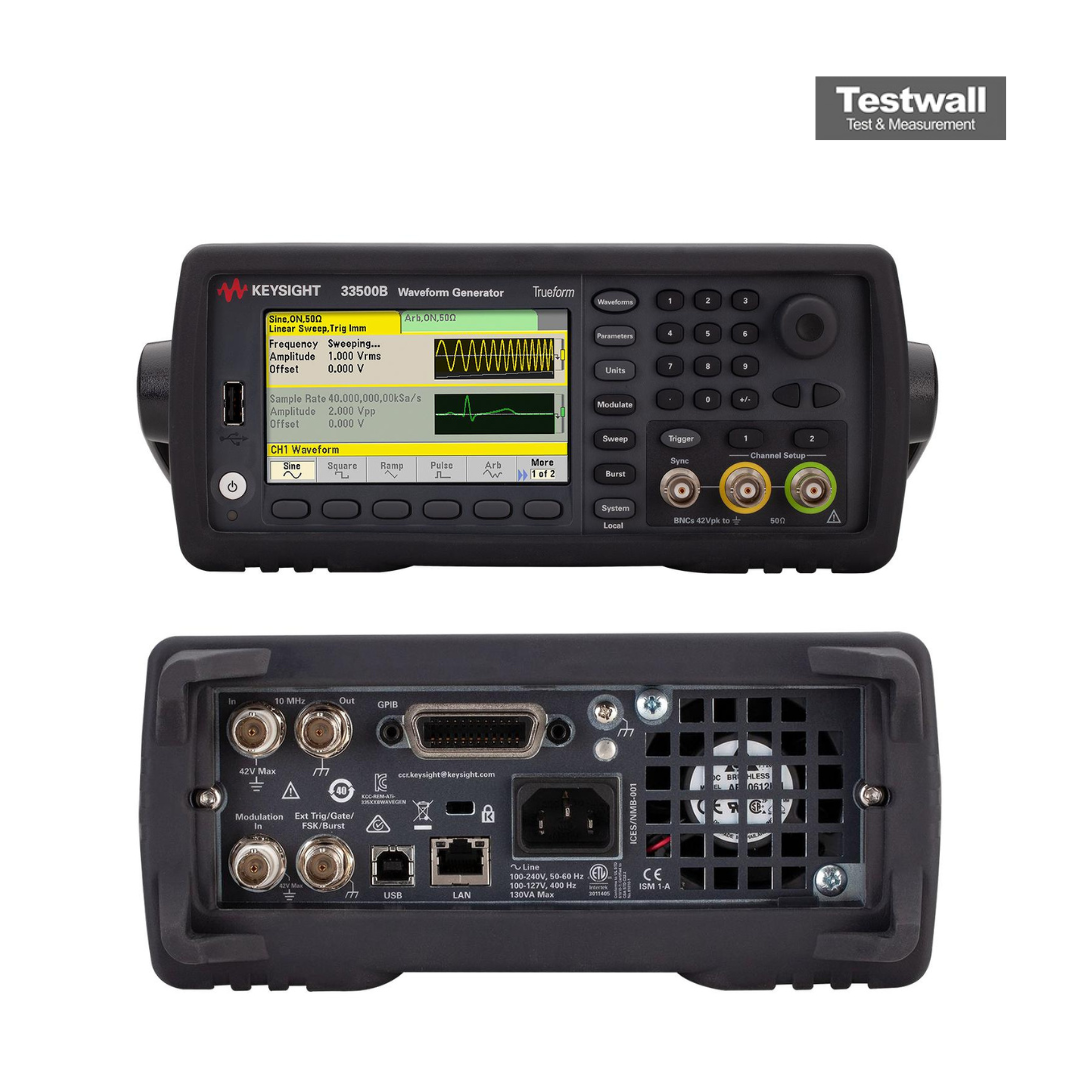

Keysight (Agilent) 33510B
| Attribut | Valeur |
|---|---|
| Voies | 2 voies |
| Résolution verticale | 16 bit |
| Temps de montée/descente | 8,4 ns (nom.) |
| Gigue | < 40 ps rms |
| Impédance de sortie | 50 Ω (nom.) |
| Gamme de fréquences | 1 µHz à 20 MHz (sinus, carré, impulsion); jusqu’à 200 kHz (rampe, triangle) |
| Amplitude | 1 mVpp à 10 Vpp sur 50 Ω (2 mVpp à 20 Vpp circuit ouvert) |
| Modulation | AM, FM, ΦM, FSK, BPSK, PWM, Sum |
| Formes d’onde | sinus, carré, rampe, triangle, impulsion, bruit, DC |
| Distorsion harmonique | THD < 0,04%, 20 Hz à 20 kHz (typ.) |
| Modes de balayage | linéaire, log., liste (jusqu’à 128 fréquences) |
| Vieillissement de la base de temps | ±1 ppm par an |
| Interfaces | GPIB, LAN (LXI), USB |
| Affichage | 4,3 in couleur TFT, 480 × 272 |
| Dimensions (L × H × P) | 261,1 × 103,8 × 303,2 mm |
| Poids | 3,3 kg |
Keysight (Agilent) 33510B Options:
- 33510B - MEM - Increases arbitrary waveform memory to 16 MSa/channel
- 33510B - OCX - OCXO timebase for ultra-high stability
- 33510B - SEC - Security features with NISPOM
- 33510B - 335BW2U - Upgrade: Increase bandwidth to 30 MHz (2-channel models)
- 33510B - 335ARB2U - Upgrade: Add arbitrary waveform capability (2-channel models)
- 33510B - 335MEM2U - Upgrade: Add 16M memory to arb (2-channel arb models)
- 33510B - 335SECU - Upgrade: Add NISPOM and file security
- 33510B - 33500U-OCX - Upgrade: Add high-stability timebase (Must return to Keysight)
Keysight (Agilent) 33510B Waveform Generator
The Keysight 33510B Waveform Generator is a dual channel, 20MHz waveform generator provides exclusive Trueform technology which offers unmatched capabilities for generating a full range of signals for your most demanding measurements. It offers the standard signals and features such as modulation, sweep, and burst and covers a wide range of frequencies for stimulating various electronic circuits and devices. Keysight 33510B Waveform Generator also provides features that give you the capabilities and flexibility you need to get your job done quickly, no matter how complex.
Keysight 33510B Waveform Generator produces sine waves with 5x lower harmonic distortion for pure signals and pulses up to 20MHz with 10x less jitter for more precise timing. An intuitive front panel offers built-in LAN (LXI-C), USB, and GPIB interfaces for connectivity. These waveform generators feature up to 250MSa/s sampling rate for higher time resolution arbitrary waveforms. The front panel with a built-in display allows for easy control and monitoring of generated waveforms. Keysight 33510B Waveform Generator also allows to create and edit custom waveforms for specific testing requirements. Even, 33510B lets you to create signals as low as 1 mVpp.
Specifications for the Keysight (Agilent) 33510B Waveform Generator Include:
| Bandwidth | 20 MHz |
| Number of channels | 2 |
| Sampling rate | 160 MSa/s |
| Amplitude range | 1 mVpp to 10 Vpp into 50 Ω |
Other models in this series:
Options et configurations
- Vieillissement de la base de temps: ±1 ppm par an (±0,1 ppm avec Opt. OCX)
