Keysight (Agilent)

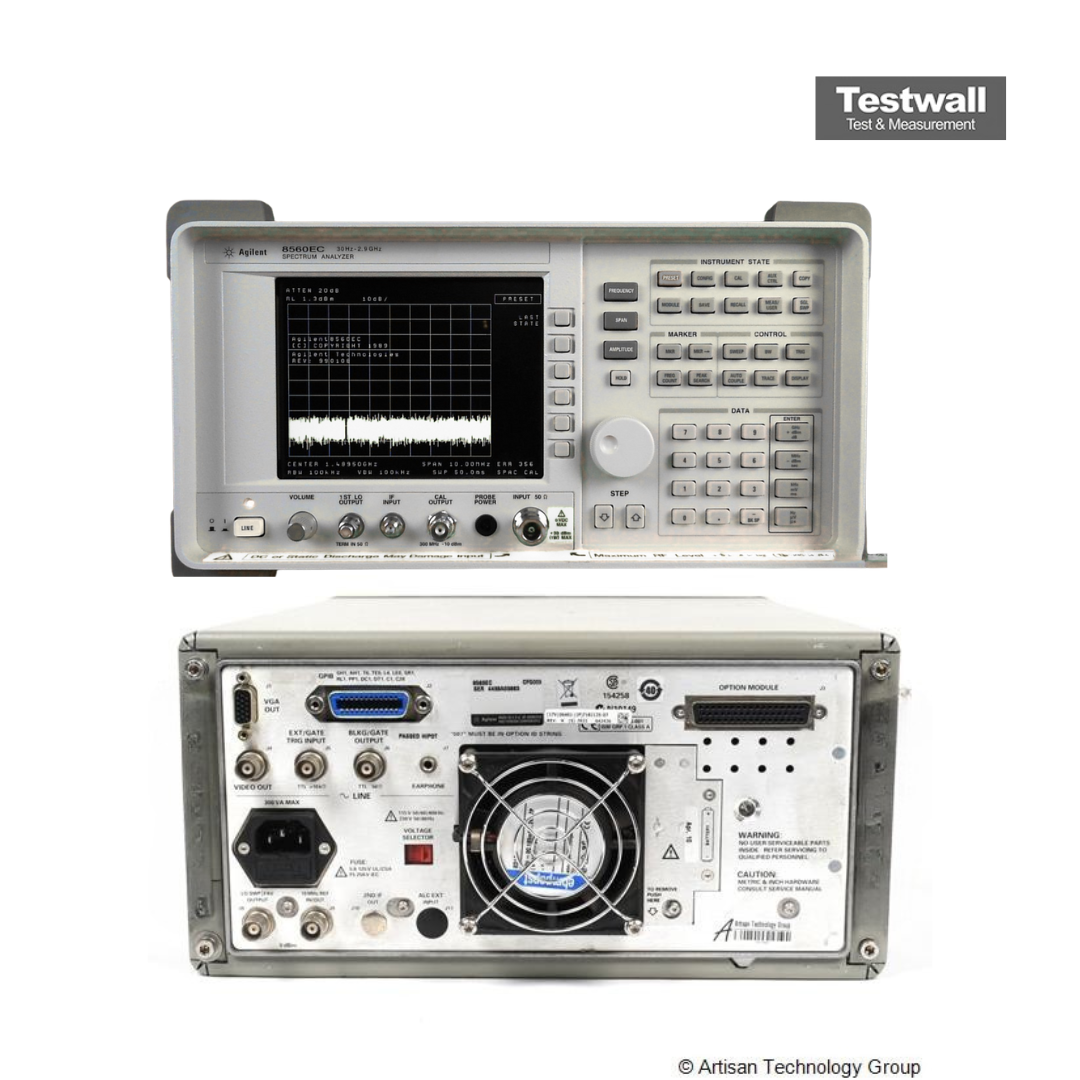

Keysight (Agilent) 8560EC
Spectrum Analyzer, 30 Hz - 2.9 GHz
30 Hz à 2,9 GHz Plage de fréquences
70 dB Plage d'affichage de la dynamique
-135 dBm à +30 dBm Plage de niveaux d'entrée
1 Hz à 2 MHz Résolution de la largeur de bande (RBW)
1 Hz à 3 MHz Largeur de bande vidéo (VBW)
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 30 Hz à 2,9 GHz |
| Plage d'affichage de la dynamique | 70 dB |
| Plage de niveaux d'entrée | -135 dBm à +30 dBm |
| Résolution de la largeur de bande (RBW) | 1 Hz à 2 MHz |
| Largeur de bande vidéo (VBW) | 1 Hz à 3 MHz |
| Niveau de bruit moyen affiché (DANL) | -147 dBm (typique) |
| Précision de l'amplitude | ±0,5 dB (typique) |
| Impédance d'entrée | 50 Ohms |
| Alimentation électrique | 115/230 V CA, 50/60 Hz |
| Dimensions (L x H x P) | 426 mm x 222 mm x 516 mm |
Keysight (Agilent) 8560EC Options:
- 8560EC - H35 - Firmware upgrade in order for a new 856xEC to work with the 8563E-K35 test set
| Model | 8560EC |
|---|

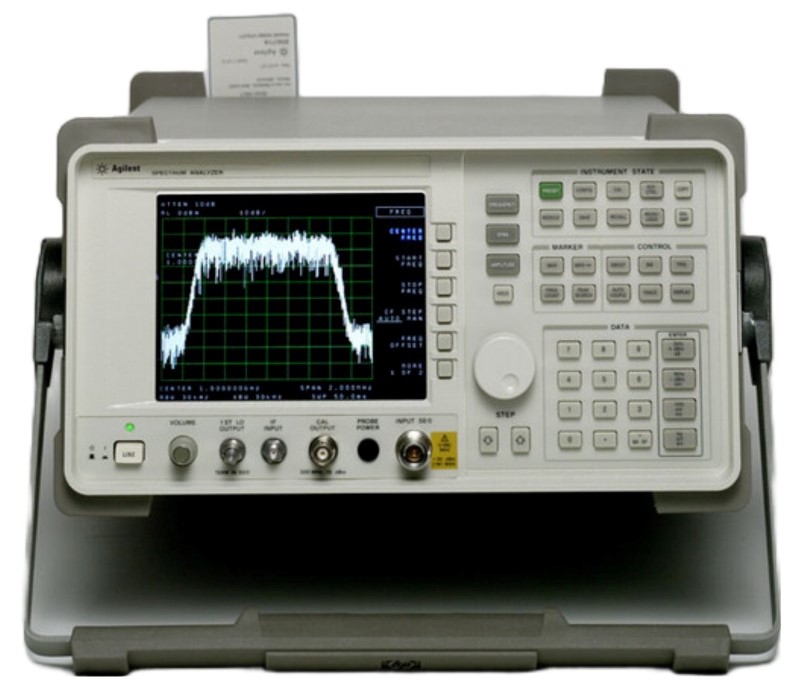

The Agilent 8560EC portable, color display RF spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a package built to withstand environmental conditions. It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage.
The Agilent 8560EC Spectrum Analyzer has the following specifications:
- +/-1.0 dB absolute amplitude accuracy
- -151 dBm/Hz displayed average noise level (DANL)
- Outstanding performance for sensitivity, phase noise, the 2nd and 3rd order dynamic range, and the voltage standing wave ratio (VSWR)
- Color display
- Continuous 30 Hz to 2.9 GHz sweep
- Fast digital resolution bandwidths of 1 Hz to 3 MHz.
- Adjacent channel power, channel power, carrier power, occupied bandwidth percentage and time-gated measurements standard
- Precision timebase and 1 Hz counter resolution
- MIL-PRF-28800, class 3 rugged
- Measurement personalities for digital radio and phase noise measurements
- Easily transfer screen image or trace data to PC with E4444A BenchLink software
