Keysight (Agilent) B1525A
| Attribut | Valeur |
|---|---|
| Tension de sortie maximale | 3000 V |
| Courant de sortie maximal | 8 mA |
| Résolution de tension | 0,5 V (plage 3000 V) |
| Résolution de courant | 10 fA (plage basse) |
| Type de module | Module source-mesure haute tension (HVSMU) |
| Compatibilité | Keysight B1500A Semiconductor Device Analyzer |
| Nombre de canaux | 1 canal par module |
| Précision de mesure de tension | 0,018 % + 150 mV |
| Précision de mesure de courant | 0,1 % + 100 fA |
| Interface de connexion | Connecteur de module interne compatible châssis B1500A |
| Model | B1525A |
|---|

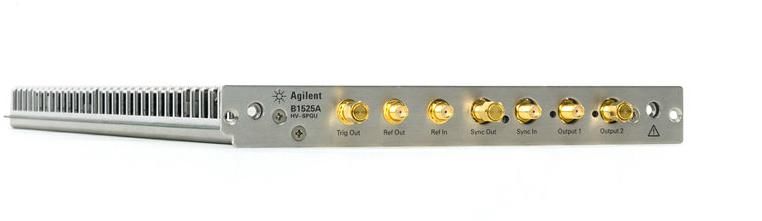

Keysight (Agilent) B1525A High Voltage Semiconductor PGU
The Keysight B1525A HV-SPGU is a plug-in module for the B1500A semiconductor device analyzer that provides a 5 microsecond pulsed IV parametric test solution with up to 40 V and 400 mA output capability. It is the best choice for pulsed IV parametric measurement for middle range power devices, such as GaAs and HEMT devices for RF applications. The HV-SPGU module has an output-voltage monitor capability that supports a 5 μs sampling interval, providing superb accuracy. As shown in the block diagram this feature enables the calculation of the output cur using the known output impedance of the HV-SPGU module.
The features in the B1525A HV-SPGU module, the highest accurate voltage forcing among the pulse generators for semiconductor test, arbitrary waveform generation with 10 ns setting resolution, offer best-in-class pulse generation to meet wider application coverage. Each HV-SPGU module has two channels, so only one module is necessary for three-terminal device evaluation. This solution does not require any other external equipment or complex cabling. EasyEXPERT supplies a library of application tests for performing pulsed IV measurement using HVSPGU. The most basic of these application tests permits you to specify single (spot) pulsed measurement on two HV-SPGU channels.
Specifications for the Keysight (Agilent) B1525A High Voltage Semiconductor PGU Include:
| Voltage | up to 40V |
| Current | up to 400mA |
| Pulsed width range | 5 μs to 10 s |
| Cur resolution | 40 μA |
