Keysight (Agilent) DAQM908A
| Attribut | Valeur |
|---|---|
| Nombre de voies | 20 voies |
| Type de commutation | Multiplexeur à deux fils |
| Tension maximale | 300 V (CAT I) |
| Courant maximal | 1 A |
| Résistance de contact | 50 mΩ typique |
| Fréquence maximale du signal | 10 MHz |
| Compatibilité | Compatible avec les systèmes DAQ970A et DAQ973A |
| Type de connecteur | Connecteur de bornier amovible |
| Durée de vie des relais | 100 000 000 cycles (typique) |
| Plage de température de fonctionnement | 0 °C à 55 °C |
Keysight (Agilent) DAQM908A Options:
- DAQ970A - DAQ970A - 3-slot mainframe with built-in 6½ digit DMM, LAN and USB interfaces
- DAQ973A - DAQ973A - 3-slot mainframe with built-in 6½ digit DMM, LAN, USB, and GPIB interfaces
- DAQM900A - DAQM900A - 20-Channel General Purpose Multiplexer, 2-wire solid state (4-wire selectable), 450 ch/s, 120V
- DAQM901A - DAQM901A - 20-Channel General Purpose Multiplexer + 2 current channels, 2-wire armature (4-wire selectable), 80 ch/s, 300V
- DAQM902A - DAQM902A - 16-Channel Multiplexer, 2-wire reed (4-wire selectable), 250 ch/s, 300V
- DAQM903A - DAQM903A - 20-Channel Actuator/GP Switch, SPDT/form C, 300V, 1A
- DAQM904A - DAQM904A - 4x8 Matrix Switch, 2-wire armature, 300V, 1A
- DAQM905A - DAQM905A - Dual 4-Channel RF Multiplexer 50Ω, 2 GHz bandwidth
- DAQM907A - DAQM907A - Multifunction Module with digital I/O, event counter, and analog outputs
- DAQM909A - DAQM909A - 4-Channel Digitizer, simultaneous sampling, 800 kSa/s, 24-bit resolution
- DAQM910A - DAQM910A - 20-Channel Low Voltage Multiplexer, 2-wire armature (4-wire selectable), 80 ch/s, 40Vpk
| Model | DAQM908A |
|---|

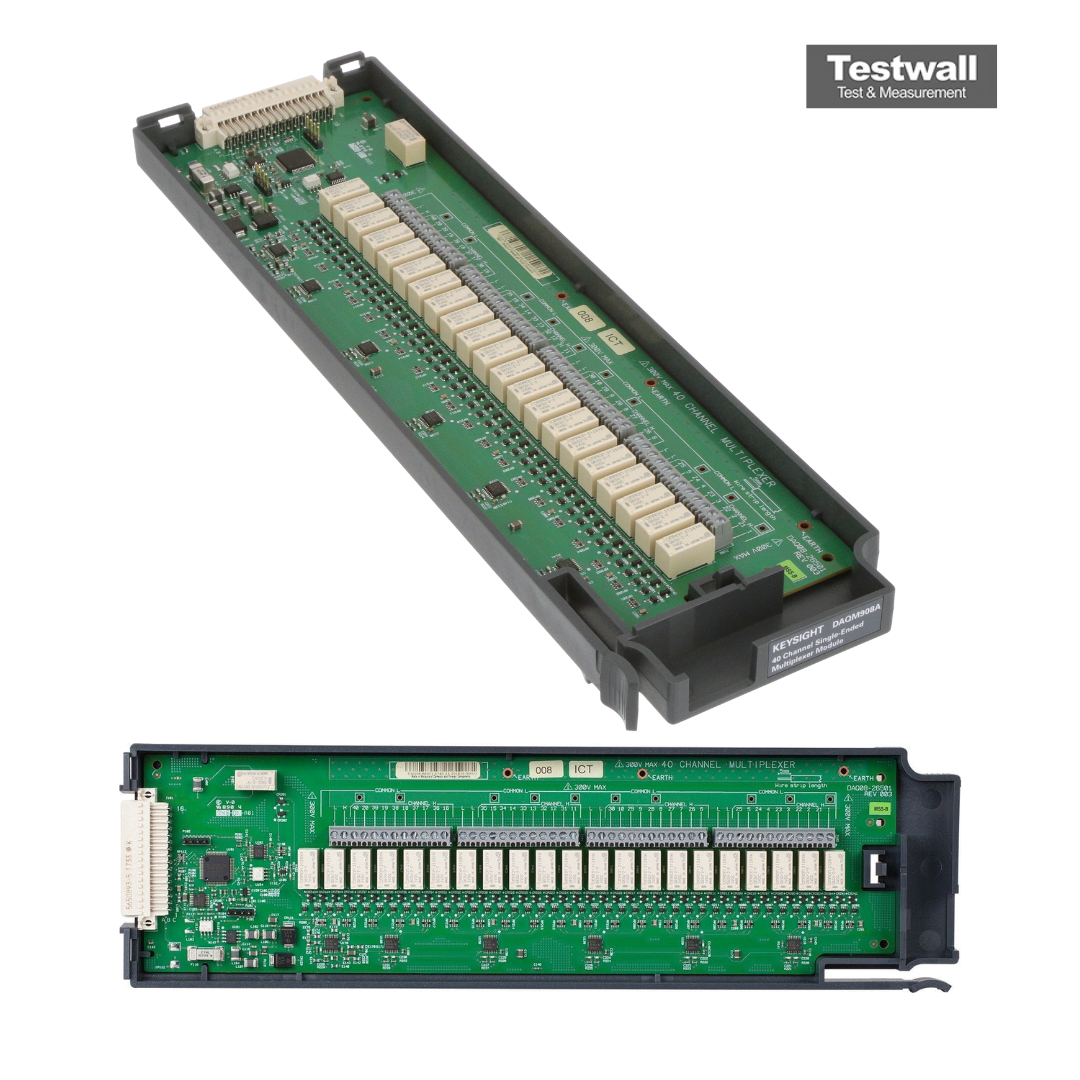

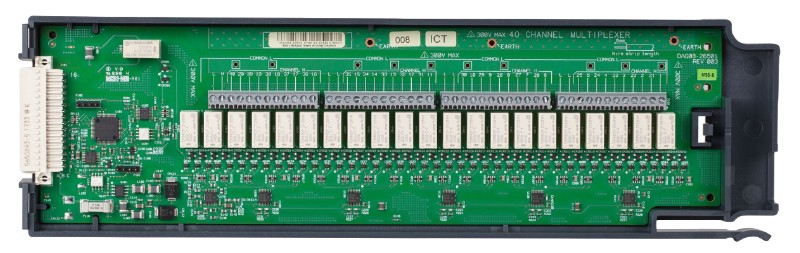

Keysight (Agilent) DAQM908A 40 Channel Single-Ended Multiplexer Module
Keysight (Agilent) DAQM908A 40 Channel Single-Ended Multiplexer Module designed for use with the DAQ970A and DAQ973A data aquisition systems. It is used to expand the channel count of these systems, allowing you to measure a large number of signals. Keysight (Agilent) DAQM908A is used for the greatest density in common low applications, such as battery tests, component characterization, and benchtop testing.
Keysight (Agilent) DAQM908A 40 Channel Single-Ended Multiplexer Module offers a scan speed upto 80 channels/second, enabling fast data acquisition. Each module switches 40 one-wire inputs. All two-wire internal measurements except cur are supported. Use only 2-wire RTD and Thermistor sensors for temperature measurements with this module. The module low connection is isolated from earth and can float up to 300 V. Keysight (Agilent) DAQM908A 40 Channel Single-Ended Multiplexer Module supports various measurement types, including DC/AC voltage, 2-wire and 4-wire resistance, thermocouples, RTDs, and thermistors.
Specifications for the Keysight (Agilent) DAQM908A 40 Channel Single-Ended Multiplexer Module Include:
| Number of channels | 40 |
| Scanning speed | 80 ch/s |
| Voltage (dc, ac rms) | 300 V (max) |
| Cur (dc, ac rms) | 1 A (max) |
