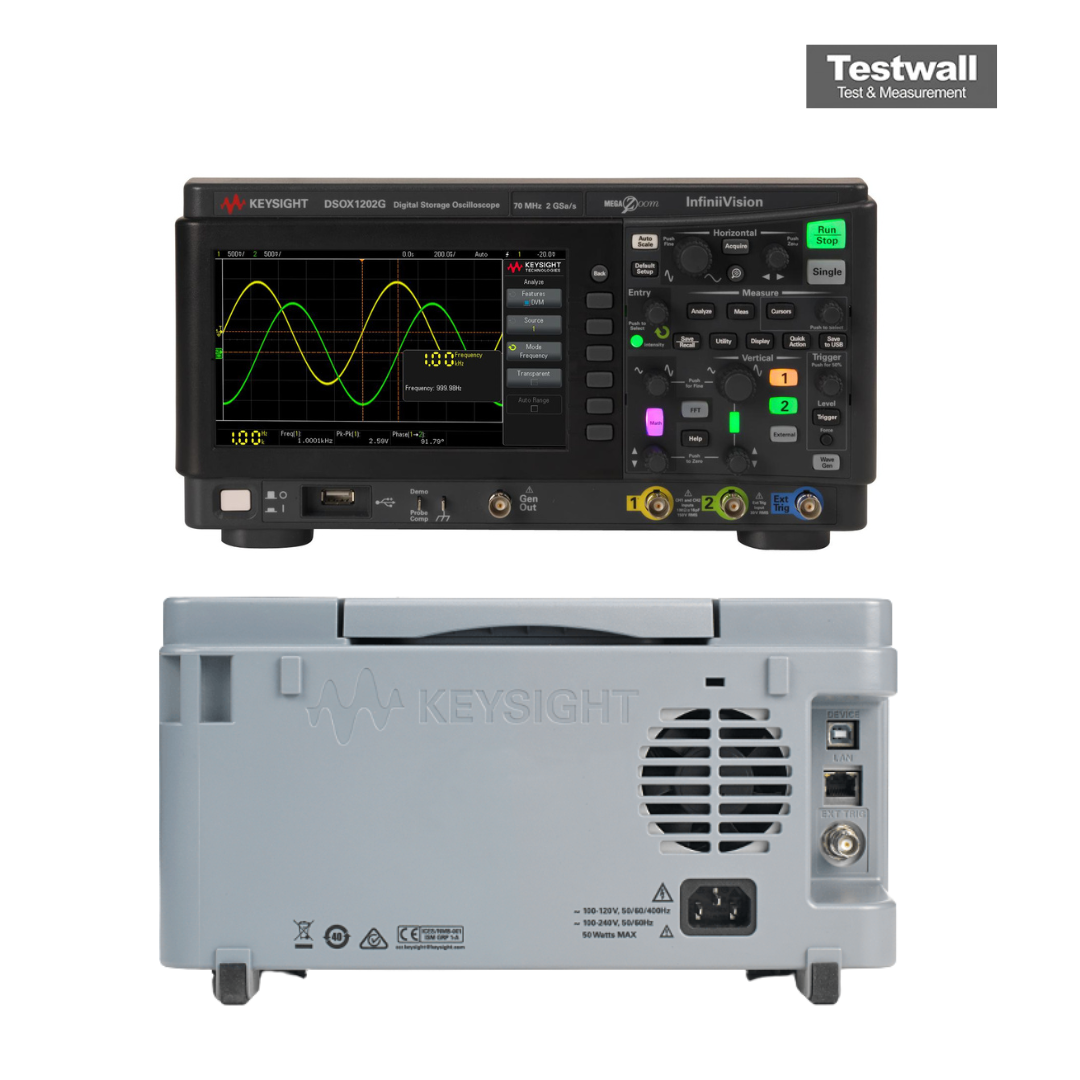

Keysight (Agilent) DSOX1202G
| Attribut | Valeur |
|---|---|
| Bande passante | 70 MHz (mise à niveau possible jusqu'à 200 MHz) |
| Nombre de voies | 2 voies analogiques |
| Taux d'échantillonnage | 2 GSa/s |
| Profondeur mémoire | 1 Mpts |
| Affichage | Écran tactile WVGA 7 pouces (800 x 480 pixels) |
| Générateur de formes d'ondes intégré | Oui, générateur de signaux intégré (20 MHz) |
| Taux de rafraîchissement de l'affichage | 50 000 formes d'ondes par seconde |
| Résolution verticale | 8 bits |
| Connectivité | USB, port LAN (LXI), sortie USB pour imprimante |
| Analyses et mesures automatiques | 33 mesures automatiques intégrées avec affichage simultané |
| Model | DSOX1202G |
|---|
Keysight (Agilent) DSOX1202G Oscilloscope
The Keysight / Agilent DSOX1202G Oscilloscope is engineered to give you quality, industry-proven technology at unbelievably low prices. Get professional-level functionality with industry-leading software analysis including standard serial bus analysis for the most popular serial bus standards, and 6-in-1 instrument integration. The DSOX1202G offers an integrated 20 MHz function generator with modulation capability. Keysight / Agilent DSOX1202G Oscilloscope is ideal for educational or design labs where bench space and budget are at a premium. The integrated function generator provides stimulus output of sine, square, ramp, pulse, DC and noise waveforms to your device under test. Add modulation to the signal with customizable AM, FM and FSK settings.
The Keysight (Agilent) DSOX1202G Oscilloscope is a powerful protocol analyzer that enables hardware-based specialized serial communication analysis. The DSOX1202G's frequency response analyzer capability is the perfect tool to help students understand the gain and phase performance of passive RLC circuits and amplifiers. The voltmeter operates through probes connected to the oscilloscope channels, but its measurement is decoupled from the oscilloscope triggering system, so both the DVM and triggered oscilloscope measurements can be made with the same connection. You can quickly measure AC RMS, DC, and DC RMS without configuring the oscilloscope capture. There is also an integrated 5-digit frequency counter inside Keysight / Agilent DSOX1202G Oscilloscope.
Specifications for the Keysight (Agilent) DSOX1202G Oscilloscope Include:
| Bandwidth | 70 MHz (std) up to 200 MHz |
| Number of Channels | 2 |
| Sample Rate | 2 GSa/s |
| Memory Depth | 2 M points |
