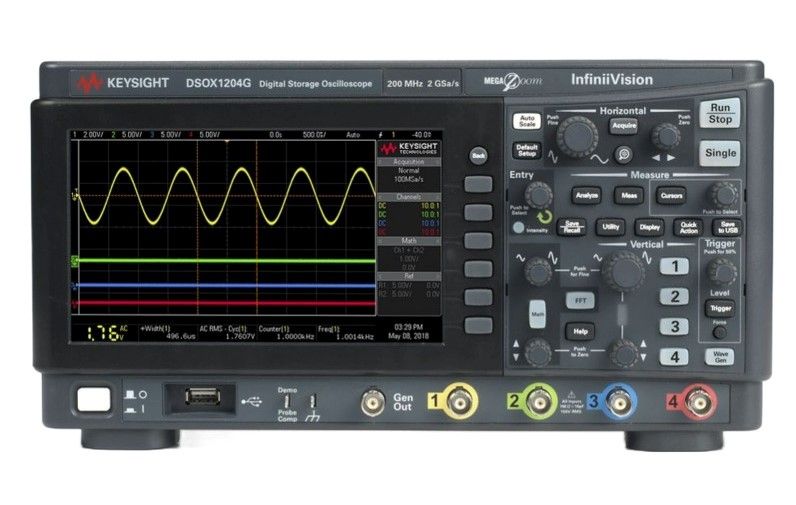

Keysight (Agilent) DSOX1204G
| Attribut | Valeur |
|---|---|
| Bande passante | 200 MHz |
| Nombre de voies | 4 voies analogiques |
| Taux d'échantillonnage | 2 GSa/s |
| Profondeur mémoire | 1 Mpts |
| Taille de l'écran | 7 pouces WVGA (800 x 480 pixels) |
| Générateur de fonctions intégré | Oui (générateur de formes d'ondes arbitraires) |
| Taux de rafraîchissement de la forme d'onde | 50 000 formes d'ondes par seconde |
| Connectivité | USB, LAN (LXI), sortie d'affichage |
| Analyses intégrées | Masques de test, FFT, analyses mathématiques avancées |
| Plage de tension d'entrée | 1 mV/div à 5 V/div |
Keysight (Agilent) DSOX1204G Options:
- DSOX1204G - DSOX1200-070 - 70 MHz bandwidth option
- DSOX1204G - DSOX1200-100 - 100 MHz bandwidth option
- DSOX1204G - DSOX1200-200 - 200 MHz bandwidth option
- DSOX1204G - D1200BW1A - Upgrade bandwidth from 70 to 100 MHz
- DSOX1204G - D1200BW2A - Upgrade bandwidth from 70 to 200 MHz
- DSOX1204G - D1200BW3A - Upgrade bandwidth from 100 to 200 MHz
- DSOX1204G - DSOXBODE - Bode plot training kit
- DSOX1204G - N2137A - User's Guide (hardcopy) for InfiniiVision 1000 X-Series
- DSOX1204G - N2738A - Soft carrying case for 1000 X-Series oscilloscopes
- DSOX1204G - N2138A - Rackmount kit for 1000 X-Series oscilloscopes
- DSOX1204G - D9010UDAA - User-defined Application (UDA) software
- DSOX1204G - D9010BSEO - Infiniium Offline Oscilloscope Analysis Software
- DSOX1204G - DSOX1200-AB2 - Front panel overlay, Chinese (Simplified)
- DSOX1204G - DSOX1200-AB0 - Front panel overlay, Chinese (Traditional)
- DSOX1204G - DSOX1200-AKB - Front panel overlay, Czech
- DSOX1204G - DSOX1200-ABF - Front panel overlay, French
- DSOX1204G - DSOX1200-ABD - Front panel overlay, German
- DSOX1204G - DSOX1200-ABZ - Front panel overlay, Italian
- DSOX1204G - DSOX1200-ABJ - Front panel overlay, Japanese
- DSOX1204G - DSOX1200-AB1 - Front panel overlay, Korean
- DSOX1204G - DSOX1200-AKD - Front panel overlay, Polish
- DSOX1204G - DSOX1200-AB9 - Front panel overlay, Portuguese
- DSOX1204G - DSOX1200-AKT - Front panel overlay, Russian
- DSOX1204G - DSOX1200-ABE - Front panel overlay, Spanish
- DSOX1204G - DSOX1200-AB3 - Front panel overlay, Thai
- DSOX1204G - DSOX1200-AB8 - Front panel overlay, Turkish
| Model | DSOX1204G |
|---|
Keysight (Agilent) DSOX1204G Oscilloscope
Keysight / Agilent DSOX1204G oscilloscope is engineered to give you quality, industry-proven technology at unbelievably low prices. Get professional-level functionality with industry-leading software analysis including standard serial bus analysis for the most popular serial bus standards, and 6-in-1 instrument integration. The DSOX1204G offers an integrated 20 MHz function generator with modulation capability. It's ideal for educational or design labs where bench space and budget are at a premium. The integrated function generator provides stimulus output of sine, square, ramp, pulse, DC and noise waveforms to your device under test. Add modulation to the signal with customizable AM, FM and FSK settings.
The Keysight / Agilent DSOX1204G oscilloscope is a powerful protocol analyzer that enables hardware-based specialized serial communication analysis. The DSOX11204G's frequency response analyzer capability is the perfect tool to help students understand the gain and phase performance of passive RLC circuits and amplifiers. The voltmeter operates through probes connected to the oscilloscope channels, but its measurement is decoupled from the oscilloscope triggering system so both the DVM and triggered oscilloscope measurements can be made with the same connection. You can quickly measure AC RMS, DC, and DC RMS without configuring the oscilloscope capture. There is also an integrated 5-digit frequency counter Keysight / Agilent DSOX1204G oscilloscope.
Specifications for the Keysight (Agilent) DSOX1204G Oscilloscope Include:
| Bandwidth | 70 MHz (std) up to 200 MHz |
| Number of Channels | 4 |
| Sample Rate | 2GSa/s |
| Memory Depth | 2M points |
