Keysight (Agilent) MSOX4104G
| Attribut | Valeur |
|---|---|
| Largeur de bande | 1 GHz |
| Nombre de voies analogiques | 4 |
| Nombre de voies numériques | 16 |
| Taux d'échantillonnage maximum | 5 GSa/s |
| Profondeur mémoire | 4 Mpts (standard), jusqu'à 1 Gpts (en option) |
| Taille de l'écran | 12,1 pouces WXGA (1280 x 800 pixels) |
| Taux de mise à jour de la forme d'onde | 1 000 000 formes d'onde par seconde |
| Résolution verticale | 8 bits (jusqu'à 12 bits en mode haute résolution) |
| Sensibilité verticale | 1 mV/div à 5 V/div |
| Interface de connectivité | USB, LAN (LXI), GPIB (en option) |
Keysight (Agilent) MSOX4104G Options:
- MSOX4104G - DSOX4WAVEGEN2 - Built-in dual-channel 20 MHz function/AWG waveform generator upgrade
- MSOX4104G - DSOXPERFMSO - MSO upgrade: Add 16 digital timing channels (License + N2756A MSO cable delivered separately)
- MSOX4104G - DSOX4SECA - Enhanced Security Option: Disable non-volatile memory, USB, LAN, and/or firmware upgrade
- MSOX4104G - D4000GENB - Embedded Software Package: I2C, SPI, UART (RS232/422/485), I2S, and USB PD serial trigger & decode, plus Measurement Limit Testing, Mask Limit Testing, Frequency Response Analysis (Bode plots), and Enhanced Video Analysis (Standard on G models)
- MSOX4104G - D4000AUTB - Automotive Software Package: CAN (symbolic with .dbc file), CAN FD (symbolic with .dbc file), LIN (symbolic with .ldf file), FlexRay, SENT, CXPI, PSI5 (user-definable Manchester), and User-definable NRZ serial trigger & decode, plus Measurement Limit Testing, Mask Limit Testing and Frequency Response Analysis (Bode plots)
- MSOX4104G - D4000AERB - Aero Software Package: MIL-STD 1553 and ARINC 429 serial trigger & decode, plus Measurement Limit Testing, Mask Limit Testing, Frequency Response Analysis (Bode plots), and Enhanced Video Analysis
- MSOX4104G - D4000USBB - USB Software Package: USB 2.0 Low-, Full-, & Hi-speed, USB PD trigger & decode, plus USB 2.0 Signal Quality Test, Jitter & Real-time Eye Analysis, Measurement Limit Testing, Mask Limit Testing, and Frequency Response Analysis (Bode plots)
- MSOX4104G - D4000PWRB - Power Software Package: Power quality, current harmonics, switching loss, transient response, turn-on/off time, output ripple, efficiency, loop response, PSRR, etc., plus Measurement Limit Testing, Mask Limit Testing, Frequency Response Analysis (Bode plots), and USB PD serial trigger & decode
- MSOX4104G - D4000BDLB - Ultimate Bundle Software Package: I2C, SPI, UART, I2S, CAN, CAN FD, LIN, FlexRay, CXPI, PSI5 (User-definable Manchester), User-definable NRZ, USB 2.0 low-, full-, & hi-speed, USB PD, MIL-STD 1553, and ARINC 429 serial trigger & decode, plus USB 2.0 Signal Quality Test, Power Analysis, Measurement Limit Testing, Mask Limit Testing, Frequency Response Analysis (Bode plots), Enhanced Video Analysis
- MSOX4104G - DSOX4B2T32U - Bandwidth upgrade 200 MHz to 350 MHz, 2 ch (Return to service center)
- MSOX4104G - DSOX4B2T34U - Bandwidth upgrade 200 MHz to 350 MHz, 4 ch (Return to service center)
- MSOX4104G - DSOX4B5T104U - Bandwidth upgrade 500 MHz to 1 GHz, 4 ch (Return to service center)
- MSOX4104G - DSOX4B1T154U - Bandwidth upgrade 1 GHz to 1.5 GHz, 4 ch (Return to service center)
- MSOX4104G - DSOX4B2T52U - Bandwidth upgrade 200 MHz to 500 MHz, 2 ch (Return to service center)
- MSOX4104G - DSOX4B2T54U - Bandwidth upgrade 200 MHz to 500 MHz, 4 ch (Return to service center)
- MSOX4104G - DSOX4B2T104U - Bandwidth upgrade 200 MHz to 1 GHz, 4 ch (Return to service center)
- MSOX4104G - DSOX4B2T154U - Bandwidth upgrade 200 MHz to 1.5 GHz, 4 ch (Return to service center)
- MSOX4104G - DSOX4B3T104U - Bandwidth upgrade 350 MHz to 1 GHz, 4 ch (Return to service center)
- MSOX4104G - DSOX4B3T154U - Bandwidth upgrade 350 MHz to 1.5 GHz, 4 ch (Return to service center)
- MSOX4104G - DSOX4B5T154U - Bandwidth upgrade 500 MHz to 1.5 GHz, 4 ch (Return to service center)
- MSOX4104G - DSOXBODE - Bode plot training kit (series R-L-C circuit board for frequency response analysis)
- MSOX4104G - D9010BSEO - Infiniium Offline Oscilloscope Analysis PC Software
- MSOX4104G - D9010UDAA - User-definable Application (UDA) Software
- MSOX4104G - 33503A - BenchLink Waveform Builder Pro and Basic PC Software
| Model | MSOX4104G |
|---|

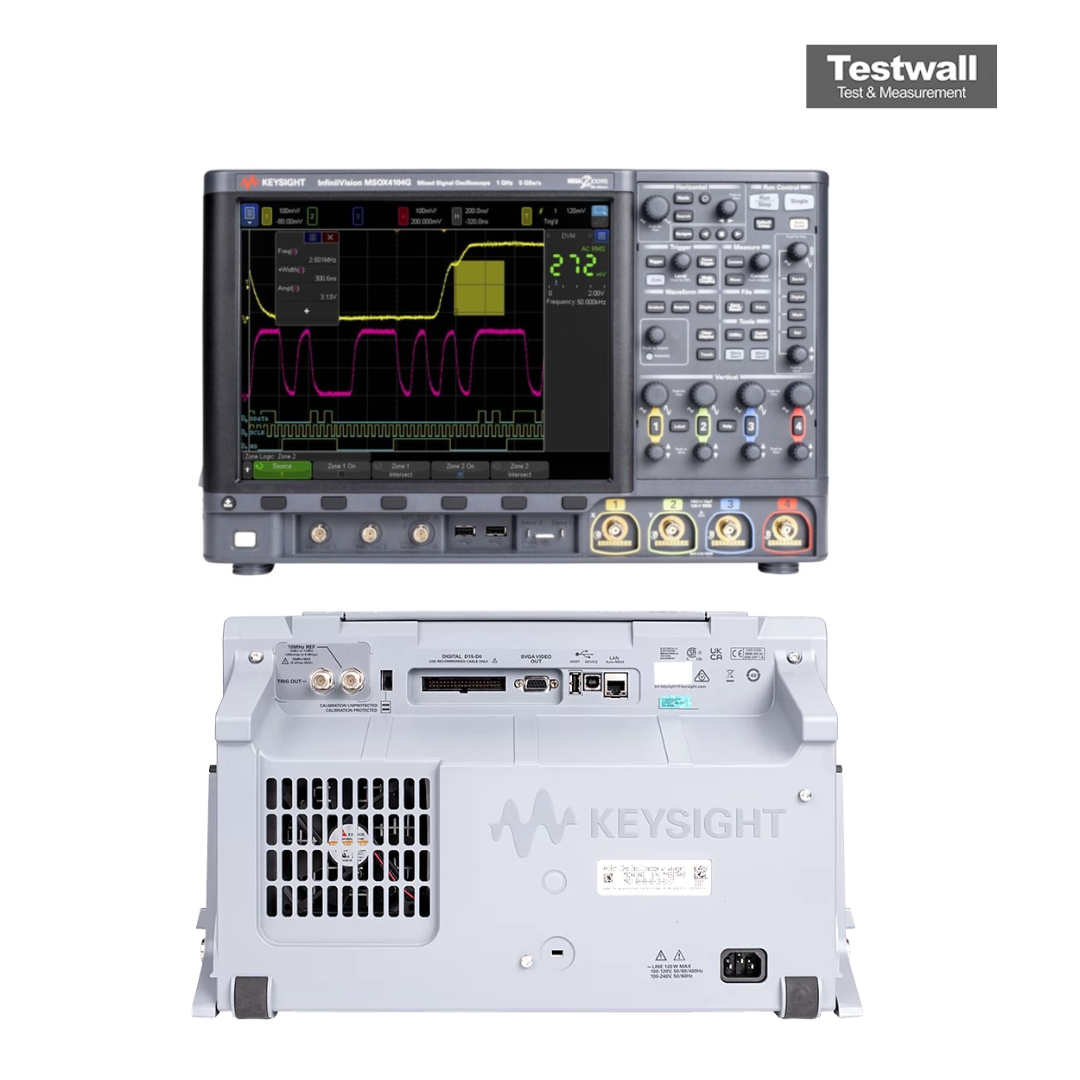

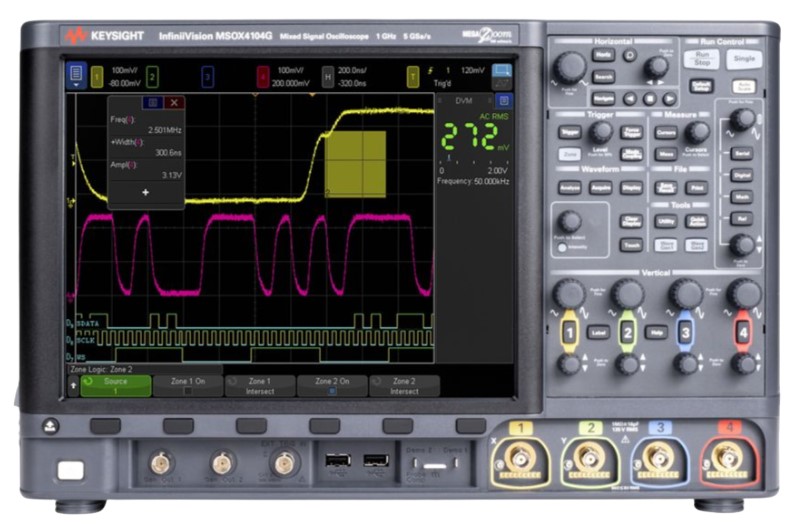

Keysight/Agilent MSOX4104G Oscilloscope
The Keysight/Agilent MSOX4104G Oscilloscope is a four-channel model in the InfiniiVision 4000 X-Series, which offers a high-performance solution for engineers and technicians providing comprehensive capabilities for analyzing both analog and digital signals. The MSOX4104G is equipped with a large, high-resolution touch screen display that makes it easy to view and analyze signals. It's infiniiScan Zone touch triggering feature allows users to quickly isolate and analyze specific signals of interest. The Keysight/Agilent MSOX4104G Oscilloscope also offers a high update rate and deep memory, enabling users to capture and analyze signals.
Keysight/Agilent MSOX4104G Oscilloscope can be upgraded with a variety of optional features including additional bandwidth, dual-ch 20 MHz arbitrary WaveGen, 3-digit DVM, serial trigger and analysis & mask testing at any time. This flexibility allows users to customize the oscilloscope to meet the specific needs of their applications. It captures more data with 4 Mpts memory and standard segmented memory features. Overall, Keysight/Agilent MSOX4104G mixed signal oscilloscope is well suited for a wide range of applications. Its combination of high performance, advanced features, and flexibility make it a excellent choice for professionals who require a reliable and capable oscilloscope.
Specifications for the Keysight/Agilent MSOX4104G Oscilloscope Include:
| No. of channels | 4 analog plus 16 digital |
| Bandwidth (upgradable) | 200, 350, 500 MHz, 1 GHz, 1.5 GHz |
| Maximum sample rate | 5 GSa/s |
| Waveform update rate | > 1,000,000 wfms/sec |
