Keysight (Agilent)

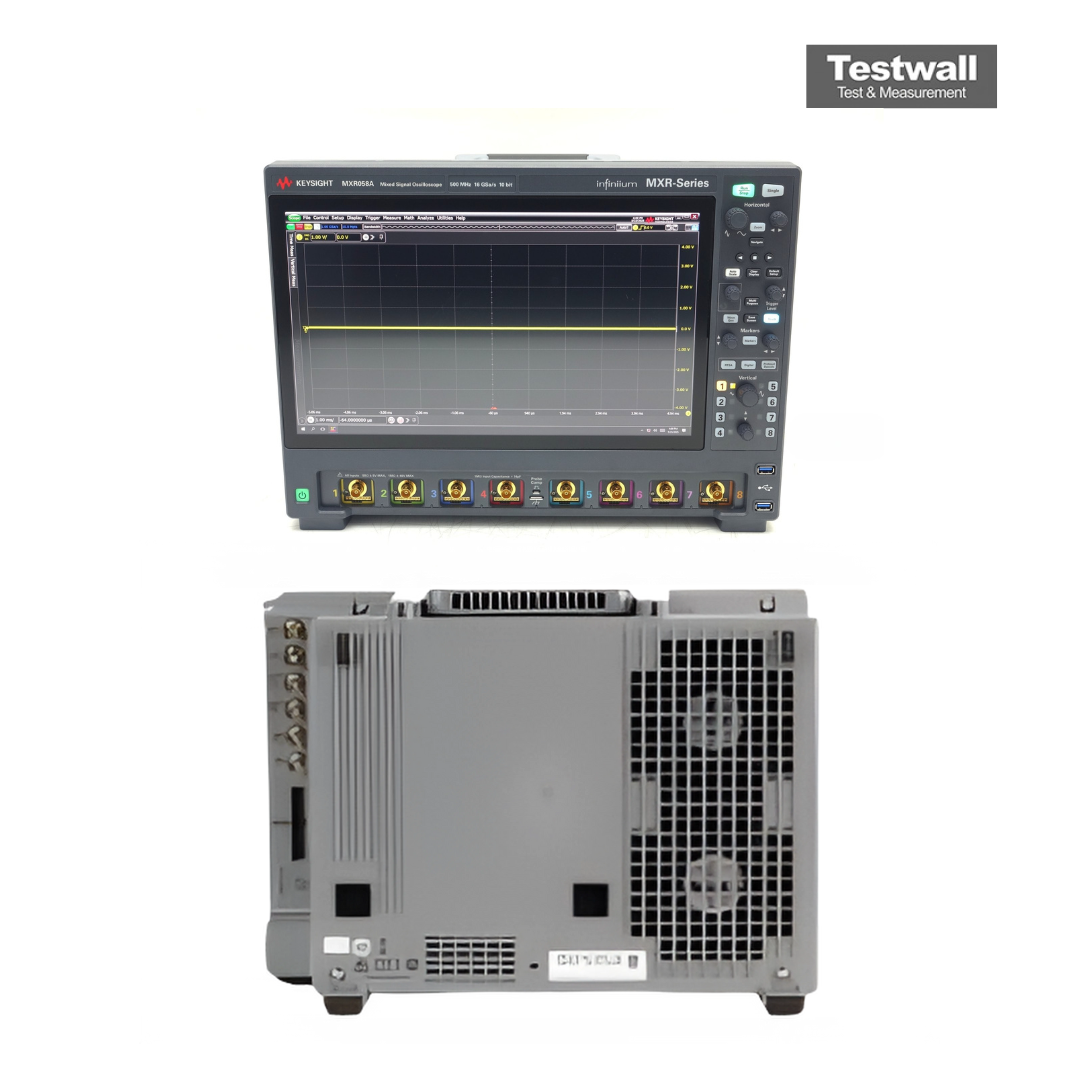

Keysight (Agilent) MXR058A

500MHz 8 Channel 16GS/s Digital Oscilloscope
600 MHz Largeur de bande
8 voies analogiques Nombre de voies
2,5 GSa/s (par voie) Taux d'échantillonnage
800 Mpts (mémoire standard) Profondeur mémoire
8 bits (jusqu'à 12 bits en mode haute résolution) Résolution verticale
Attribut Valeur
Largeur de bande 600 MHz
Nombre de voies 8 voies analogiques
Taux d'échantillonnage 2,5 GSa/s (par voie)
Profondeur mémoire 800 Mpts (mémoire standard)
Résolution verticale 8 bits (jusqu'à 12 bits en mode haute résolution)
Voies numériques 16 voies logiques numériques (MSO intégré)
Écran 15,6 pouces, écran tactile capacitif HD
Sensibilité verticale 1 mV/div à 10 V/div
Fréquence de mise à jour de la forme d'onde Jusqu'à 1 000 000 de formes d'onde par seconde
Connectivité USB, LAN (LXI), DisplayPort, entrées/sorties auxiliaires
Keysight (Agilent) MXR058A Options:
  • MXR058A - MXR000-MSO - 16 digital channels (MSO) with N2756A cable
  • MXR058A - MXR000-WAV - 50 MHz arbitrary waveform generator
  • MXR058A - MXR000-160 - Real-time spectrum analysis 160 MHz and digital down-conversion
  • MXR058A - MXR000-320 - Real-time spectrum analysis 320 MHz and digital down-conversion
  • MXR058A - MXR000-FRE - Frequency extension of RTSA/DDC to 6 GHz
  • MXR058A - MXR000-400 - Memory upgrade to 400 Mpts/ch
  • MXR058A - MXR000-GIG - Memory upgrade to 1.6 Gpts combined flexible memory
  • MXR058A - MXR000-01T - 1 TB removable SSD
  • MXR058A - MXR2RACK - Rackmount kit
  • MXR058A - D9010JITA - EZJit Complete jitter, vertical noise and phase noise analysis
  • MXR058A - D9010SCNA - InfiniiScan zone trigger
  • MXR058A - D9010DMBA - De-embedding (PrecisionProbe / InfiniiSim Basic)
  • MXR058A - D9020ASIA - Advanced signal integrity (equalisation, crosstalk)
  • MXR058A - D9010POWA - Power integrity analysis (rails, PSIJ, PMIC)
  • MXR058A - D9010PWRA - Switch-mode power supply analysis
  • MXR058A - D9010PAMA - PAM-4 analysis
  • MXR058A - D9010UDAA - User defined application (test automation)
  • MXR058A - D9010LSSP - Low-speed serial trigger and decode (I2C, SPI, UART/RS232, JTAG, I2S, etc.)
  • MXR058A - D9010EMBP - Embedded protocol decode (USB 2.0, 10/100 Ethernet, USB-PD)
  • MXR058A - D9010AUTP - Automotive decode (CAN, CAN FD, LIN, FlexRay, SENT)
  • MXR058A - D9020AUTP - 100BASE-T1 automotive Ethernet decode
  • MXR058A - D9010MPLP - MIPI low-speed decode (RFFE, I3C, SPMI)
  • MXR058A - D9010MILP - Military decode (MIL-STD-1553, ARINC 429, SpaceWire)
  • MXR058A - D9011BDLP - Basic protocol decode bundle
  • MXR058A - D9010USBP - USB protocol decode
  • MXR058A - D9010MCDP - MIPI C-PHY/D-PHY (CSI/DSI) decode
Formulaire d'étalonnage Keysight (Agilent) MXR058A

Formulaire de réparation Keysight (Agilent) MXR058A
Maximum file size: 40MB

Le Keysight (Agilent) MXR058A est a high-performance 500 MHz, 8-channel digital oscilloscope featuring 16 GSa/s sample rate and 200 Mpts/channel standard memory. It includes 16 digital channels, 10-bit vertical resolution (up to 16 bits in high-resolution mode), and a 15.6" full HD touch display with dual screen support.

Ce scope de la série Infiniium MXR integrates a 4-digit DVM, 10-digit counter, and supports advanced upgrades such as 6 GHz bandwidth, RTSA, and waveform generator.

Testwall peut fournir le modèle d'occasion Keysight (Agilent) MXR058A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MXR058A.
