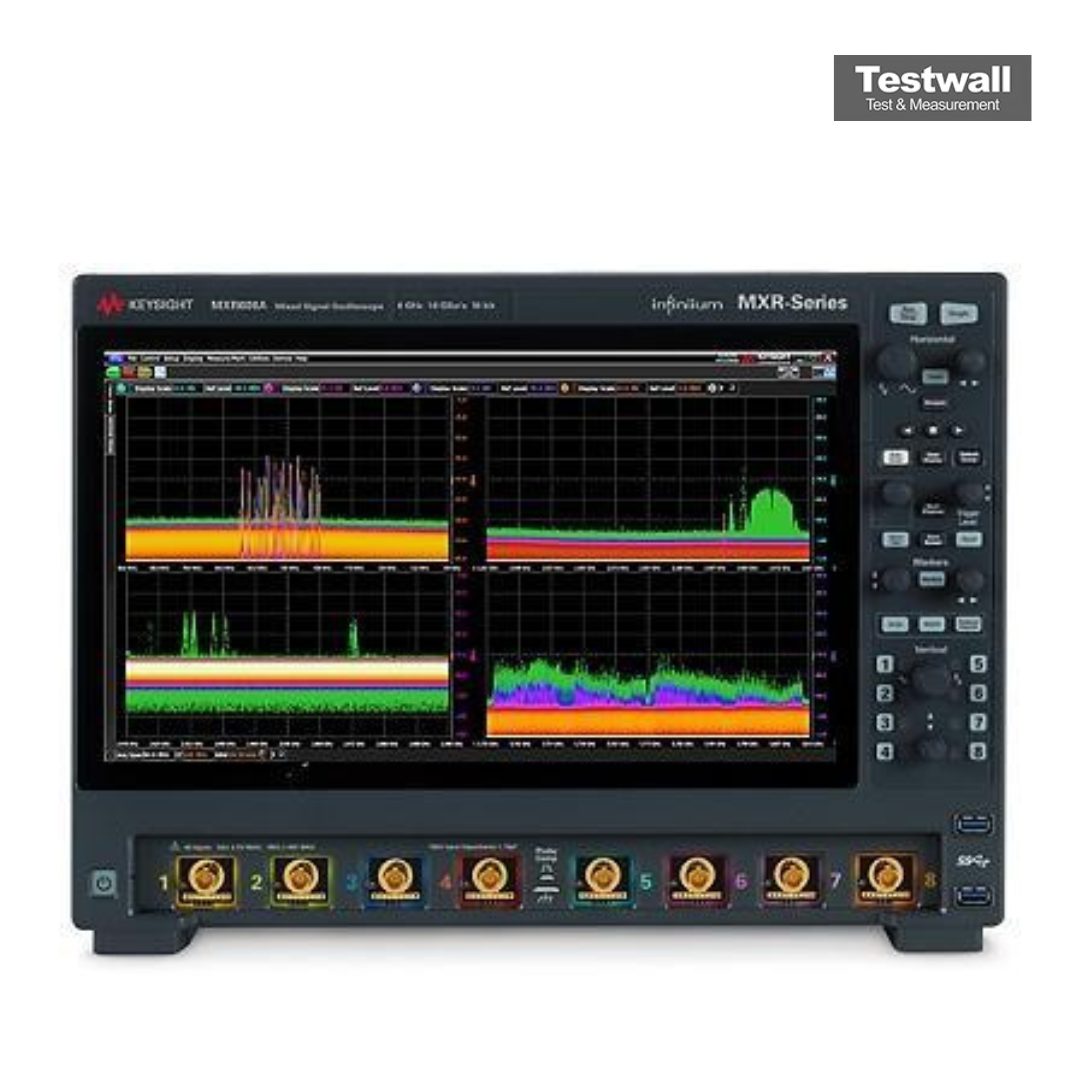

Keysight (Agilent) MXR204A

2GHz 4 Channel 16GS/s Digital Oscilloscope
200 MHz Largeur de bande
4 voies analogiques Nombre de voies
5 GSa/s (sur toutes les voies) Taux d'échantillonnage
800 Mpts (mémoire standard) Profondeur mémoire
12 bits (16 bits en mode haute résolution) Résolution verticale
Attribut Valeur
Largeur de bande 200 MHz
Nombre de voies 4 voies analogiques
Taux d'échantillonnage 5 GSa/s (sur toutes les voies)
Profondeur mémoire 800 Mpts (mémoire standard)
Résolution verticale 12 bits (16 bits en mode haute résolution)
Affichage Écran tactile capacitif 15,6 pouces Full HD (1920 x 1080)
Entrées numériques 16 voies logiques (optionnel via sonde MSO)
Bande passante du générateur de formes d'ondes Générateur de fonctions intégré 20 MHz (optionnel)
Interface et connectivité USB, LAN (LXI), GPIB (optionnel)
Impédance d'entrée 50 Ω ou 1 MΩ (sélectionnable)
Keysight (Agilent) MXR204A Options:
  • MXR204A - MXR28CH - 4 to 8 analogue channel upgrade (service centre)
  • MXR204A - MXR000-MSO - 16 digital channels (MSO) with N2756A cable
  • MXR204A - MXR000-WAV - 50 MHz arbitrary waveform generator
  • MXR204A - MXR000-160 - Real-time spectrum analysis 160 MHz and digital down-conversion
  • MXR204A - MXR000-320 - Real-time spectrum analysis 320 MHz and digital down-conversion
  • MXR204A - MXR000-FRE - Frequency extension of RTSA/DDC to 6 GHz
  • MXR204A - MXR000-400 - Memory upgrade to 400 Mpts/ch
  • MXR204A - MXR000-GIG - Memory upgrade to 1.6 Gpts combined flexible memory
  • MXR204A - MXR000-01T - 1 TB removable SSD
  • MXR204A - MXR2RACK - Rackmount kit
  • MXR204A - D9010JITA - EZJit Complete jitter, vertical noise and phase noise analysis
  • MXR204A - D9010SCNA - InfiniiScan zone trigger
  • MXR204A - D9010DMBA - De-embedding (PrecisionProbe / InfiniiSim Basic)
  • MXR204A - D9020ASIA - Advanced signal integrity (equalisation, crosstalk)
  • MXR204A - D9010POWA - Power integrity analysis (rails, PSIJ, PMIC)
  • MXR204A - D9010PWRA - Switch-mode power supply analysis
  • MXR204A - D9010PAMA - PAM-4 analysis
  • MXR204A - D9010UDAA - User defined application (test automation)
  • MXR204A - D9010LSSP - Low-speed serial trigger and decode (I2C, SPI, UART/RS232, JTAG, I2S, etc.)
  • MXR204A - D9010EMBP - Embedded protocol decode (USB 2.0, 10/100 Ethernet, USB-PD)
  • MXR204A - D9010AUTP - Automotive decode (CAN, CAN FD, LIN, FlexRay, SENT)
  • MXR204A - D9020AUTP - 100BASE-T1 automotive Ethernet decode
  • MXR204A - D9010MPLP - MIPI low-speed decode (RFFE, I3C, SPMI)
  • MXR204A - D9010MILP - Military decode (MIL-STD-1553, ARINC 429, SpaceWire)
  • MXR204A - D9011BDLP - Basic protocol decode bundle
  • MXR204A - D9010USBP - USB protocol decode
  • MXR204A - D9010MCDP - MIPI C-PHY/D-PHY (CSI/DSI) decode
Formulaire d'étalonnage Keysight (Agilent) MXR204A

Formulaire de réparation Keysight (Agilent) MXR204A
Maximum file size: 40MB

Keysight (Agilent) MXR204A 2GHz 4 Channel 16GS/s Digital Oscilloscope Description: 2 GHz Bandwidth 4 Analog Channels 16 Digital Channels Vertical Resolution: 10 bits (up to 16 Bits with high resolution) 16 GSa/s Maximum Sample Rate 200 Mpts/channel of Standard Memory Integrated 4-digit DVM & 10-digit counter The Keysight MXR204A is a 4 Channel 1GHz Analog Bandwidth Infiniium MXR-Series oscilloscope with a maximum sample rate of 16GSa/s. The MXR204A features a 15.6闁艰鲸绮忛崜楣冩 full HD touch screen display with dual screen support. The Infiniium MXR-Series offers up to 6 GHz bandwidth and 16 GSa/s sample rate on each channel (four and eight channel versions are available). An integrated 4 digit DVM and 10 digit counter are installed as standard. Retrofittable options are available to extend the capabilites of the MXR204A even further, including: - Increase analog bandwidth to 6GHz - Increase analog channels to 8 - Add 1.6Gpts / channel 闁艰鲸绮忛崜鍓ф尒鐎涘窅exible闁艰鲸绮忛崜鐐▕ Memory - Add Real Time Spectrum Analyzer - Extend RF Frequency to 6GHz - Add 50MHz Waveform Generator - Add 16 Digital Channels
