Keysight (Agilent)

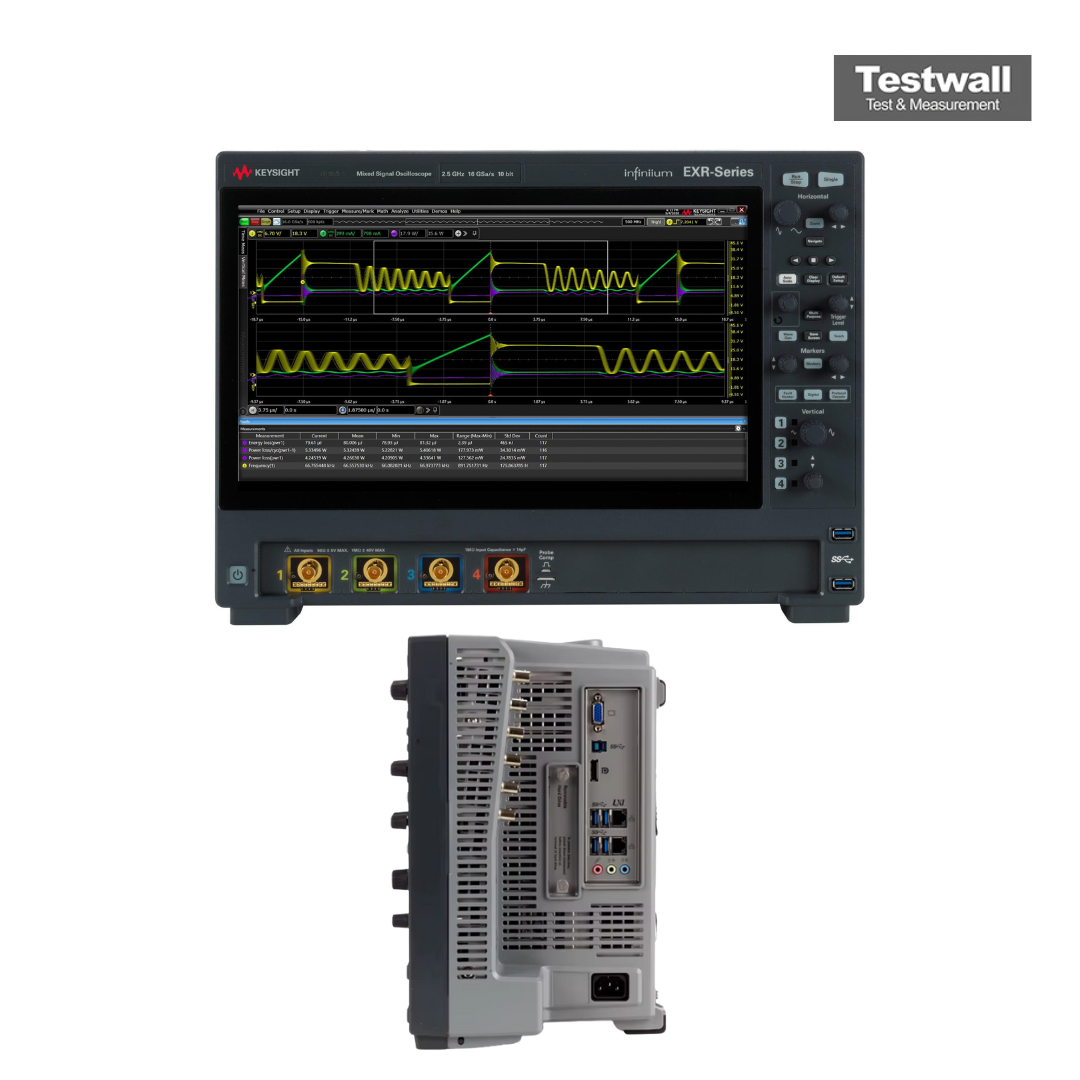

Keysight (Agilent) MXR254A

2.5GHz 4 Channel 16GS/s Digital Oscilloscope
2,5 GHz Largeur de bande
4 voies analogiques Nombre de voies
16 GSa/s Taux d'échantillonnage
800 Mpts (par voie) Profondeur mémoire
8 bits (jusqu'à 12 bits en mode haute résolution) Résolution verticale
Attribut Valeur
Largeur de bande 2,5 GHz
Nombre de voies 4 voies analogiques
Taux d'échantillonnage 16 GSa/s
Profondeur mémoire 800 Mpts (par voie)
Résolution verticale 8 bits (jusqu'à 12 bits en mode haute résolution)
Bruit de plancher moins de 1% de l'échelle pleine
Écran Écran tactile capacitif 15,6 pouces HD
Voies numériques 16 voies logiques (option MSO)
Connectivité USB, LAN (LXI), GPIB (en option)
Système d'exploitation Windows 10 intégré
Keysight (Agilent) MXR254A Options:
  • MXR254A - MXR28CH - 4 to 8 analogue channel upgrade (service centre)
  • MXR254A - MXR000-MSO - 16 digital channels (MSO) with N2756A cable
  • MXR254A - MXR000-WAV - 50 MHz arbitrary waveform generator
  • MXR254A - MXR000-160 - Real-time spectrum analysis 160 MHz and digital down-conversion
  • MXR254A - MXR000-320 - Real-time spectrum analysis 320 MHz and digital down-conversion
  • MXR254A - MXR000-FRE - Frequency extension of RTSA/DDC to 6 GHz
  • MXR254A - MXR000-400 - Memory upgrade to 400 Mpts/ch
  • MXR254A - MXR000-GIG - Memory upgrade to 1.6 Gpts combined flexible memory
  • MXR254A - MXR000-01T - 1 TB removable SSD
  • MXR254A - MXR2RACK - Rackmount kit
  • MXR254A - D9010JITA - EZJit Complete jitter, vertical noise and phase noise analysis
  • MXR254A - D9010SCNA - InfiniiScan zone trigger
  • MXR254A - D9010DMBA - De-embedding (PrecisionProbe / InfiniiSim Basic)
  • MXR254A - D9020ASIA - Advanced signal integrity (equalisation, crosstalk)
  • MXR254A - D9010POWA - Power integrity analysis (rails, PSIJ, PMIC)
  • MXR254A - D9010PWRA - Switch-mode power supply analysis
  • MXR254A - D9010PAMA - PAM-4 analysis
  • MXR254A - D9010UDAA - User defined application (test automation)
  • MXR254A - D9010LSSP - Low-speed serial trigger and decode (I2C, SPI, UART/RS232, JTAG, I2S, etc.)
  • MXR254A - D9010EMBP - Embedded protocol decode (USB 2.0, 10/100 Ethernet, USB-PD)
  • MXR254A - D9010AUTP - Automotive decode (CAN, CAN FD, LIN, FlexRay, SENT)
  • MXR254A - D9020AUTP - 100BASE-T1 automotive Ethernet decode
  • MXR254A - D9010MPLP - MIPI low-speed decode (RFFE, I3C, SPMI)
  • MXR254A - D9010MILP - Military decode (MIL-STD-1553, ARINC 429, SpaceWire)
  • MXR254A - D9011BDLP - Basic protocol decode bundle
  • MXR254A - D9010USBP - USB protocol decode
  • MXR254A - D9010MCDP - MIPI C-PHY/D-PHY (CSI/DSI) decode
Formulaire d'étalonnage Keysight (Agilent) MXR254A

Formulaire de réparation Keysight (Agilent) MXR254A
Maximum file size: 40MB

Keysight (Agilent) MXR254A 2.5GHz 4 Channel 16GS/s Digital Oscilloscope Description: 2.5 GHz Bandwidth 4 Analog Channels 16 Digital Channels Vertical Resolution: 10 bits (up to 16 Bits with high resolution) 16 GSa/s Maximum Sample Rate 200 Mpts/channel of Standard Memory Integrated 4-digit DVM & 10-digit counter The Keysight MXR254A is a 4 Channel 2.5GHz Analog Bandwidth Infiniium MXR-Series oscilloscope with a maximum sample rate of 16GSa/s. The MXR254A features a 15.6闁艰鲸绮忛崜楣冩 full HD touch screen display with dual screen support. The Infiniium MXR-Series offers up to 6 GHz bandwidth and 16 GSa/s sample rate on each channel (four and eight channel versions are available). An integrated 4 digit DVM and 10 digit counter are installed as standard. Retrofittable options are available to extend the capabilites of the MXR254A even further, including: - Increase analog bandwidth to 6GHz - Increase analog channels to 8 - Add 1.6Gpts / channel 闁艰鲸绮忛崜鍓ф尒鐎涘窅exible闁艰鲸绮忛崜鐐▕ Memory - Add Real Time Spectrum Analyzer - Extend RF Frequency to 6GHz - Add 50MHz Waveform Generator - Add 16 Digital Channels
