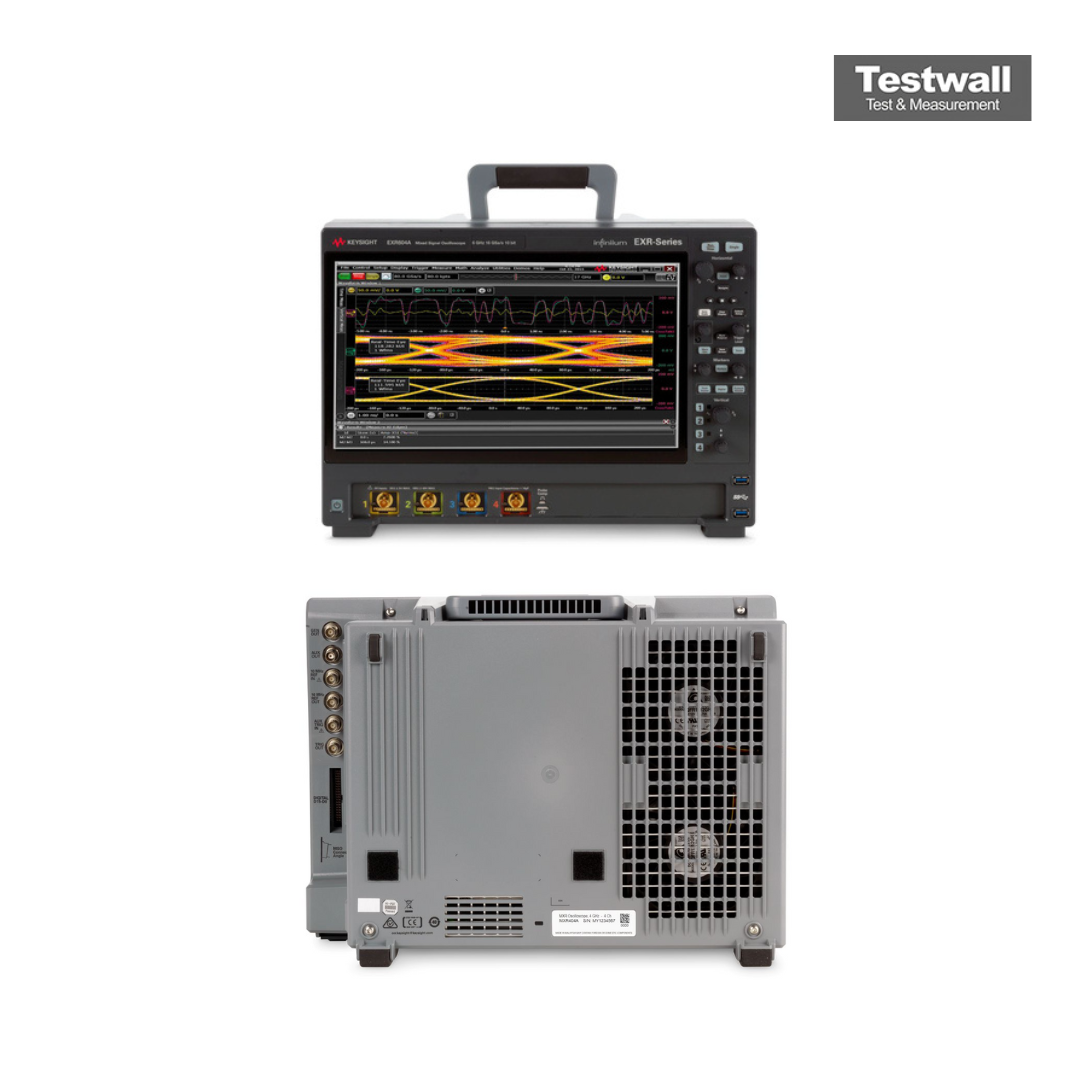

Keysight (Agilent) MXR404A

4GHz 4 Channel 16GS/s Digital Oscilloscope
4 GHz Largeur de bande
4 voies Nombre de voies
16 GSa/s Taux d'échantillonnage
800 Mpts par voie Profondeur mémoire
8 bits (jusqu'à 12 bits en mode haute résolution) Résolution verticale
Attribut Valeur
Largeur de bande 4 GHz
Nombre de voies 4 voies
Taux d'échantillonnage 16 GSa/s
Profondeur mémoire 800 Mpts par voie
Résolution verticale 8 bits (jusqu'à 12 bits en mode haute résolution)
Sensibilité verticale 1 mV/div à 10 V/div
Fréquence de mise à jour de la forme d'onde jusqu'à 1 000 000 formes d'onde par seconde
Taille de l'écran 15,6 pouces (écran tactile capacitif)
Bruit de plancher moins de 1 mV RMS (typique)
Connectivité USB, LAN (LXI), GPIB (en option)
Keysight (Agilent) MXR404A Options:
  • MXR404A - MXR28CH - 4 to 8 analogue channel upgrade (service centre)
  • MXR404A - MXR000-MSO - 16 digital channels (MSO) with N2756A cable
  • MXR404A - MXR000-WAV - 50 MHz arbitrary waveform generator
  • MXR404A - MXR000-160 - Real-time spectrum analysis 160 MHz and digital down-conversion
  • MXR404A - MXR000-320 - Real-time spectrum analysis 320 MHz and digital down-conversion
  • MXR404A - MXR000-FRE - Frequency extension of RTSA/DDC to 6 GHz
  • MXR404A - MXR000-400 - Memory upgrade to 400 Mpts/ch
  • MXR404A - MXR000-GIG - Memory upgrade to 1.6 Gpts combined flexible memory
  • MXR404A - MXR000-01T - 1 TB removable SSD
  • MXR404A - MXR2RACK - Rackmount kit
  • MXR404A - D9010JITA - EZJit Complete jitter, vertical noise and phase noise analysis
  • MXR404A - D9010SCNA - InfiniiScan zone trigger
  • MXR404A - D9010DMBA - De-embedding (PrecisionProbe / InfiniiSim Basic)
  • MXR404A - D9020ASIA - Advanced signal integrity (equalisation, crosstalk)
  • MXR404A - D9010POWA - Power integrity analysis (rails, PSIJ, PMIC)
  • MXR404A - D9010PWRA - Switch-mode power supply analysis
  • MXR404A - D9010PAMA - PAM-4 analysis
  • MXR404A - D9010UDAA - User defined application (test automation)
  • MXR404A - D9010LSSP - Low-speed serial trigger and decode (I2C, SPI, UART/RS232, JTAG, I2S, etc.)
  • MXR404A - D9010EMBP - Embedded protocol decode (USB 2.0, 10/100 Ethernet, USB-PD)
  • MXR404A - D9010AUTP - Automotive decode (CAN, CAN FD, LIN, FlexRay, SENT)
  • MXR404A - D9020AUTP - 100BASE-T1 automotive Ethernet decode
  • MXR404A - D9010MPLP - MIPI low-speed decode (RFFE, I3C, SPMI)
  • MXR404A - D9010MILP - Military decode (MIL-STD-1553, ARINC 429, SpaceWire)
  • MXR404A - D9011BDLP - Basic protocol decode bundle
  • MXR404A - D9010USBP - USB protocol decode
  • MXR404A - D9010MCDP - MIPI C-PHY/D-PHY (CSI/DSI) decode
Formulaire d'étalonnage Keysight (Agilent) MXR404A

Formulaire de réparation Keysight (Agilent) MXR404A
Maximum file size: 40MB

Keysight (Agilent) MXR404A 4GHz 4 Channel 16GS/s Digital Oscilloscope Description: 4 GHz Bandwidth 4 Analog Channels 16 Digital Channels Vertical Resolution: 10 bits (up to 16 Bits with high resolution) 16 GSa/s Maximum Sample Rate 200 Mpts/channel of Standard Memory Integrated 4-digit DVM & 10-digit counter The Keysight MXR404A is a 4 Channel 4GHz Analog Bandwidth Infiniium MXR-Series oscilloscope with a maximum sample rate of 16GSa/s. The MXR404A features a 15.6闁艰鲸绮忛崜楣冩 full HD touch screen display with dual screen support. The Infiniium MXR-Series offers up to 6 GHz bandwidth and 16 GSa/s sample rate on each channel (four and eight channel versions are available). An integrated 4 digit DVM and 10 digit counter are installed as standard. Retrofittable options are available to extend the capabilites of the MXR404A even further, including: - Increase analog bandwidth to 6GHz - Increase analog channels to 8 - Add 1.6Gpts / channel 闁艰鲸绮忛崜鍓ф尒鐎涘窅exible闁艰鲸绮忛崜鐐▕ Memory - Add Real Time Spectrum Analyzer - Extend RF Frequency to 6GHz - Add 50MHz Waveform Generator - Add 16 Digital Channels
