Keysight (Agilent) MXR604A
6GHz 4 Channel 16GS/s Digital Oscilloscope
600 MHz Largeur de bande
4 voies analogiques Nombre de voies
5 GSa/s (sur toutes les voies) Taux d'échantillonnage
800 Mpts (standard), jusqu'à 2 Gpts (en option) Mémoire d'acquisition
8 bits (jusqu'à 12 bits en mode haute résolution) Résolution verticale

| Attribut | Valeur |
|---|---|
| Largeur de bande | 600 MHz |
| Nombre de voies | 4 voies analogiques |
| Taux d'échantillonnage | 5 GSa/s (sur toutes les voies) |
| Mémoire d'acquisition | 800 Mpts (standard), jusqu'à 2 Gpts (en option) |
| Résolution verticale | 8 bits (jusqu'à 12 bits en mode haute résolution) |
| Sensibilité verticale | 1 mV/div à 10 V/div |
| Base de temps | 1 ps/div à 20 s/div |
| Taille de l'écran | 15,6 pouces, écran tactile haute définition (1920 x 1080) |
| Taux de capture des formes d'onde | Jusqu'à 1 000 000 formes d'onde par seconde |
| Interface et connectivité | USB, LAN (LXI), GPIB (en option), sortie DisplayPort |
Keysight (Agilent) MXR604A Options:
- MXR604A - MXR28CH - 4 to 8 analogue channel upgrade (service centre)
- MXR604A - MXR000-MSO - 16 digital channels (MSO) with N2756A cable
- MXR604A - MXR000-WAV - 50 MHz arbitrary waveform generator
- MXR604A - MXR000-160 - Real-time spectrum analysis 160 MHz and digital down-conversion
- MXR604A - MXR000-320 - Real-time spectrum analysis 320 MHz and digital down-conversion
- MXR604A - MXR000-FRE - Frequency extension of RTSA/DDC to 6 GHz
- MXR604A - MXR000-400 - Memory upgrade to 400 Mpts/ch
- MXR604A - MXR000-GIG - Memory upgrade to 1.6 Gpts combined flexible memory
- MXR604A - MXR000-01T - 1 TB removable SSD
- MXR604A - MXR2RACK - Rackmount kit
- MXR604A - D9010JITA - EZJit Complete jitter, vertical noise and phase noise analysis
- MXR604A - D9010SCNA - InfiniiScan zone trigger
- MXR604A - D9010DMBA - De-embedding (PrecisionProbe / InfiniiSim Basic)
- MXR604A - D9020ASIA - Advanced signal integrity (equalisation, crosstalk)
- MXR604A - D9010POWA - Power integrity analysis (rails, PSIJ, PMIC)
- MXR604A - D9010PWRA - Switch-mode power supply analysis
- MXR604A - D9010PAMA - PAM-4 analysis
- MXR604A - D9010UDAA - User defined application (test automation)
- MXR604A - D9010LSSP - Low-speed serial trigger and decode (I2C, SPI, UART/RS232, JTAG, I2S, etc.)
- MXR604A - D9010EMBP - Embedded protocol decode (USB 2.0, 10/100 Ethernet, USB-PD)
- MXR604A - D9010AUTP - Automotive decode (CAN, CAN FD, LIN, FlexRay, SENT)
- MXR604A - D9020AUTP - 100BASE-T1 automotive Ethernet decode
- MXR604A - D9010MPLP - MIPI low-speed decode (RFFE, I3C, SPMI)
- MXR604A - D9010MILP - Military decode (MIL-STD-1553, ARINC 429, SpaceWire)
- MXR604A - D9011BDLP - Basic protocol decode bundle
- MXR604A - D9010USBP - USB protocol decode
- MXR604A - D9010MCDP - MIPI C-PHY/D-PHY (CSI/DSI) decode

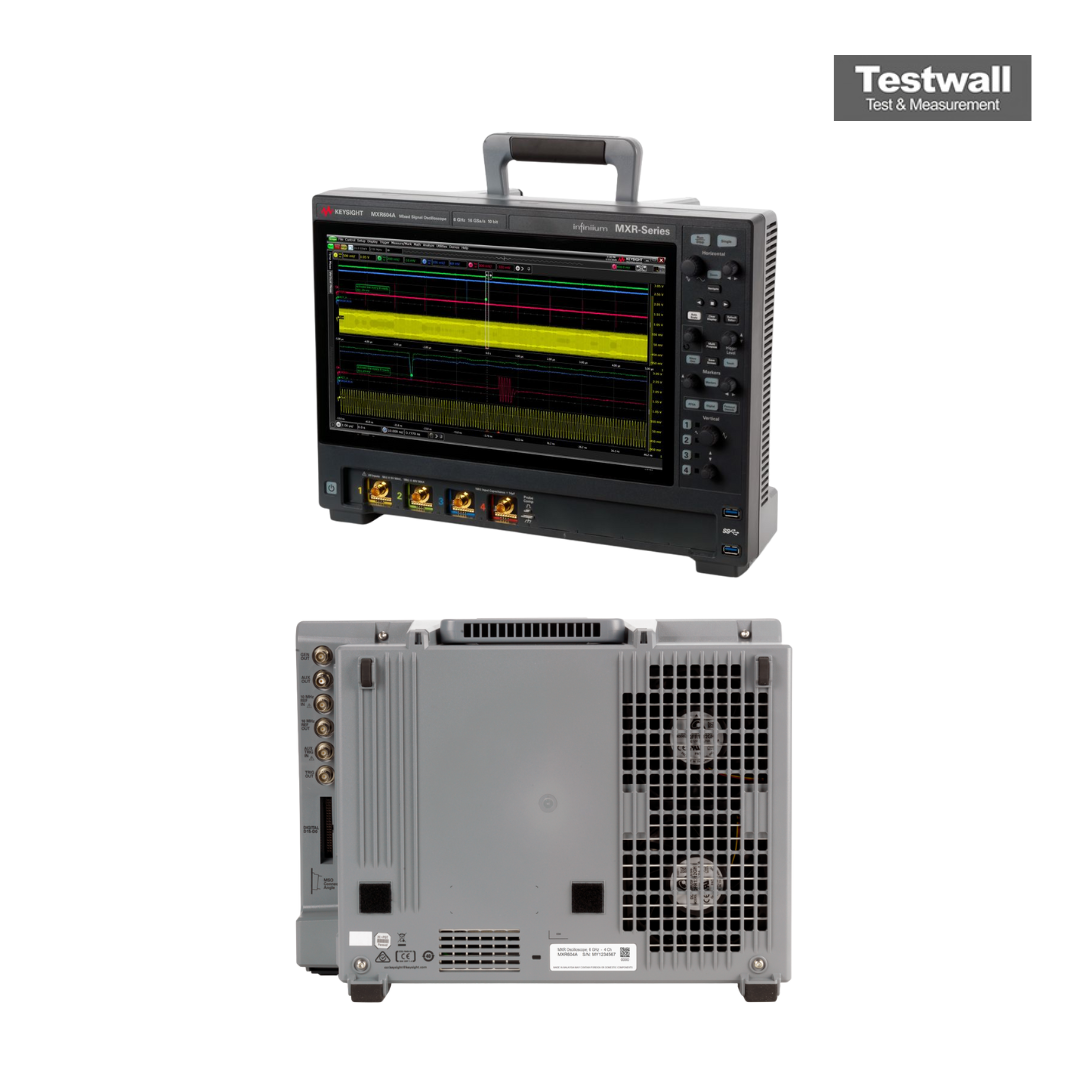

Keysight (Agilent) MXR604A 6GHz 4 Channel 16GS/s Digital Oscilloscope Description: 6 GHz Bandwidth 4 Analog Channels 16 Digital Channels Vertical Resolution: 10 bits (up to 16 Bits with high resolution) 16 GSa/s Maximum Sample Rate 200 Mpts/channel of Standard Memory Integrated 4-digit DVM & 10-digit counter The Keysight MXR604A is a 4 Channel 6GHz Analog Bandwidth Infiniium MXR-Series oscilloscope with a maximum sample rate of 16GSa/s. The MXR604A features a 15.6闁艰鲸绮忛崜楣冩 full HD touch screen display with dual screen support. The Infiniium MXR-Series offers up to 6 GHz bandwidth and 16 GSa/s sample rate on each channel (four and eight channel versions are available). An integrated 4 digit DVM and 10 digit counter are installed as standard. Retrofittable options are available to extend the capabilites of the MXR604A even further, including: - Increase analog channels to 8 - Add 1.6Gpts / channel 闁艰鲸绮忛崜鍓ф尒鐎涘窅exible闁艰鲸绮忛崜鐐▕ Memory - Add Real Time Spectrum Analyzer - Extend RF Frequency to 6GHz - Add 50MHz Waveform Generator - Add 16 Digital Channels
