Keysight (Agilent) N1000A
| Attribut | Valeur |
|---|---|
| Type d'instrument | Démultiplexeur de canaux optiques (OC-Demux) |
| Longueur d'onde de fonctionnement | 1260 nm à 1640 nm |
| Nombre de canaux | Jusqu'à 4 canaux optiques simultanés |
| Compatibilité des modules | Compatible avec les modules de détection Keysight série N109x |
| Interface de connexion | Connecteurs optiques FC/APC |
| Perte d'insertion | Inférieure à 2,5 dB (typique) |
| Diaphonie optique | Inférieure à -40 dB |
| Alimentation électrique | Alimenté via le châssis Keysight compatible (ex. N4903B) |
| Dimensions du module | Format demi-rack, compatible châssis modulaire Keysight |
| Applications principales | Test de récepteurs optiques, caractérisation de composants WDM, mesures de sensibilité |
Keysight (Agilent) N1000A Options:
- N1000A - STB - Standard timebase
- N1000A - LOJ - Low jitter timebase
- N1000A - PTB - Internal precision timebase (requires option LOJ)
- N1000A - PLK - Pattern lock trigger hardware
- N1000A - GPI - GPIB card interface
- N1000A - C0C - Certificate of calibration
- N1000A - UK6 - Commercial calibration certificate with test data
- N1010100A - R&D package for FlexDCA (requires pattern lock capability)
- N1010200A - Manufacturing package for FlexDCA (requires pattern lock capability)
- N1010300A - Signal integrity package for FlexDCA
| Model | N1000A |
|---|

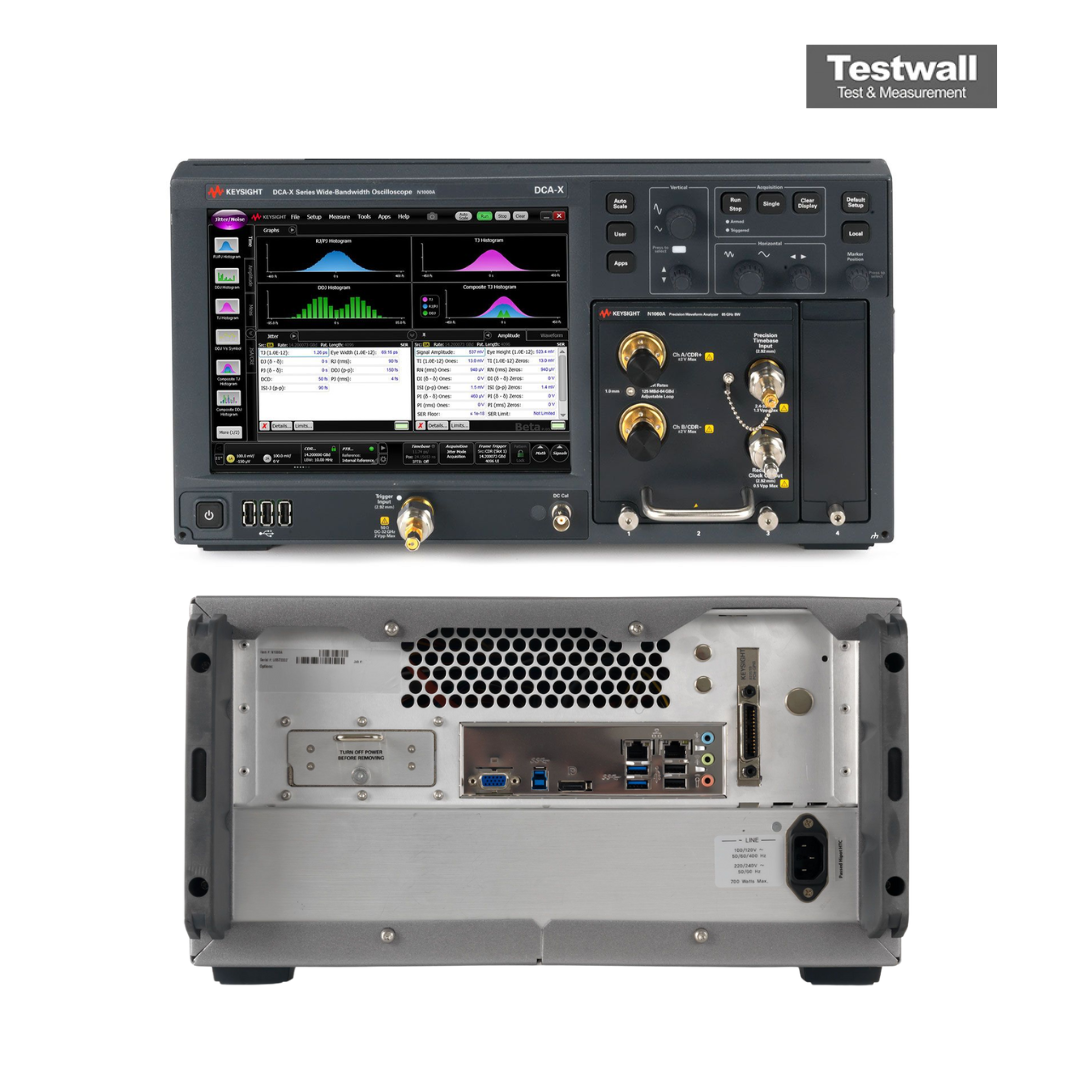

Keysight (Agilent) N1000A DCA-X Wide-Bandwidth Oscilloscope Mainframe
The Keysight N1000A DCA-X oscilloscope performs precision measurements on high speed digital designs from 50 MBd to more than 80 GBd on up to 16 channels simultaneously. Applications include optical transceiver design and production test, electrical ASIC/FPGA/IC design and characterization, serial bus characterization, and measurements and trouble-shooting via TDR/TDT and S-parameter measurements of channels, cables and PCBs.
Users configure the Keysight N1000A DCA-X mainframe by selecting from a variety of plug-in modules that perform precision optical, electrical, and TDR/TDT measurements. Select specific modules to obtain the desired bandwidth, filtering, and sensitivity that match your measurement needs. Solutions that can be combined with or used alongside the DCA-X, including clock recovery, stand-alone Digital Communication Analyzers (DCA-M) and software. The N1000A user interface and operating systemis identical to the FlexDCA interface of the DCA-Mmodules (over a simple USB2.0 or 3.0 connection) and N1010A FlexDCA on a PC.
Specifications for the Keysight (Agilent) N1000A DCA-X Wide-Bandwidth Oscilloscope Mainframe Include:
| Bandwidth | >110 GHz |
| Record length | 2 to 256M samples/waveform |
| Module Type | Optical, Electrical, TDR |
