Keysight (Agilent)
Keysight (Agilent) N1060A
Precision Waveform Analyzer
86 GHz Largeur de bande
2 canaux Nombre de canaux
-18 dBm (typique) Sensibilité optique
750 nm à 1650 nm Longueur d'onde d'entrée
4,1 ps (typique) Temps de montée
| Attribut | Valeur |
|---|---|
| Largeur de bande | 86 GHz |
| Nombre de canaux | 2 canaux |
| Sensibilité optique | -18 dBm (typique) |
| Longueur d'onde d'entrée | 750 nm à 1650 nm |
| Temps de montée | 4,1 ps (typique) |
| Puissance d'entrée maximale | +10 dBm |
| Interface de connecteur optique | Connecteur FC/PC |
| Plage de température de fonctionnement | 0 °C à +55 °C |
| Alimentation électrique | 100 à 240 V CA, 50/60 Hz |
| Interface de communication | USB, LAN (LXI), GPIB |
Keysight (Agilent) N1060A Options:
- N1060A - 050 - Two 50 GHz channels
- N1060A - 085 - Two 85 GHz channels
- N1060A - 216 - Supported input rates: 125 MBd to 16 GBd
- N1060A - 232 - Supported input rates: 125 MBd to 32 GBd
- N1060A - 264 - Supported input rates: 125 MBd to 64 GBd
- N1060A - EVA - Integrated variable equalizer
- N1060A - JSA - Jitter spectrum analysis and clock recovery emulation
- N1060A - PTB - Precision timebase, ultra-low random jitter
- N1060A - C0C - Certificate of calibration
- N1060A - UK6 - Commercial calibration certificate with test data
- N1060A - A1F - Two 1.0 mm female to 1.0 mm female adapters
- N1060A - CA1 - Cable pair, 1.0 mm
- N1060A - CA2 - Cable pair (matched), 2.4 mm, 60 cm
- N1060A - DC2 - Two DC blocks, 2.4 mm, 50KHz - 50GHz
- N1060A - DC8 - Two DC blocks, 1.85 mm, 700KHz-67GHz
| Model | N1060A |
|---|

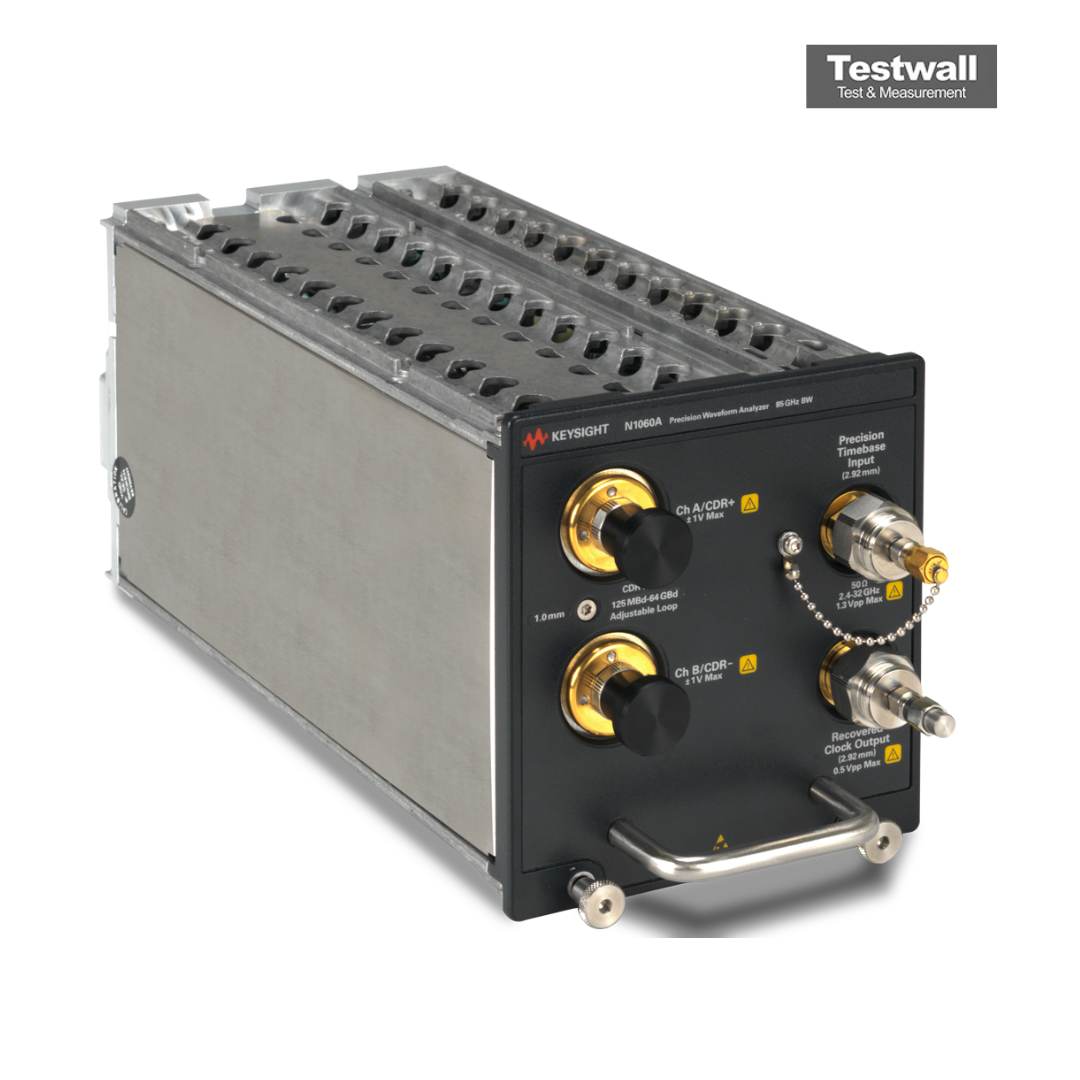

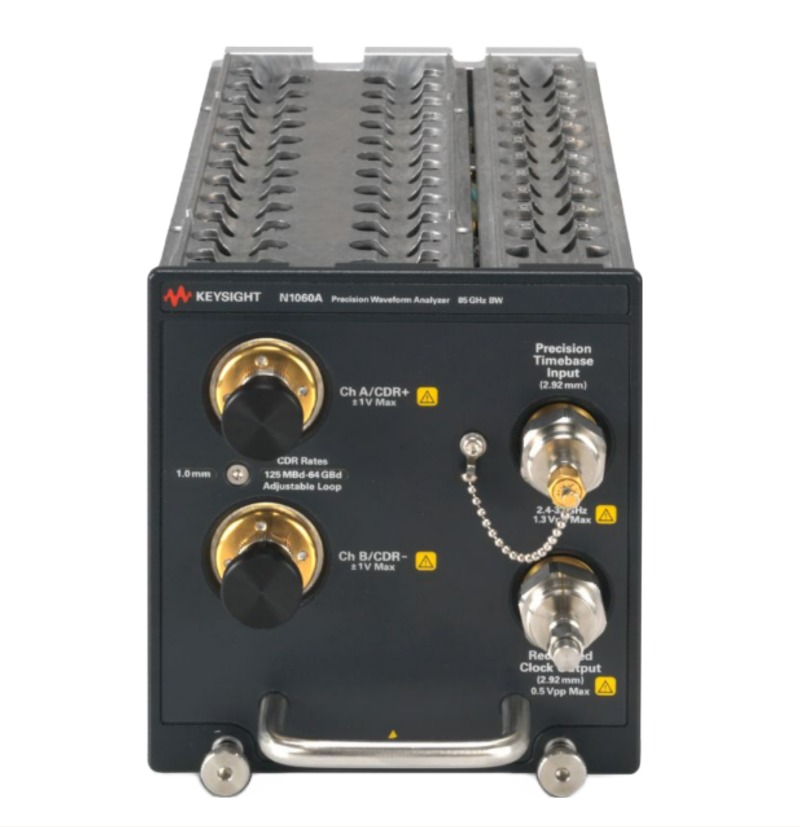

Keysight (Agilent) N1060A Precision Waveform Analyzer
The N1060A precision Waveform Analyzer is a three-slot wide module that combines two electrical channels with a clock recovery (CDR) and a precision timebase (PTB). Integration minimizes path delay differences between the CDR, PTB and the samplers, resulting in more accurate jitter measurements.
€¢ 50 or 85 GHz bandwidth
€¢ 16, 32 or 64 GBd NRZ and PAM4 clock recovery
€¢ Jitter Spectrum Analysis and Clock Recovery Emulation
€¢ Electrical inputs: 1.0 mm male
€¢ Ships with 1.0 female to 1.85 female and 1.0 female to 2.92 female adapters
Specifications for the Keysight (Agilent) N1060A Precision Waveform Analyzer Include:
| Min SIRC Freq (option 050) | 25 GHz |
| Max SIRC Freq (option 050) | 60 GHz |
| Min SIRC Freq (option 085) | 10 GHz |
| Max SIRC Freq (option 085) | 75 GHz |
