Keysight (Agilent) N2802A
| Attribut | Valeur |
|---|---|
| Largeur de bande | 1,5 GHz |
| Taux d'échantillonnage | 5 GSa/s |
| Résolution verticale | 8 bits |
| Nombre de canaux | 2 canaux analogiques |
| Profondeur mémoire | 100 Mpts (points par canal) |
| Sensibilité verticale | 1 mV/div à 5 V/div |
| Base de temps | 200 ps/div à 50 s/div |
| Interface de connexion | USB, LAN (LXI), GPIB |
| Taille de l'écran | 12,1 pouces (écran tactile XGA) |
| Tension d'alimentation | 100 – 240 V CA, 50/60 Hz |
Keysight (Agilent) N2802A Options:
- N2803A - N2803A - 30 GHz InfiniiMax III probe amplifier
- N2802A - N2802A - 25 GHz InfiniiMax III probe amplifier
- N7003A - N7003A - 20 GHz InfiniiMax III+ probe amplifier
- N2801A - N2801A - 20 GHz InfiniiMax III probe amplifier
- N7002A - N7002A - 16 GHz InfiniiMax III+ probe amplifier
- N2800A - N2800A - 16 GHz InfiniiMax III probe amplifier
- N7001A - N7001A - 13 GHz InfiniiMax III+ probe amplifier
- N2832A - N2832A - 13 GHz InfiniiMax III+ probe amplifier
- N7000A - N7000A - 8 GHz InfiniiMax III+ probe amplifier
- N2831A - N2831A - 8 GHz InfiniiMax III+ probe amplifier
- N2830A - N2830A - 4 GHz InfiniiMax III+ probe amplifier
- N2848A - N2848A - InfiniiMax III QuickTip probe head
- N2849A - N2849A - InfiniiMax III QuickTip tips (set of 4)
- N5445A - N5445A - InfiniiMax III browser head
- N5476A - N5476A - Replacement browser probe tips (set of 4)
- N5439A - N5439A - InfiniiMax III ZIF probe head
- N2838A - N2838A - PC board ZIF tips 450 Ω (set of 5 with plastic sporks)
- N5440A - N5440A - Ceramic ZIF tips 450 Ω (set of 5 with plastic sporks)
- N5447A - N5447A - Ceramic ZIF tips 200 Ω (set of 5 with plastic sporks)
- N5444A - N5444A - InfiniiMax III 2.92 mm/3.5 mm/SMA probe head
- N5448B - N5448B - Phase matched cable pair, 25 cm, 2.92 mm (m) to 2.92 mm (m)
- N2823A - N2823A - Phase matched cable pair, 1 m, 2.92 mm (m) to 2.92 mm (m)
- N2836A - N2836A - InfiniiMax III 26 GHz solder-in probe head
- N2836A - 68701 - Damping resistor replacement tips for N2836A/MX0109A
- N2835A - N2835A - InfiniiMax III differential connectivity kit
- MX0109A - MX0109A - InfiniiMax III 26 GHz Extreme temperature solder-in probe head
- N5442A - N5442A - Precision BNC adapter (50 Ω)
- N5449A - N5449A - High impedance probe adapter (includes N2873A 500 MHz 10:1 passive probe)
- N5477A - N5477A - Sampling scope adapter for InfiniiMax III amp with Keysight 86100C DCA-J
- N1022B - N1022B - Probe adapter for InfiniiMax III+ amp with 86100C DCA-J sampling scope
- MX0104A - MX0104A - Performance verification and deskew fixture for InfiniiMax III and III+ > 13 GHz
- MX0104A - 001 - Plastic stand option for MX0104A
- N2787A - N2787A - 3D probe positioner option for MX0104A / hands-free probing
- E2655C - E2655C - Performance verification and deskew fixture for InfiniiMax III+ <=13 GHz and InfiniiMax I/II
- N2852A - N2852A - AutoProbe II to AutoProbe III interface adapter for Infiniium UXR Series
- N5446A - 001 - 16 to 20 GHz bandwidth upgrade (InfiniiMax III only)
- N5446A - 002 - 20 to 25 GHz bandwidth upgrade (InfiniiMax III only)
- N5446A - 003 - 25 to 30 GHz bandwidth upgrade (InfiniiMax III only)
- N5446A - 004 - 16 to 25 GHz bandwidth upgrade (InfiniiMax III only)
- N5446A - 005 - 16 to 30 GHz bandwidth upgrade (InfiniiMax III only)
- N5446A - 006 - 20 to 30 GHz bandwidth upgrade (InfiniiMax III only)
- N5450B - N5450B - Extreme temperature extension cable, 1 m long
- N2812B - N2812B - High performance input cable, 2.92 mm connectors, 1 m length
- MV-23 - MV-23 - Carson Optical MagniVisor
- N2851A - N2851A - QuickTip probe head for InfiniiMax I/II
| Model | N2802A |
|---|

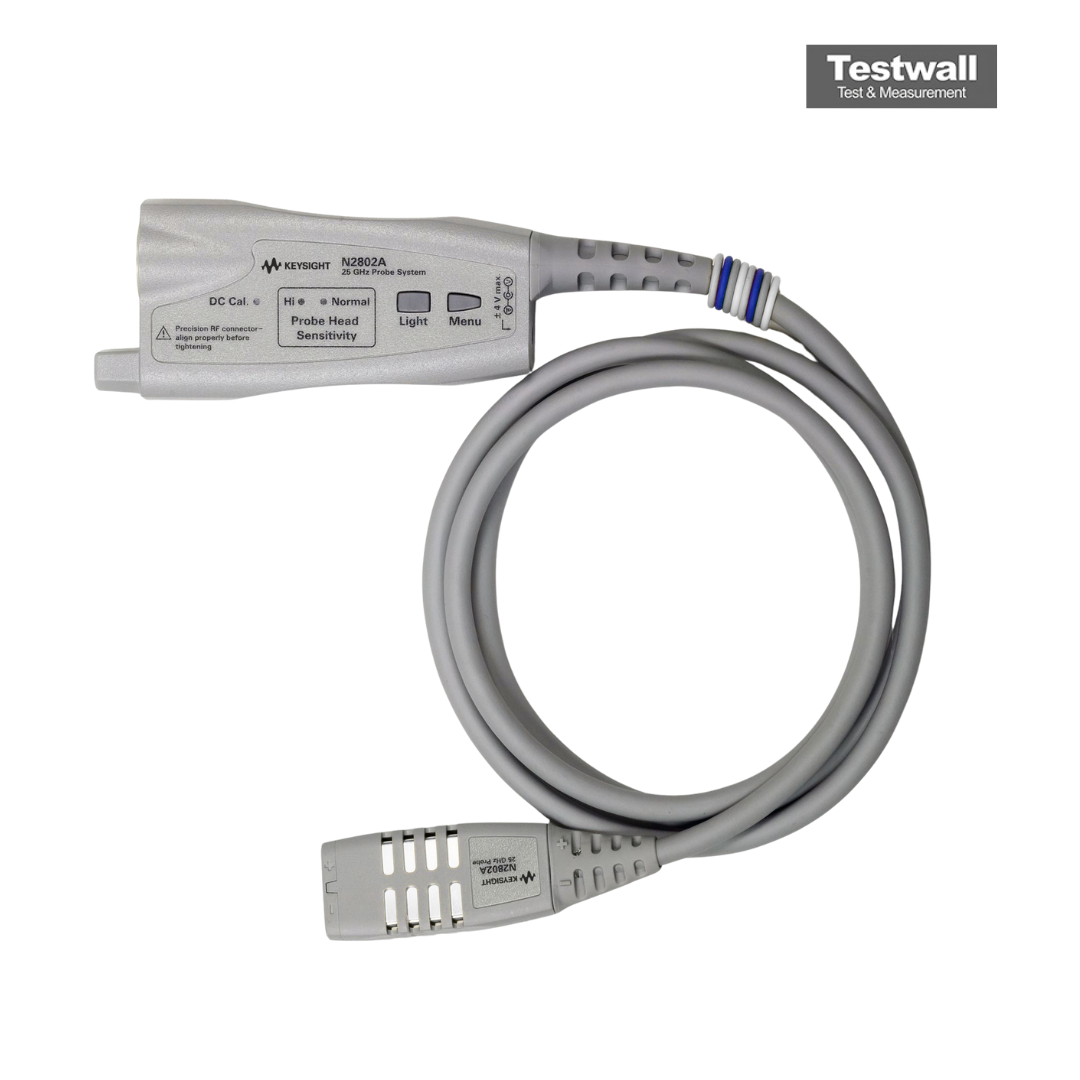

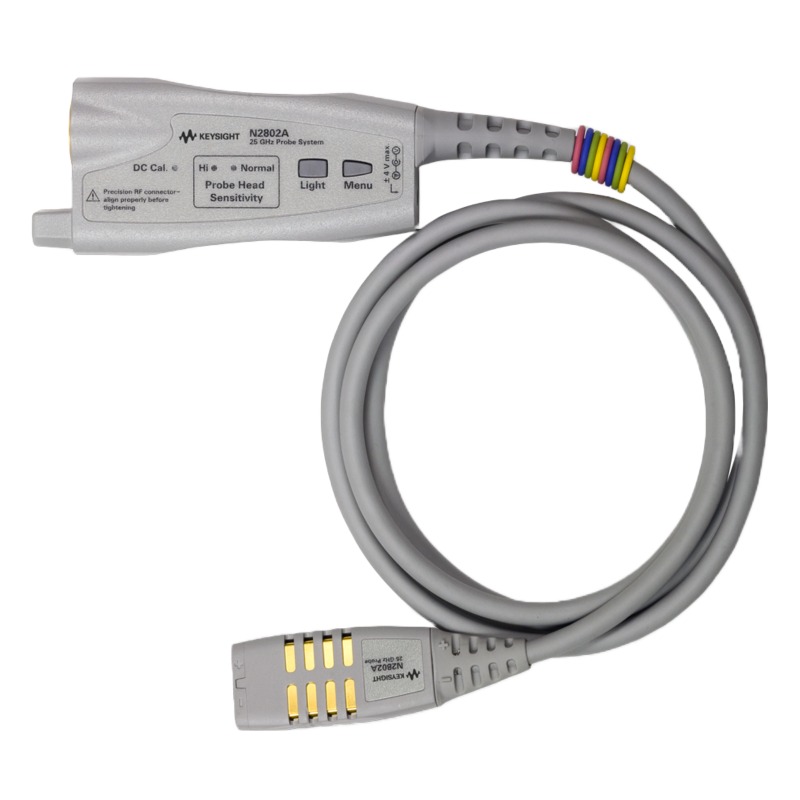

KEYSIGHT N2802A InfiniiMax III Probe Amplifier
The Keysight N2802A InfiniiMax III Probe Amplifier offers you the highest performance available for measuring differential and single-ended signals, with flexible connectivity solutions for today's high-density ICs and circuit boards. A proprietary 200 GHz fT InP (indium phosphide) IC process with backside ground vias and novel thick film technology is utilized to accommodate your highest performance needs and is unmatched by any product in the market. The Keysight N2802A InfiniiMax III provides the highest bandwidth and incredibly low loading to allow for a new level of signal fidelity and accuracy.
The Keysight N2802A InfiniiMax III Probe Amplifier contains its unique S-parameters, and this frequency response data is used with the S-parameters of the various probe heads to further flatten the probe's magnitude and phase response for accuracy. The ability to correct a specific probe amplifier's response results in a more accurate probe correction, which yields a more accurate measurement. The InfiniiMax III system offers the world's first fully upgradable probe amplifier, knowing that in the future, you can upgrade the amplifier to higher bandwidths (30 GHz) at a fraction of the cost of a new probe amplifier.
Specifications for the KEYSIGHT N2802A InfiniiMax III Probe Amplifier Include:
| Bandwidth | 25 GHz, Tr = 17.4 psec |
| DC Attenuation Ratio | 6:1 (3:1 with 200 Ω ZIF tip) |
| Offset Range | ±16 V when probing a single-ended signal |
| Input Capacitance | C diff = 32 fF, C se = 48 fF (with ZIF probe head) |
