Keysight (Agilent) N9342CN
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 100 kHz à 7 GHz |
| Niveau d'affichage moyen du bruit (DANL) | -161 dBm/Hz (typique, préamplificateur activé) |
| Plage de niveau d'entrée | +20 dBm (maximum) |
| Résolution de largeur de bande (RBW) | 1 Hz à 3 MHz |
| Précision de l'amplitude | ±1,5 dB (typique) |
| Préamplificateur intégré | Oui, préamplificateur intégré en option |
| Écran | Écran LCD couleur TFT de 6,5 pouces |
| Interface de connectivité | USB, LAN (Ethernet) |
| Alimentation | Batterie rechargeable Li-ion incluse (portable) |
| Dimensions et poids | Analyseur de spectre portable, environ 3,1 kg |
Keysight (Agilent) N9342CN Options:
- N9342CN - 520 - Frequency range 1 MHz to 20 GHz
- N9342CN - 506 - Frequency range 100 kHz to 6 GHz
- N9342CN - F7G - Frequency extension to 7 GHz (use with N9342CN-506)
- N9342CN - CA6 - Cable and antenna test, 5 MHz to 6 GHz
- N9342CN - RBW - Resolution bandwidth (RBW) 10 Hz to 3 MHz, 1-3-10 sequence
- N9342CN - FSA - Fine resolution step attenuator, 0 to 50 dB in 1 dB step
- N9342CN - LAN - LAN port support
- N9342CN - PWS - Power suite: channel power, OBW, and ACPR measurements
- N9342CN - GPS - GPS receiver with built-in antenna
- N9342CN - GPA - External GPS antenna (SMA-F connector)
- N9342CN - SIM - Spectrum monitor: spectrogram view, record, playback, and audio alert
- N9342CN - TPN - Task planner: test automation and consistency
- N9342CN - PWM - U2000 Series USB power sensor support
- N9342CN - SEC - Security features: low-level and non-recoverable formatting of user memory and USB/LAN port control
- N9342CN - AMA - AM/FM modulation analysis
- N9342CN - SCN - Channel scanner
- N9342CN - DMA - ASK/FSK modulation analysis
- N9342CN - PWP - U2020 X-series USB peak and average power sensor support
- N9342CN - BAT - Spare battery, lithium ion, 10.8 V, 4.56 A-hr
- N9342CN - BCG - External battery charger
- N9342CN - ADP - Spare AC/DC adapter, 1 output: 15 V, 5.33 A
- N9342CN - 1DN - Automotive 12 V DC charger
- N9342CN - SCC - Ergonomic soft carrying case with backpack and shoulder strap
- N9342CN - TAD - Adapter, 50 to 75 Ω, Type N(m) to Type N(f)
- N9342CN - 1TC - Hard transit case
| Model | N9342CN |
|---|

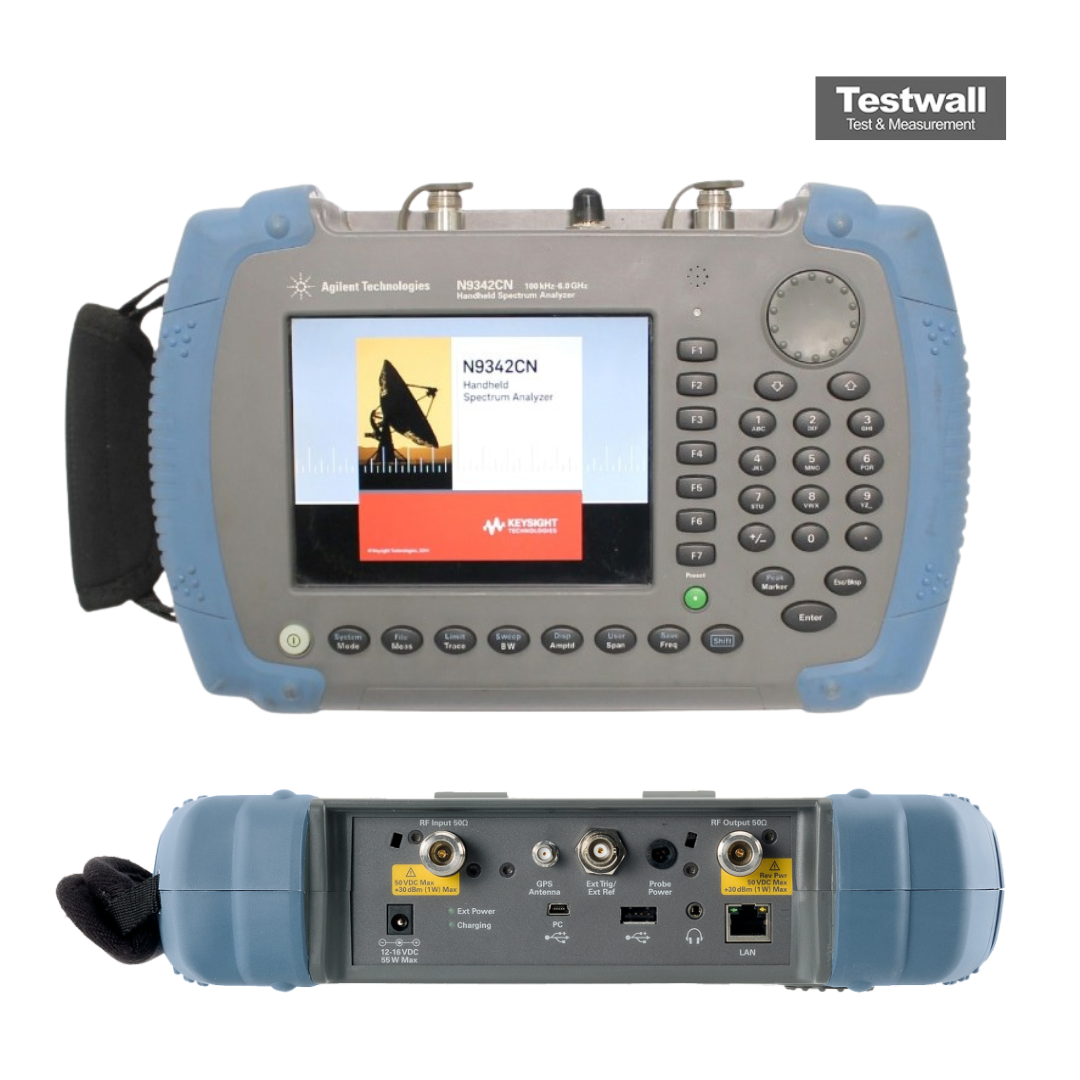

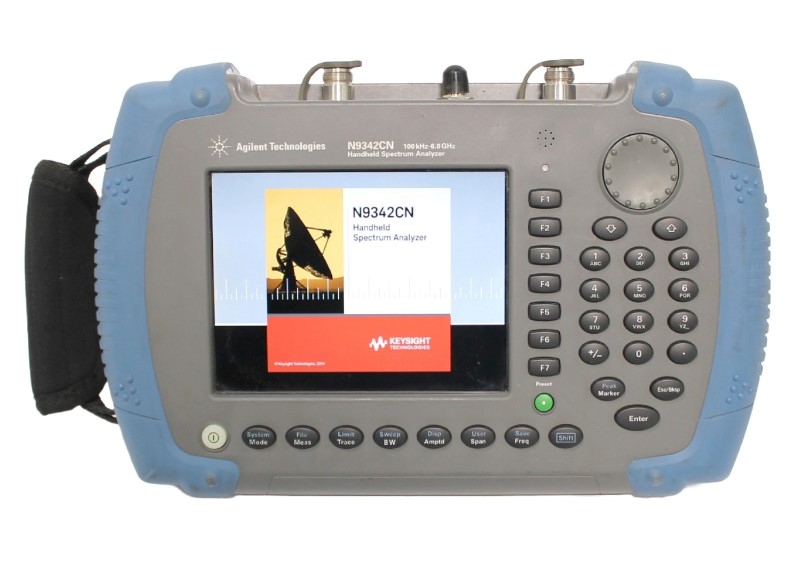

Keysight (Agilent) N9342CN Spectrum Analyzer
The Keysight N9342CN handheld spectrum analyzer is more than easy-to-use, its measurement performance gives you the assurance you need to know the job's been done right. Set your work preferences with the personalized interface. Perform measurements faster. The N9342CN Spectrum analyzer provides ultimate measurement flexibility in a package that is ruggedized for field environments and convenient for mobile applications.
The Keysight N9342CN lets you automate routine tasks to save time and ensure consistent results. Innovative task planner reduces test setup time by 95%, delivers test automation and consistency, and makes it easy to captures test results, generate reports and share task plans with others. Keysight's N9342CN HSAs are feature-packed, general purpose signal analyzers, versatile enough to help you across the array of functions you perform in the field €”before, during, and after the installation of your communication systems.
Specifications for the Keysight (Agilent) N9342CN Spectrum Analyzer Include:
| Frequency | 5 MHz to 6 GHz (up to 20 GHz) |
| Aging rate | ± 1 ppm / year |
| Resolution bandwidth | 30 Hz to 1 MHz |
| Video bandwidth | 10 Hz to 1 MHz |
