Keysight (Agilent) U2022XA
| Attribut | Valeur |
|---|---|
| Gamme de fréquences | 50 MHz à 40 GHz |
| Bande passante vidéo | 30 MHz |
| Temps de montée | ≤13 ns |
| Linéarité | 1,2% (-10 à +15 dBm) |
| Vitesse de mesure | 25000 mesures/s |
| Type de capteur | USB crête et moyenne puissance capteur (diode) |
| Plage de puissance | -35 à +20 dBm (normal, ≥500 MHz), -45 à +20 dBm (moyenne uniquement) |
| Puissance maximale | +23 dBm moyenne, +30 dBm crête (<1 µs) |
| TOS | 1,2 max. à 50 MHz à 10 GHz, 1,26 max. à 10 à 18 GHz, 1,3 max. à 18 à 26,5 GHz, 1,5 max. à 26,5 à 40 GHz |
| Connecteur | 2,4 mm mâle |
| Wattmètres compatibles | autonome via PC (BenchVue, N1918A) |
| Interfaces | USB 2,0 (USB-TMC) |
| Dimensions (L × H × P) | 45 × 35 × 140 mm |
| Poids | 0,25 kg |
Keysight (Agilent) U2022XA Options:
- U2022XA - H50 - X-Series USB peak and average power sensor, 50 MHz to 50 GHz
- U2022XA - 301 - Power sensor cable, 5 ft (1.5 m)
- U2022XA - 302 - Power sensor cable, 10 ft (3 m)
- U2022XA - 303 - Power sensor cable, 16.4 ft (5 m)
- U2022XA - 201 - Transit case
- U2022XA - 202 - Soft carrying case
- U2022XA - 203 - Holster
- U2022XA - 204 - Soft carrying pouch
- U2022XA - OB1 - English language operating and service guide
- U2022XA - OBF - English language programming guide
- U2022XA - OBN - English language service guide
- U2022XA - ABJ - Japanese language operating and service guide
- U2022XA - UK6 - Commercial calibration with test data
- U2022XA - A6J - ANSI Z540 compliant calibration and test data
- U2022XA - 1A7 - ISO 17025 compliant calibration and test data

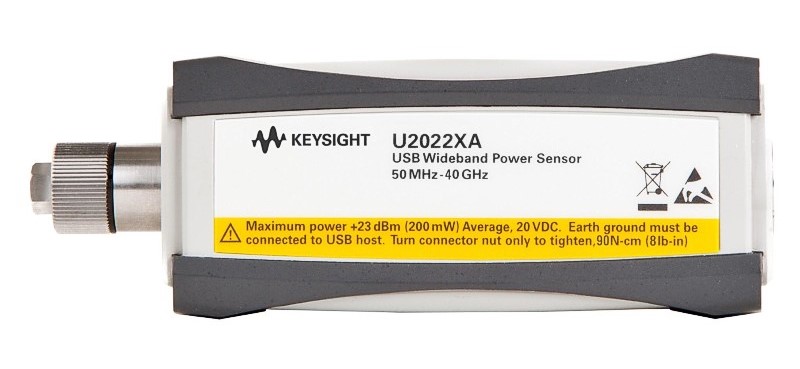

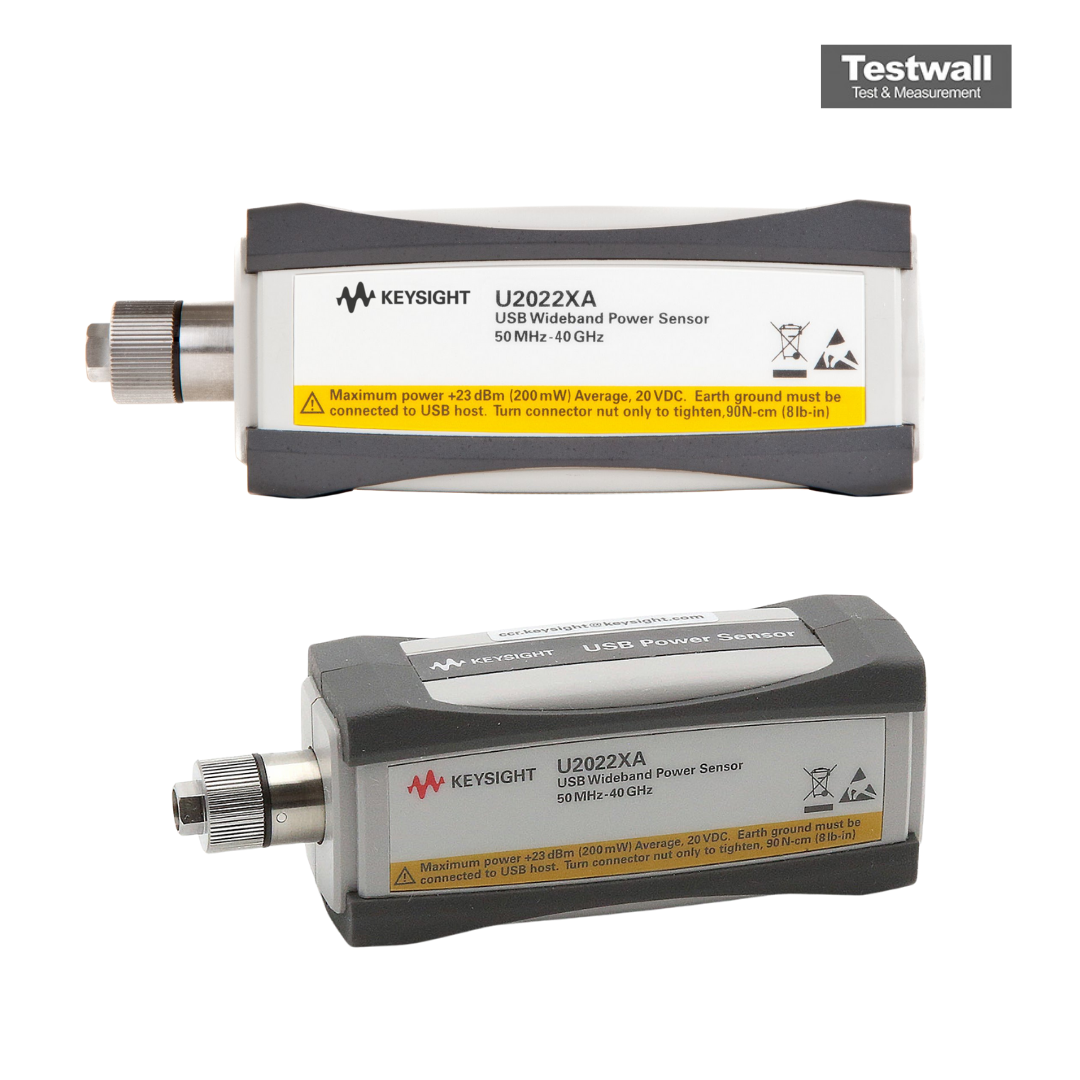

Keysight (Agilent) U2022XA USB Power Sensor
Accelerate your production throughput with Keysight U2022XA USB peak and average power sensors. These sensors provide the high performance and features needed to satisfy the requirements of many power applications in R&D and manufacturing, offering a fast measurement speed of > 25,000 readings/ second to reduce testing time and cut cost of test. Get the peak power measurement capability of a power meter in a compact, portable form with the Keysight U2022XA USB power sensors.
The U2022XA has a wide 30 MHz video bandwidth and a 80 M-sample/s continuous sampling rate for fast, accurate and repeatable RMS power measurements. With its high frequency coverage of 40 GHz, wide dynamic range and extensive measurement capability, the X-Series is optimized for aerospace/ defense, wireless communication (LTE, WCDMA, GSM) and wireless networking applications (WLAN).
Specifications for the Keysight (Agilent) U2022XA USB Power Sensor Include:
| Frequency Range | 50 MHz to 40 GHz |
| Rise/fall time | ‰¤ 13 ns |
| Maximum sampling rate | 80 Msamples/sec |
| Minimum pulse width | 50 ns |
