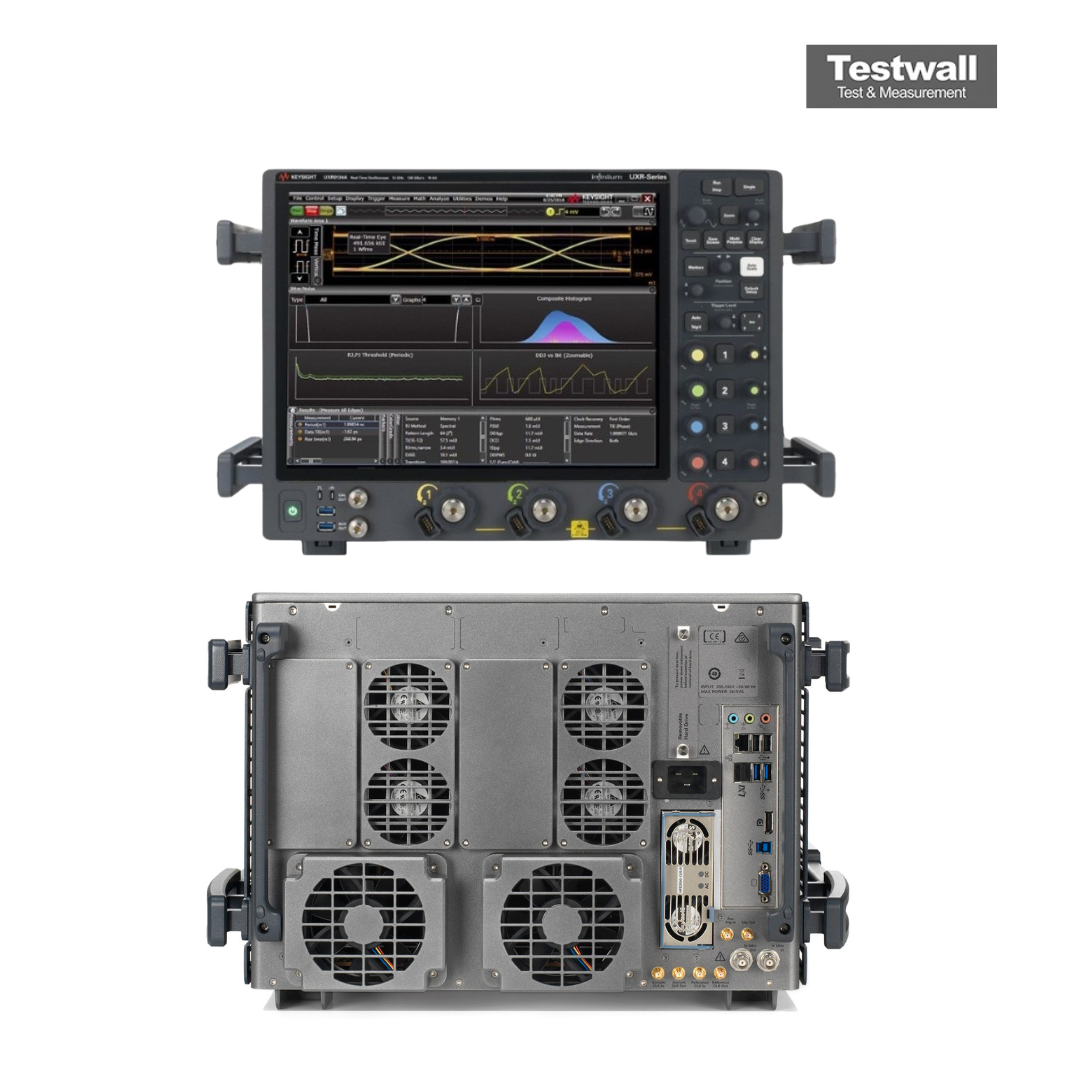

Keysight (Agilent) UXR0104A
| Attribut | Valeur |
|---|---|
| Largeur de bande | 10 GHz |
| Nombre de voies | 4 |
| Taux d'échantillonnage en temps réel | 256 GSa/s |
| Résolution verticale | 8 bits (jusqu'à 10 bits en mode haute résolution) |
| Mémoire d'acquisition | jusqu'à 2 Gpts par voie |
| Bruit de plancher | moins de 50 µV RMS (typique) |
| Impédance d'entrée | 50 Ω |
| Plage de tension d'entrée maximale | ±2,5 V (protection jusqu'à ±5 V en crête) |
| Interface et connectivité | LAN (LXI), USB, affichage externe via DisplayPort |
| Facteur de forme | Oscilloscope de table haute performance (format rack disponible) |
Keysight (Agilent) UXR0104A Options:
- UXR0104A - UXR0000-01G - Memory upgrade: 1 Gpt real / 250 MSa complex
- UXR0104A - UXR0000-02G - Memory upgrade: 2 Gpts real / 400 MSa complex
- UXR0104A - UXR0000-601 - DDC bandwidth upgrade: 50 to 200 MSa/s complex, 40 MHz to 160 MHz analysis bandwidth
- UXR0104A - UXR0000-602 - DDC bandwidth upgrade: 50 to 3200 MSa/s complex, 40 MHz to 2.16 GHz analysis bandwidth
- UXR0104A - UXR0000-605 - 5 GHz BW frequency extension range (Min CF: 3.5 GHz, Max CF: 30.5 GHz for 3.5 mm models)
- UXR0104A - UXR0000-610 - 10 GHz BW frequency extension range (Min CF: 7 GHz, Max CF: 28 GHz for 3.5 mm models)
- UXR0104A - UXR0000-620 - 20 GHz BW frequency extension range (Min CF: 14 GHz, Max CF: 23 GHz for 3.5 mm models)
- UXR0104A - UXR0000-630 - 30 GHz BW frequency extension range (Min CF: 21 GHz, Max CF: 32 GHz for 3.5 mm models)
- UXR0104A - UXR0000-682 - 5 GHz BW frequency extension range up to 82 GHz (Min CF: 3.5 GHz, Max CF: 30.5 GHz for 3.5 mm models)
| Model | UXR0104A |
|---|

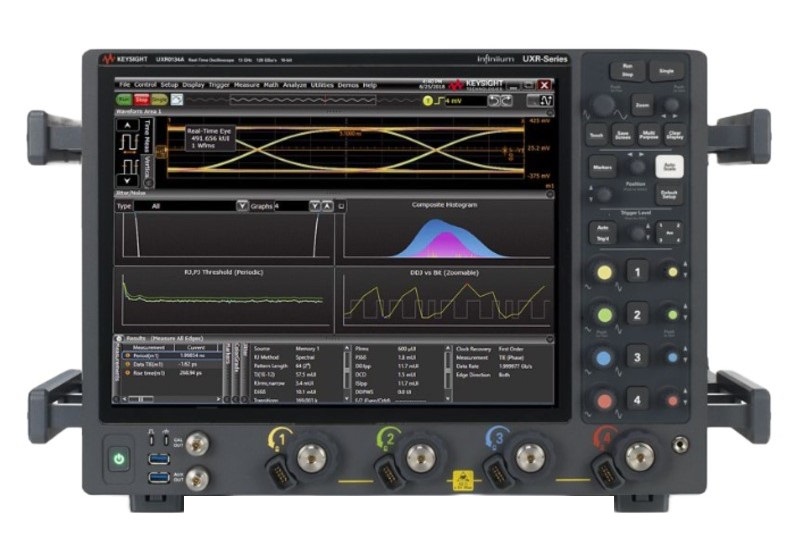

KEYSIGHT UXR0104A Infiniium Oscilloscope
The Keysight UXR0104A Infiniium Oscilloscope delivers world-leading performance, ultra-low noise, and high signal fidelity for engineers and scientists to truly see and understand the fastest phenomena - enabling you to develop the next generation of technology and research more quickly. The Keysight UXR0104A has more accurate analysis with four channels of simultaneous 10 GHz of bandwidth, each concurrently sampling at a staggering 128 GSa/s with 10 bits of high-definition analog to digital converter (ADC) resolution.
The Keysight UXR0104A Infiniium Oscilloscope runs faster performance for some measurements €“ enabled by a powerful new measurement acceleration ASIC and memory controller capable of 5 trillion integer operations per second (IOPS). The Keysight UXR0104A is fully upgradeable, you can easily upgrade the bandwidth, memory, channel count, and software capabilities to meet your future needs. The Keysight UXR0104A guarantees the speed, low noise, and high fidelity needed to capture and measure today's and the future's highbandwidth low-voltage signals - where picoseconds and microvolts matter. These revolutionary capabilities ensure signals are clearer, eye diagrams are more open, and test results are truly accurate.
Specifications for the KEYSIGHT UXR0104A Infiniium Oscilloscope Include:
| Max Bandwidth | 10 GHz |
| Max Sample Rate | 128 GSa/s |
| Resolution | 10 bits |
| Max Memory Depth | 2 GPts |
