Keysight (Agilent)

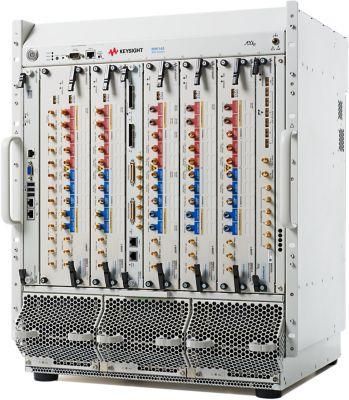

Keysight Technologies M8030A
Multi-Channel BERT
Jusqu'à 32 Gbps par voie Taux de données
Jusqu'à 32 voies (modules enfichables) Nombre de voies
Châssis modulaire AXIe Facteur de forme
2 emplacements AXIe Nombre d'emplacements
Inférieure à 300 fs RMS Gigue intrinsèque (RMS)
| Attribut | Valeur |
|---|---|
| Taux de données | Jusqu'à 32 Gbps par voie |
| Nombre de voies | Jusqu'à 32 voies (modules enfichables) |
| Facteur de forme | Châssis modulaire AXIe |
| Nombre d'emplacements | 2 emplacements AXIe |
| Gigue intrinsèque (RMS) | Inférieure à 300 fs RMS |
| Longueur du motif PRBS | PRBS7, PRBS9, PRBS10, PRBS11, PRBS15, PRBS23, PRBS31 |
| Interface de contrôle | USB, LAN (LXI), commande SCPI |
| Applications compatibles | Test de récepteurs PCI Express, 100GbE, OTN, CEI |
| Amplitude de sortie | Réglable jusqu'à 1,5 Vpp différentiel |
| Alimentation électrique | 100–240 V CA, 50/60 Hz |
Keysight (Agilent) M8030A Options:
- M8030A - BU1 - Bundle consisting of one M9514A 14-slot AXIe chassis and one M9536A AXIe embedded PC controller with 16 GB RAM option
- M8030A - BU2 - Bundle consisting of one M9514A 14-slot AXIe chassis
- M8041A - C08 - BERT one channel, data rate up to 8.5 Gb/s
- M8041A - C16 - BERT one channel, data rate up to 16 Gb/s
- M8041A - G08 - Pattern generator one channel, data rate up to 8.5 Gb/s
- M8041A - G16 - Pattern generator one channel, data rate up to 16 Gb/s
- M8041A - 0A2 - Second channel for analyzer, license, only valid if Option M8041A-C08 or M8041A-C16 is ordered
- M8041A - 0A3 - Analyzer equalization, module-wide license, only valid if Option M8041A-C08 or M8041A-C16 is ordered
- M8041A - 0G2 - Second channel for pattern generator, license
- M8041A - 0G3 - Advanced jitter sources for receiver characterization, module-wide license
- M8041A - 0G4 - 8-tap de-emphasis, module-wide license
- M8041A - 0G5 - Adjustable Inter-symbol Interference (ISI), module-wide license
- M8041A - 0G6 - Reference clock input with multiplying PLL, clock-group-wide license
- M8041A - 0G7 - Level interference sources for receiver characterization, module-wide license
- M8041A - 0S1 - Interactive link training for PCI Express, clock-group-wide license, requires Option 0G4 to allow de-emphasis negotiation. Only valid if Option C08 or C16 is ordered
- M8041A - 0S2 - SER/FER analysis for coded and re-timed loop-back, clock-group-wide license. Only valid if Option C08 or C16 is ordered
- M8041A - U16 - Upgrade to 16 Gb/s data rate from M8041A-G08 and M8041A-C08, module-wide license
- M8041A - UA2 - Upgrade of M8041A to second channel for analyzer, license
- M8041A - UA3 - Upgrade of M8041A to analyzer equalization, module-wide license
- M8041A - UED - Upgrade to BERT from M8041A-G08 and M8041A-G16, module-wide license
- M8041A - UG2 - Upgrade of M8041A to second channel for pattern generator, license
- M8041A - UG3 - Upgrade of M8041A to advanced jitter sources for receiver characterization, module-wide license
- M8041A - UG4 - Upgrade of M8041A to multi-tap de-emphasis, module-wide license
- M8041A - UG5 - Upgrade of M8041A to adjustable inter-symbol interference (ISI) for all S/N, module-wide license
- M8041A - UG6 - Upgrade of M8041A to reference clock input with multiplying PLL, clock group-wide license
- M8041A - UG7 - Upgrade of M8041A to advanced interference sources for receiver characterization, module-wide license
- M8041A - US1 - Upgrade of M8041A to interactive link training for PCI Express, clock group-wide license
- M8041A - US2 - Upgrade of M8041A to SER/FER analysis for coded and re-timed loop-back, clock group-wide license
- M8051A - C08 - BERT one channel, data rate up to 8.5 Gb/s
- M8051A - C16 - BERT one channel, data rate up to 16 Gb/s
- M8051A - G08 - Pattern generator one channel, data rate up to 8.5 Gb/s
- M8051A - G16 - Pattern generator one channel, data rate up to 16 Gb/s
- M8051A - 0A2 - Second channel for analyzer, license; only valid if Option M8051A-C08 or M8051A-C16 is ordered
- M8051A - 0A3 - Analyzer equalization, module-wide license; only valid if Option M8051A-C08 or M8051A-C16 is ordered
- M8051A - 0G2 - Second channel for pattern generator, license
- M8051A - 0G3 - Advanced jitter sources for receiver characterization, module-wide license
- M8051A - 0G4 - 8-tap de-emphasis, module-wide license
- M8051A - 0G5 - Adjustable inter-symbol interference ISI, module-wide license
- M8051A - 0G7 - Level interference sources for receiver characterization, module-wide license
- M8051A - U16 - Upgrade to 16 Gb/s data rate from M8051A-G08 and M8051A-C08, module-wide license
- M8051A - UA2 - Upgrade of M8051A to second channel for analyzer, license
- M8051A - UA3 - Upgrade of M8051A to analyzer equalization, module-wide license
- M8051A - UED - Upgrade to BERT from M8051A-G08 and M8051A-G16, module-wide license
- M8051A - UG2 - Upgrade of M8051A to second channel for pattern generator, license
- M8051A - UG3 - Upgrade of M8051A to advanced jitter sources for receiver characterization, module-wide license
- M8051A - UG4 - Upgrade of M8051A to multi-tap de-emphasis, module-wide license
- M8051A - UG5 - Upgrade of M8051A to adjustable inter-symbol interference (ISI) for all S/N, module-wide license
- M8051A - UG7 - Upgrade of M8051A to advanced interference sources for receiver characterization, module-wide license
- M8070A - 0NP - System software for M8000 Series of BER test solutions, network/floating, perpetual license
- M8070A - 0TP - System software for M8000 Series of BER test solutions, transportable, perpetual license
- M8070A - 1NP - DUT control interface, network/floating, perpetual license
- M8070A - 1TP - DUT control interface, transportable, perpetual license
- M8192A - Synchronization module for M8190A or M8051A modules
| Model | M8030A |
|---|
Le Keysight (Agilent) M8030A est un testeur BERT (Bit Error Rate Tester) haute performance conçu pour la validation des interfaces numériques à haute vitesse, atteignant des débits jusqu’à 32 Gb/s. Il intègre la génération de motifs, la détection d’erreurs et l’injection de gigue pour des tests de contrainte rigoureux sur PCIe, USB et mémoire.
Compatible avec la plateforme modulaire AXIe, le M8030A simplifie les configurations de test à haute vitesse, idéal pour les environnements de laboratoire et les tâches de validation automatisée.
Testwall peut fournir le Keysight (Agilent) M8030A d’occasion, entièrement testé. Avec un support expert et une livraison mondiale, Testwall garantit une instrumentation performante avec une fiabilité et une qualité de service inégalées. Veuillez nous contacter directement pour la calibration ou la réparation du Keysight (Agilent) M8030A.
