Keytek SERIES 2000 Options:
- SERIES 2000 - ESD-1 - ESD-1 Discharger (Gun)
- SERIES 2000 - DN-1 - IEC Human-Body-Model Discharge Network (150 pF/150 Ω)
- SERIES 2000 - DN-10 - IEC 61000-4-2 Human-Body-Model Discharge Network (150 pF/330 Ω)
- SERIES 2000 - DT-1 - IEC Ball Discharge Tip
- SERIES 2000 - DT-2 - Corona and Field-Enhancement Discharge Tip
- SERIES 2000 - DT-3 - Wedge, Simulating Tool
- SERIES 2000 - FT-10 - Proximity-Test, Self-Discharge Tip
- SERIES 2000 - FT-11 - E-Field (Electric Field) Simulator Tip, for Pre-Discharge and Discharge Electric Field Collapse simulations
- SERIES 2000 - FT-12 - H-Field (Magnetic Field) Simulator Tip, for Discharge Magnetic Field simulation
- SERIES 2000 - FT-21 - Discharge Electric Field Collapse Adapter
- SERIES 2000 - PSC-1 - Power Supply/Control Unit
- SERIES 2000 - CA-1A - Carrying Case
- SERIES 2000 - CA-2A - Carrying Case (larger)
- SERIES 2000 - FA/CIA-10 - 10kV Fast-Approach Current Injection Adapter
- SERIES 2000 - FA/CIA-20 - 20kV Fast-Approach Current Injection Adapter
- SERIES 2000 - CTC-1 - Coax Monitor for ESD Current Waveform (for 400 MHz applications), includes Ground Plane (GP-1), scope cable with 50Ω Termination (TC-50), and Short Ground Strap (GCS-1)
- SERIES 2000 - CTC-3 - IEC Coax Monitor for ESD Current Waveform with 1GHz capability, includes high-peak-power attenuator and scope cable
- SERIES 2000 - TP-3 - Target-Plane Assembly, 1.5m x 1.5m as specified by IEC 61000-4-2
- SERIES 2000 - EC-1 - Probe Conversion Cable; Remotes any Discharge Network as light, hand-held probe
- SERIES 2000 - DCA-1 - DC Output Calibration Attenuator
- SERIES 2000 - FCS-1 - Field and Corona Sensor Group (includes Common Monitor Unit HEC-1, H-Field sensor HFS-1, E-Field sensor EFS-1, Pre-Discharge corona sensor CCS-1)
- SERIES 2000 - DN-2 - NEMA Part DC33 and MIL STD 883E Discharge Network (100 pF/1500 Ω)
- SERIES 2000 - DN-3 - Upper/Lower-Body-Model Discharge Network (700 pF/100K/150 pF/150 Ω)
- SERIES 2000 - DN-4 - Segmented-Body-Model Discharge Network (700 pF/100K/150 pF/150 Ω/20 pF-50 Ω)
- SERIES 2000 - DN-6 - EIA Std, PN-1361 (Draft 6, 1985) Discharge Network (100 pF/500 Ω)
- SERIES 2000 - HT-10/DT-4 - True ESD Hand-Tip/Discharge-Tip Combination
- SERIES 2000 - CIA-V - Contact Mode, Fast-Rise Current Injection (FR/CI), as per IEC 61000-4-2 (.7-1 ns rise time)
| Model | SERIES 2000 |
|---|
Keytek SERIES 2000 ESD Electrostatic Discharge

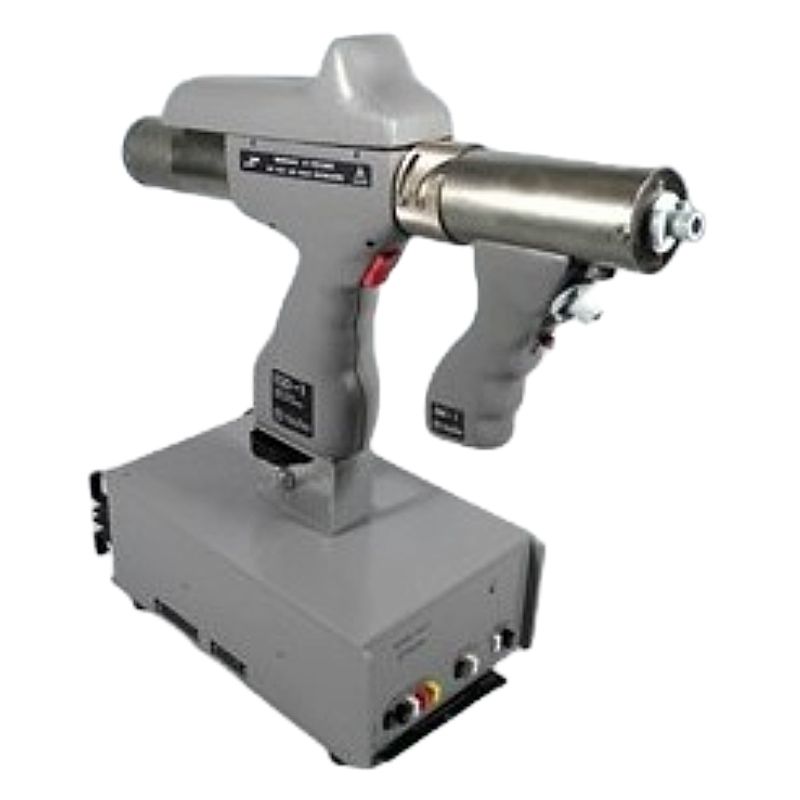

The Keytek Series 2000 ESD Electrostatic Discharge hand-held or tripod-mounted test system provides a combination of performance characteristics that enable users to test various ESD standards including IEC, ANSI, SAE and MIL-STD. With built-in capability for continously selectable voltages from 0 to 25kV (positive and negative), an in-depth library of interchangeable plug-in discharge networks, available air discharge test options, and programmable repetitive or single-shot operating modes, the KeyTek Series 2000 ESD Electrostatic Discharge makes it easy to do ESD testing to multiple standards.
Keytek Series 2000 ESD Electrostatic Discharge is flexible with highly controllable test operations. The basic system is compromised of two interconnected units: the ESD-1 Discharger (or gun) that may be either hand-held or tripod mounter, and its associated Power Supply Control Unit PSC-1. The ESD-1 Discharger contains a basic handle, polarity switch, high voltage set knob, a Digital Stored Voltage Monitor (DVM), and an audible discharge monitor that informs user when a discharge has occurred. The Power Supply/Control Unit includes selectors for repetition rates, charge rate and burst/normal modes.
Specifications for the Keytek SERIES 2000 ESD Electrostatic Discharge Include:
| Voltage Range | 1 to 25 kV with Ball Tip |
| Polarity | Operator-Selectable (plus or minus) |
| Operating Modes | Single-shot and repetitive |
| Repetition Rates | One shot per approximately l, 3, or 10 seconds |
