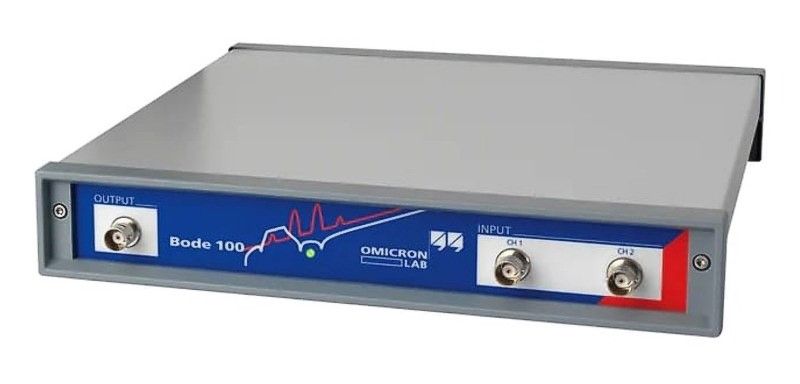

OMICRON BODE 100

OMICRON LAB BODE 100

With the multifunctional OMICRON LAB Bode 100 Vector Network Analyzer you'll see an exact picture of your electronic circuits and components in a frequency range from 1 Hz to 40 MHz. The multifunctional Bode 100 Vector Network Analyzer system is comprised of a flexible hardware design and the Bode Analyzer Suite for Windows ™. Because of its outstanding price-performance ratio the system is ideal for industrial applications, as well as, research and educational labs. The Bode 100 is not only a state of the art Vector Network Analyzer, it also works as:

• Frequency Response Analyzer
• Impedance Meter
• Gain Phase Meter
• Sine Wave Generator

Withe BODE 100, you can easily measure and analyze:

• Complex gain
• Complex impedance and admittance
• Reflection coefficient and return loss
• Ultrasonic and piezo electric systems
• Stability of control circuits such as DC/DC converters in power supplies
• Swept S-parameters of electronic circuits
• Group delay characteristics of your DUT
• Frequency dependent impedance of high Q-circuits like oscillating crystals
• Influence of termination on amplifiers or filters
• Reflection and adaptation of antennas

Data transfer and reporting  is so easy.

• A simple click of  a button and the Bode 100 provides you with a print report containing all relevant information.
• Generate reports in own your style - simply paste measurement results, charts and equipment settings into your documents by using the Bode 100's extended copy to clipboard functionality.
• Process your measurement results with your favorite tool including Excel by exporting all measurement values into a csv file.
• Save your entire equipment set-up (including measurement values). Load saved set-ups to simply reuse your measurements. Share stored set-ups with you colleagues and analyze the data offline on any PC.

Reduce your workload - automate your measurements.

• Use OLE compatible controllers such as VBA (e.g. Excel ®), LabVIEW ®, MATLAB ®
• Program your own applications with languages like VB2005 ®, C# ®, Visual C++ ®

Specifications of the OMICRON LAB BODE 100 include:

• Wave form: Sinusoidal signal
• Frequency range
• 10 Hz to 40 MHz (standard frequency range)*
• 1 Hz to 40 MHz (extended frequency range)*
• *frequency ranges software switchable
• Signal Level -27dBm to 13dBm  0.01VRMS to 1VRMS (at 50 Ohm load)
• Accuracy of the source level (23 °C +/-5 °C)
• +/-0.3 dB (1Hz to 1MHz)
• +/-0.6 dB (1MHz to 40 MHz)
• Frequency response of the source level 1Hz to 40MHz: +/-0.3dB (referred to 100kHz)
• Frequency accuracy (23 °C +/-5 °C):
• +/-15ppm (
• +/-25ppm (
• Source impedance: 50 Ohm
• Return loss (1Hz to 40MHz) > 28dB (VSWR < 1.09)
• Spurious signals < -55dBc (typical)
• Harmonics < -55dBc (typical)
• Connector: BNC
