Pendulum

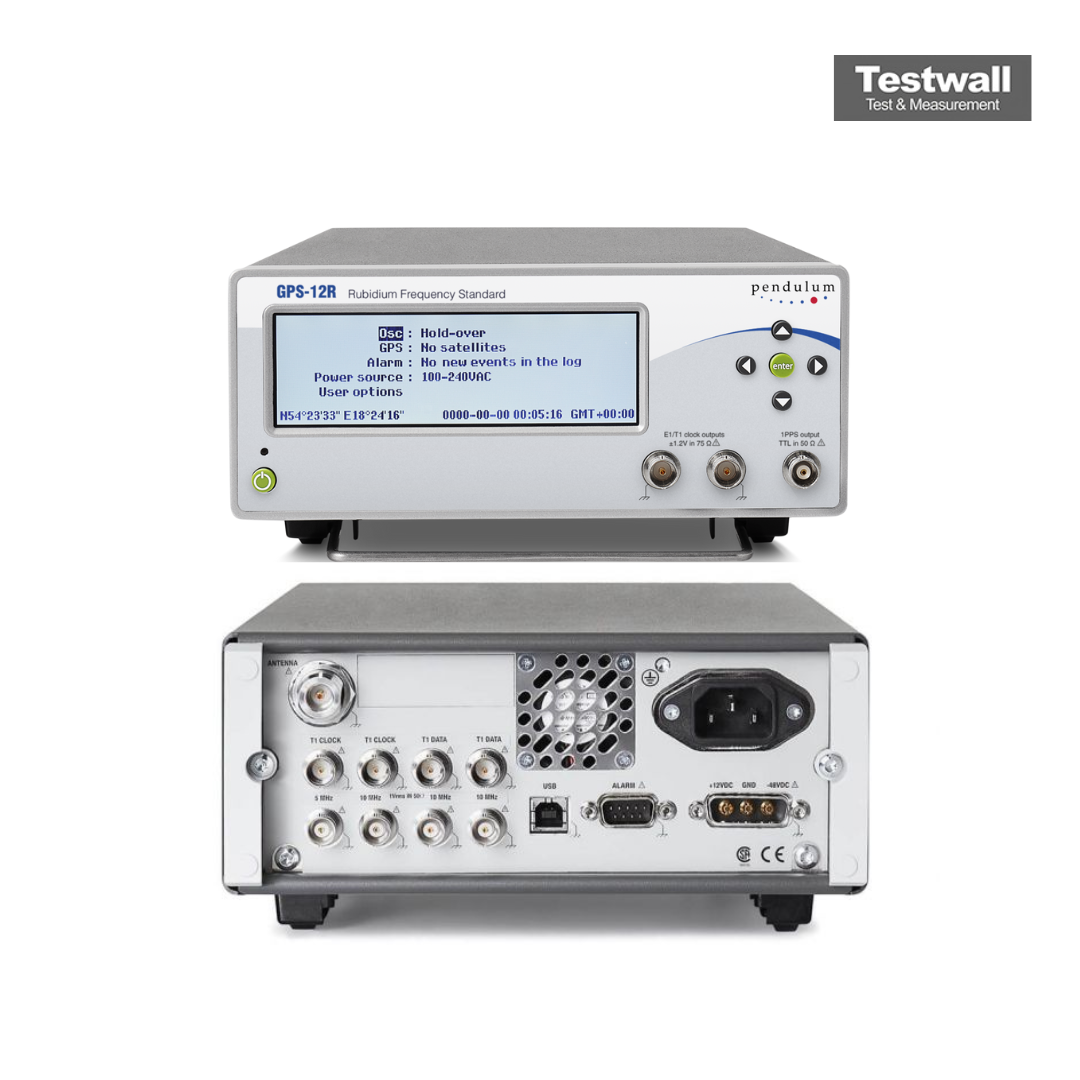

Pendulum GPS12RG
12 canaux parallèles L1, C/A code Type de récepteur GPS
±1 × 10⁻¹² (sur 24 heures) Précision de fréquence
10 MHz, signal sinusoïdal Sortie de fréquence
1 PPS synchronisé sur UTC Sortie impulsion par seconde (1PPS)
RS-232 / RS-422, protocole NMEA-0183 Interface de communication
| Attribut | Valeur |
|---|---|
| Type de récepteur GPS | 12 canaux parallèles L1, C/A code |
| Précision de fréquence | ±1 × 10⁻¹² (sur 24 heures) |
| Sortie de fréquence | 10 MHz, signal sinusoïdal |
| Sortie impulsion par seconde (1PPS) | 1 PPS synchronisé sur UTC |
| Interface de communication | RS-232 / RS-422, protocole NMEA-0183 |
| Tension d'alimentation | 90–264 V CA, 47–63 Hz |
| Température de fonctionnement | 0 °C à +50 °C |
| Dimensions (L × l × H) | 483 mm × 340 mm × 44 mm (1U rack) |
| Poids | Environ 3,5 kg |
| Antenne GPS | Antenne externe active, connecteur TNC femelle |
Pendulum GPS12RG Options:
- GPS12RG - 70B - 3x 10 MHz plus 1x 5MHz extra outputs, sine, 1Vrms
- GPS12RG - 71B - Multiple reference outputs 0.1/1/5/10 MHz, sine, 1Vrms
- GPS12RG - 72B - 2x 2.048 MHz outputs plus 2x 2.048 Mbps outputs
- GPS12RG - 74B - 2x 1.544 MHz outputs plus 2x 1.544 Mbps outputs
- GPS12RG - 77 - -48 VDC supply (for external power source)
- GPS12RG - 78/HS - Internal Battery and external +12 VDC power supply inlet
- GPS12RG - 22/90 - 19" rack mount kit
- GPS12RG - 27 - Soft carrying case
- GPS12RG - 27H - Heavy-duty transport case
- GPS12RG - 01/00 - GPS only (L1) Antenna
- GPS12RG - 01/90 - Combined Glonass/GPS Antenna
- GPS12RG - 01/50 - GPS Antenna Mounting Kit
- GPS12RG - 02 - Antenna cable, 20 m
- GPS12RG - 02/50 - Antenna cable, 50 m
- GPS12RG - 02/130 - Antenna cable, 130 m
- GPS12RG - 90/10 - Calibration certificate with protocol
- GPS12RG - 90/00 - Calibration certificate hold-over aging/week
- GPS12RG - 95/03 - Extended warranty to 3 years
- GPS12RG - 95/05 - Extended warranty to 5 years
- GPS12RG - OM-12 - Printed Users Manual (PDF-file is included as standard)
| Model | GPS12RG |
|---|
- GPS-disciplined Rubidium clock for near-Cesium stability
- OCXO option (Model GPS-12)
- Internal battery option for transportation and mains-free field use
- Two switchable 1.544 MHz (T1) or 2.048 MHz (E1) front-panel outputs
- 1-pps front-panel output
- 1, 5 & 10 MHz outputs
- Optional -48 VDC operation
- Use of both GLONASS and GPS gives better signal coverage (GPS-12RG)
