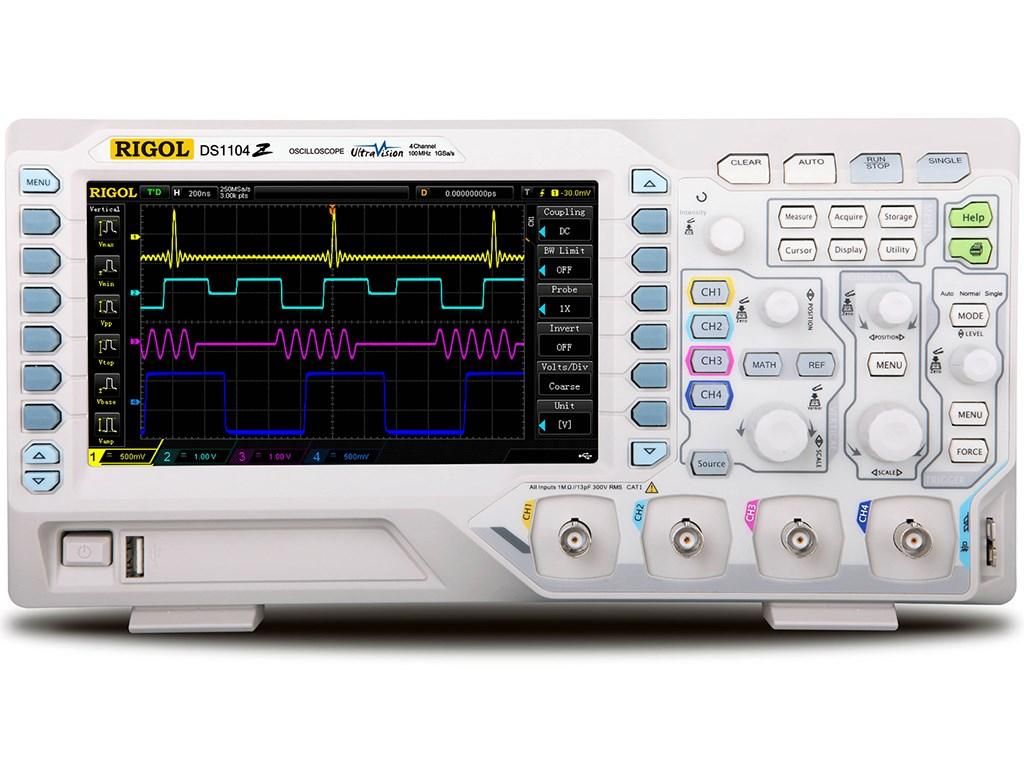

Rigol DS1104Z
High quality 4 channel oscilloscope with 100 MHz bandwidth, 1 GSa/s and 12 Mpts memory depth and 17.8 cm LCD display (800?480 pixel).
100 MHz Bande passante
4 voies analogiques Nombre de voies
1 GSa/s Taux d'échantillonnage en temps réel
12 Mpts (standard), 24 Mpts (optionnel) Profondeur mémoire
8 bits Résolution verticale
| Attribut | Valeur |
|---|---|
| Bande passante | 100 MHz |
| Nombre de voies | 4 voies analogiques |
| Taux d'échantillonnage en temps réel | 1 GSa/s |
| Profondeur mémoire | 12 Mpts (standard), 24 Mpts (optionnel) |
| Résolution verticale | 8 bits |
| Taille de l'écran | 7 pouces (WVGA, 800 x 480 pixels) |
| Fréquence de mise à jour de la forme d'onde | 30 000 formes d'onde par seconde |
| Sensibilité verticale | 1 mV/div à 10 V/div |
| Base de temps | 5 ns/div à 50 s/div |
| Interfaces de communication | USB Host, USB Device, LAN (LXI), sortie déclenchement |
| Model | DS1104Z |
|---|
The Rigol DS1104Z is a very high quality 4 channel digital storage oscilloscope. It features a real-time sample rate of up to 1 GSa/s and a bandwidth of 100 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The DS1104Z has a refresh rate of up to 30.000 wfms/ enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
