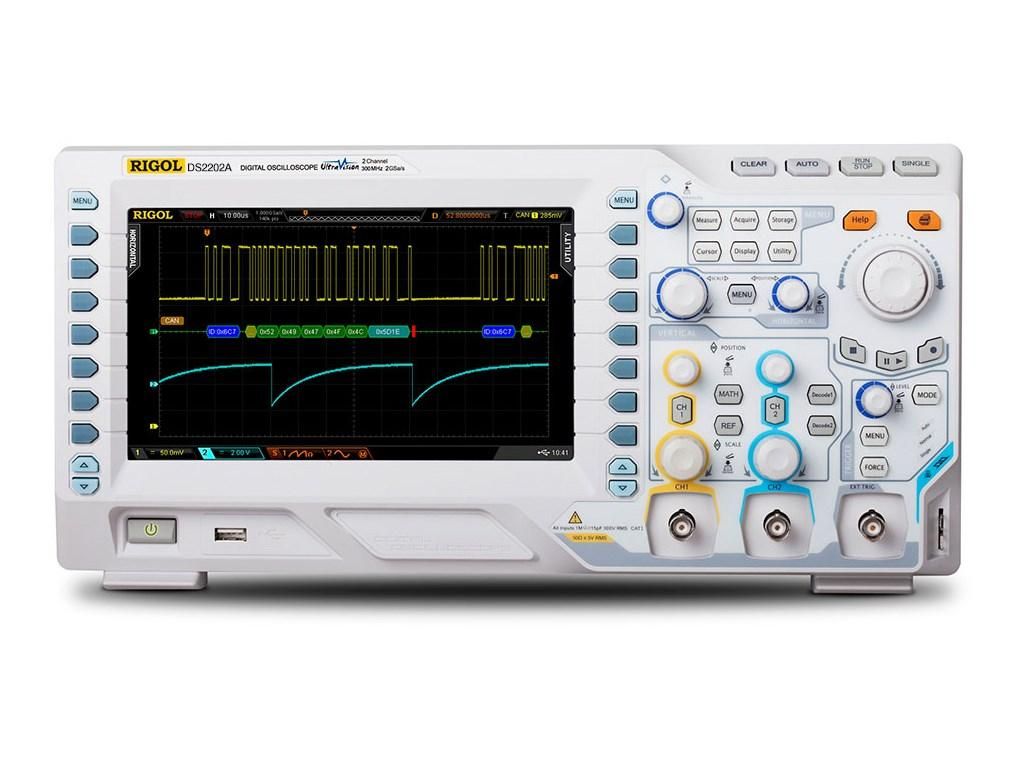

Rigol DS2202A-S
High quality 2 channel DSO with 200 MHz bandwidth + 2 channel waveform generator with 25 MHz bandwidth, 2 GSa/s and 14 Mpts memory depth.
200 MHz Bande passante
2 voies analogiques Nombre de voies
2 GSa/s Taux d'échantillonnage en temps réel
56 Mpts Profondeur mémoire
8 bits Résolution verticale
| Attribut | Valeur |
|---|---|
| Bande passante | 200 MHz |
| Nombre de voies | 2 voies analogiques |
| Taux d'échantillonnage en temps réel | 2 GSa/s |
| Profondeur mémoire | 56 Mpts |
| Résolution verticale | 8 bits |
| Taille de l'écran | 8 pouces (TFT LCD, 800 x 480 pixels) |
| Fréquence du générateur de signaux intégré | 25 MHz (générateur de formes d'ondes arbitraires) |
| Sensibilité verticale | 1 mV/div à 10 V/div |
| Base de temps | 5 ns/div à 50 s/div |
| Interfaces de connectivité | USB Host, USB Device, LAN (RJ45), sortie déclenchement |
| Model | DS2202A-S |
|---|
The Rigol DS2202A-S is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s, a bandwidth of 200 MHz and an additional built-in 2CH arbitrary waveform generator for frequencies up to 25 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The DS2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
