Rigol

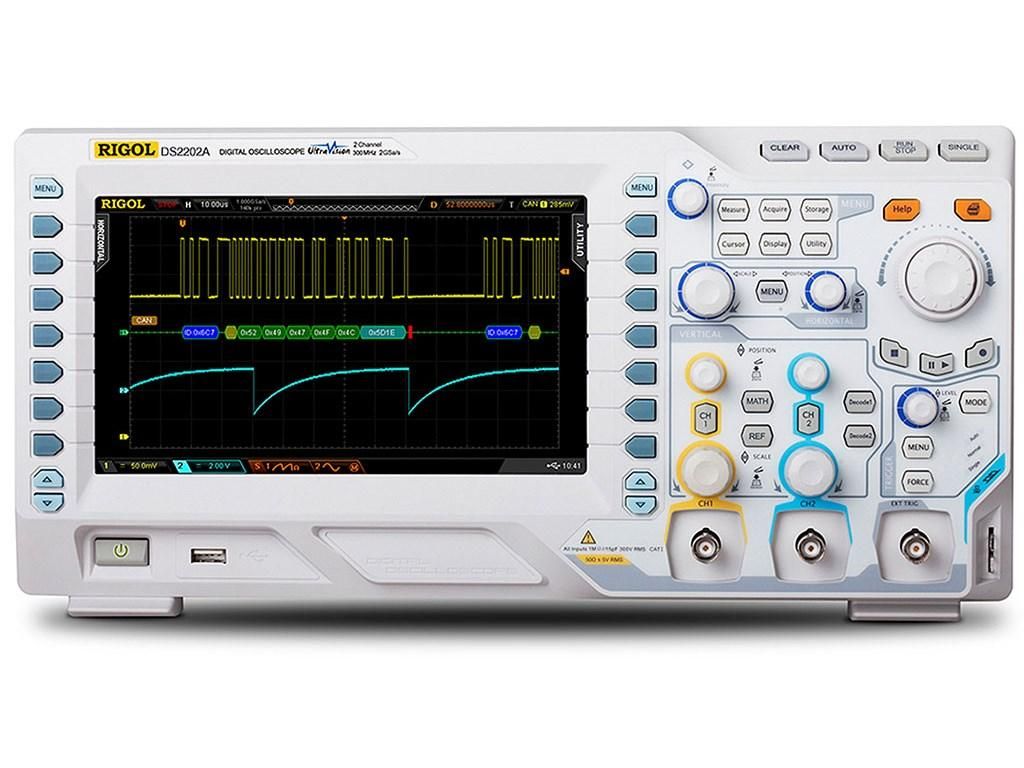

Rigol DS2202A
High quality 2 channel DSO with 200 MHz bandwidth, 2 GSa/s and 14 Mpts memory depth.
200 MHz Bande passante
2 voies analogiques Nombre de voies
2 GSa/s (temps réel) Fréquence d'échantillonnage
56 Mpts (standard) Profondeur mémoire
8 pouces TFT LCD (800 x 480 pixels) Taille de l'écran
| Attribut | Valeur |
|---|---|
| Bande passante | 200 MHz |
| Nombre de voies | 2 voies analogiques |
| Fréquence d'échantillonnage | 2 GSa/s (temps réel) |
| Profondeur mémoire | 56 Mpts (standard) |
| Taille de l'écran | 8 pouces TFT LCD (800 x 480 pixels) |
| Résolution verticale | 8 bits |
| Plage de tension d'entrée | 1 mV/div à 10 V/div |
| Base de temps | 5 ns/div à 50 s/div |
| Interface de connectivité | USB Host, USB Device, LAN (LXI), AUX |
| Taux de capture des formes d'onde | jusqu'à 50 000 formes d'onde/s |
| Model | DS2202A |
|---|
The Rigol DS2202A is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s and a bandwidth of 200 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The DS2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
