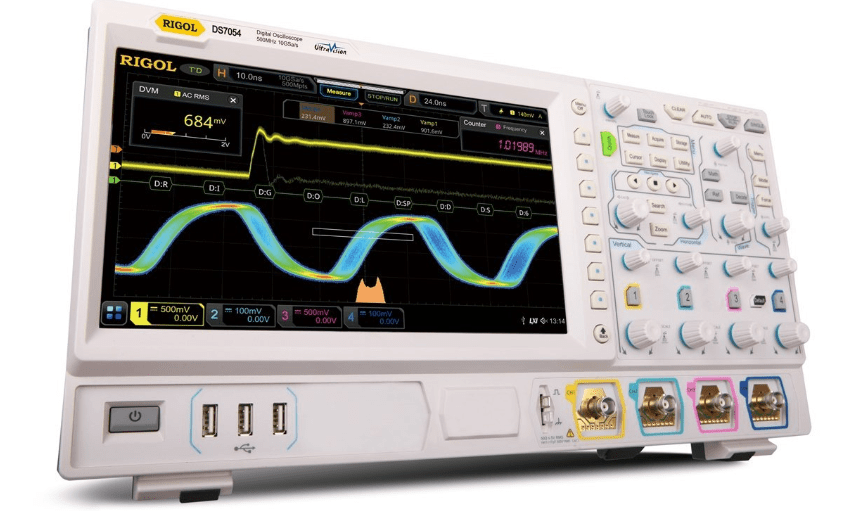

Rigol DS7034

High quality 4 channel oscilloscope with 350 MHz Bandwidth, 10 GSa/s sample rate, up to 500 Mpts memory depth and a 25.7 cm touchdisplay 1024x600 pixel.
350 MHz Largeur de bande
4 voies analogiques Nombre de voies
10 GSa/s Taux d'échantillonnage en temps réel
500 Mpts (standard) Profondeur mémoire
10,1 pouces, écran tactile capacitif Taille de l'écran
Attribut Valeur
Largeur de bande 350 MHz
Nombre de voies 4 voies analogiques
Taux d'échantillonnage en temps réel 10 GSa/s
Profondeur mémoire 500 Mpts (standard)
Taille de l'écran 10,1 pouces, écran tactile capacitif
Résolution verticale 12 bits
Fréquence de mise à jour de la forme d'onde 600 000 formes d'onde/s
Bruit de fond (plancher de bruit) 100 μV (typique)
Interfaces de connectivité USB Host, USB Device, LAN (LXI), HDMI
Voies numériques (optionnelles) 16 voies numériques (option MSO)
Rigol DS7034 Options:
  • DS7034 - DS7000-BW3T5 - Bandwidth upgrade, 350 MHz to 500 MHz
  • DS7034 - DS7000-2RL - Memory depth upgrade to 250 Mpts
  • DS7034 - DS7000-5RL - Memory depth upgrade to 500 Mpts
  • DS7034 - DS7000-PWR - Power analysis
  • DS7034 - DS7000-COMP - RS-232/UART trigger and decode
  • DS7034 - DS7000-EMBD - I²C and SPI trigger and decode
  • DS7034 - DS7000-AUTO - CAN and LIN trigger and decode
  • DS7034 - DS7000-FLEX - FlexRay trigger and decode
  • DS7034 - DS7000-AUDIO - I²S trigger and decode
  • DS7034 - DS7000-AERO - MIL-STD-1553 trigger and decode
  • DS7034 - DS7000-BND - Application bundle (all decode options, PWR and AWG)
Formulaire d'étalonnage Rigol DS7034

Formulaire de réparation Rigol DS7034
Maximum file size: 40MB

MSO7000/DS7000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology developed by RIGOL. Integrating 6 independent instruments into one, the MSO7000/DS7000 series is equipped with super high sample bandwidth ratio of 10 GSa/s, extremely high memory depth of up to 500 Mpts, clear 10.1" display, excellent waveform capture rate of 600.000 wfms/s, and powerful data analysis functions. Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional & accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics. In today's inegrated designfield, a highly integrated comprehensive digital oscilloscope has become a useful tool for design engineers. The MSO7000/DS7000 series digital oscilloscope launched by RIGOL this time integrates 6 independent instruments into 1, including one digital oscilloscope, one 16-channel logic analyzer, one arbitrary waveform generator, one digital voltmeter, one high-precision frequency counter and accumulator, and one protocol analyzer. The MSO7000/DS7000 series offers you a flexible and economical solution to address your actual needs.
