Rigol

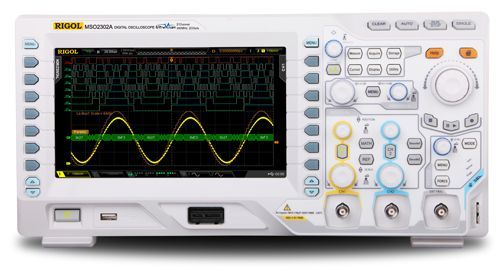

Rigol MSO2202A-S
200 MHz Mixed Signal Oscilloscope
200 MHz Largeur de bande
2 canaux Nombre de canaux analogiques
16 canaux logiques Canaux numériques
2 GSa/s Taux d'échantillonnage en temps réel
56 Mpts Profondeur mémoire
| Attribut | Valeur |
|---|---|
| Largeur de bande | 200 MHz |
| Nombre de canaux analogiques | 2 canaux |
| Canaux numériques | 16 canaux logiques |
| Taux d'échantillonnage en temps réel | 2 GSa/s |
| Profondeur mémoire | 56 Mpts |
| Taille de l'écran | 8 pouces TFT LCD (800 x 480 pixels) |
| Générateur de formes d'ondes intégré | Oui, 25 MHz (double canal) |
| Taux de capture des formes d'ondes | jusqu'à 50 000 formes d'ondes/s |
| Interfaces de communication | USB Host, USB Device, LAN (LXI) |
| Sensibilité verticale | 1 mV/div à 10 V/div |
| Model | MSO2202A-S |
|---|
The MSO2000A series digital oscilloscope is another Best-In-Class instrument from Rigol offering an unmatched feature/value package. The MSO2000A is a fast and versatile scope covering frequencies up to 300 MHz with two channels and a wide vertical range (500uV/div-10V/div) to deliver an extremely low noise floor to help you capture smaller signals. Add a 2 GSa/s max. sample rate and 14 Mpts. of standard memory depth to its user-friendly interface and 8 inch WVGA display and you've got a scope that outperforms the competition in a wide range of bench-top and field applications. The MSO2000A series also includes 16 bit of mixed signal logic channels as well as an option for an embedded 2 channel, 25 MHz waveform generator.
