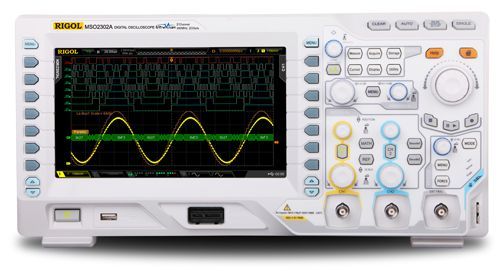

Rigol MSO2302A
300 MHz Mixed Signal Oscilloscope
300 MHz Largeur de bande
2 canaux Canaux analogiques
16 canaux logiques Canaux numériques
2 GSa/s Taux d'échantillonnage en temps réel
14 Mpts Profondeur mémoire
| Attribut | Valeur |
|---|---|
| Largeur de bande | 300 MHz |
| Canaux analogiques | 2 canaux |
| Canaux numériques | 16 canaux logiques |
| Taux d'échantillonnage en temps réel | 2 GSa/s |
| Profondeur mémoire | 14 Mpts |
| Taille de l'écran | 7 pouces TFT LCD (WVGA 800 x 480) |
| Fréquence de mise à jour de la forme d'onde | jusqu'à 75 000 formes d'onde par seconde |
| Résolution verticale | 8 bits |
| Interfaces de connectivité | USB Host, USB Device, LAN (LXI) |
| Fonctions d'analyse intégrées | FFT, décodage de protocoles série (UART, SPI, I²C, CAN, LIN) |
| Model | MSO2302A |
|---|
The MSO2000A series digital oscilloscope is another Best-In-Class instrument from Rigol offering an unmatched feature/value package. The MSO2000A is a fast and versatile scope covering frequencies up to 300 MHz with two channels and a wide vertical range (500uV/div-10V/div) to deliver an extremely low noise floor to help you capture smaller signals. Add a 2 GSa/s max. sample rate and 14 Mpts. of standard memory depth to its user-friendly interface and 8 inch WVGA display and you've got a scope that outperforms the competition in a wide range of bench-top and field applications. The MSO2000A series also includes 16 bit of mixed signal logic channels as well as an option for an embedded 2 channel, 25 MHz waveform generator.
