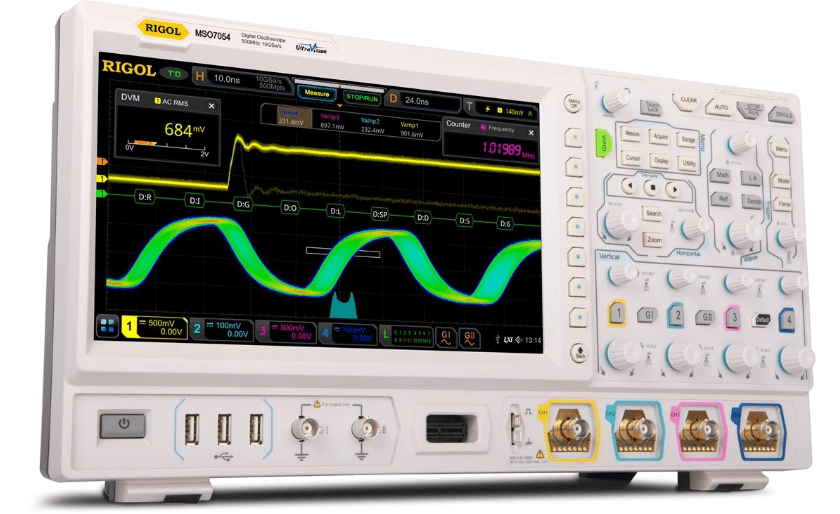

Rigol MSO7054
High quality 4 channel oscilloscope with 500 MHz Bandwidth, 10 GSa/s sample rate, up to 500 Mpts memory depth and a 25.7 cm touchdisplay 1024x600 pixel. Including integrated 16 channel logic analyser. Upgradable to a 2 channel 25 MHz waveform generator.
500 MHz Bande passante
4 voies Nombre de voies analogiques
16 voies Nombre de voies numériques
10 GSa/s Taux d'échantillonnage
500 Mpts Profondeur mémoire

| Attribut | Valeur |
|---|---|
| Bande passante | 500 MHz |
| Nombre de voies analogiques | 4 voies |
| Nombre de voies numériques | 16 voies |
| Taux d'échantillonnage | 10 GSa/s |
| Profondeur mémoire | 500 Mpts |
| Taille de l'écran | 10,1 pouces (écran tactile capacitif) |
| Résolution verticale | 8 bits (12 bits en mode haute résolution) |
| Fréquence de mise à jour de la forme d'onde | 600 000 trames/seconde |
| Bande passante du générateur de formes d'onde intégré | 25 MHz |
| Interfaces de communication | USB, LAN (LXI), HDMI, USB-GPIB (en option) |
Rigol MSO7054 Options:
- MSO7054 - DS7000-2RL - Memory depth upgrade to 250 Mpts
- MSO7054 - DS7000-5RL - Memory depth upgrade to 500 Mpts
- MSO7054 - DS7000-PWR - Power analysis
- MSO7054 - DS7000-COMP - RS-232/UART trigger and decode
- MSO7054 - DS7000-EMBD - I²C and SPI trigger and decode
- MSO7054 - DS7000-AUTO - CAN and LIN trigger and decode
- MSO7054 - DS7000-FLEX - FlexRay trigger and decode
- MSO7054 - DS7000-AUDIO - I²S trigger and decode
- MSO7054 - DS7000-AERO - MIL-STD-1553 trigger and decode
- MSO7054 - DS7000-BND - Application bundle (all decode options, PWR and AWG)
- MSO7054 - MSO7000-AWG - Dual-channel 25 MHz arbitrary waveform generator
- MSO7054 - PLA2216 - 16-channel logic probe
MSO7000/DS7000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology developed by RIGOL. Integrating 6 independent instruments into one, the MSO7000/DS7000 series is equipped with super high sample bandwidth ratio of 10 GSa/s, extremely high memory depth of up to 500 Mpts, clear 10.1" display, excellent waveform capture rate of 600.000 wfms/s, and powerful data analysis functions.
Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional & accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
In today's inegrated designfield, a highly integrated comprehensive digital oscilloscope has become a useful tool for design engineers. The MSO7000/DS7000 series digital oscilloscope launched by RIGOL this time integrates 6 independent instruments into 1, including one digital oscilloscope, one 16-channel logic analyzer, one arbitrary waveform generator, one digital voltmeter, one high-precision frequency counter and accumulator, and one protocol analyzer.
The MSO7000/DS7000 series offers you a flexible and economical solution to address your actual needs.
