Rohde & Schwarz EVSG1000
| Attribut | Valeur |
|---|---|
| Plage de fréquence | 100 kHz à 1 GHz |
| Niveau de sortie RF | -120 dBm à +13 dBm |
| Résolution de fréquence | 0,01 Hz |
| Types de modulation | AM, FM, PM, modulation d'impulsion |
| Précision de niveau | ±0,5 dB (typique) |
| Interface de communication | USB, LAN (LXI), GPIB (en option) |
| Référence de fréquence interne | 10 MHz, stabilité ±1 ppm |
| Pureté spectrale (bruit de phase) | -105 dBc/Hz à 20 kHz de décalage (1 GHz) |
| Alimentation électrique | 100 V à 240 V CA, 50/60 Hz |
| Dimensions (L x H x P) | 435 mm x 88 mm x 390 mm (2U) |
Rohde & Schwarz EVSG1000 Options:
- EVSG1000 - EVSG-B1 - Second signal processing unit
- EVSG1000 - EVSG-B2 - Battery management
- EVSG1000 - EVSG-B3 - Battery pack (requires R&S EVSG-B2)
- EVSG1000 - EVSG-K1 - ILS CRS/CLR analysis
- EVSG1000 - EVSG-K2 - VOR analysis
- EVSG1000 - EVSG-K3 - MB analysis
- EVSG1000 - EVSG-K4 - GBAS mode
- EVSG1000 - EVSG-K5 - SCAT I mode
- EVSG1000 - EVSG-K6 - COM analysis
- EVSG1000 - EVSG1-K7 - LF analysis
- EVSG1000 - EVSG-K10 - RF spectrum analysis
- EVSG1000 - EVSG-K11 - AF spectrum analysis
- EVSG1000 - EVSG-K12 - AF time domain analysis
- EVSG1000 - EVSG-K20 - GPS support
- EVSG1000 - EVSG-K21 - Data recording
- EVSG1000 - EVSG-K22 - High measurement rate
- EVSG1000 - EVSG-K23 - Preselector
- EVSG1000 - EVSG-K24 - Power sensor support
- EVSG1000 - EVSG1-K25 - I/Q data streaming (requires R&S EVSG-K21)
| Model | EVSG1000 |
|---|

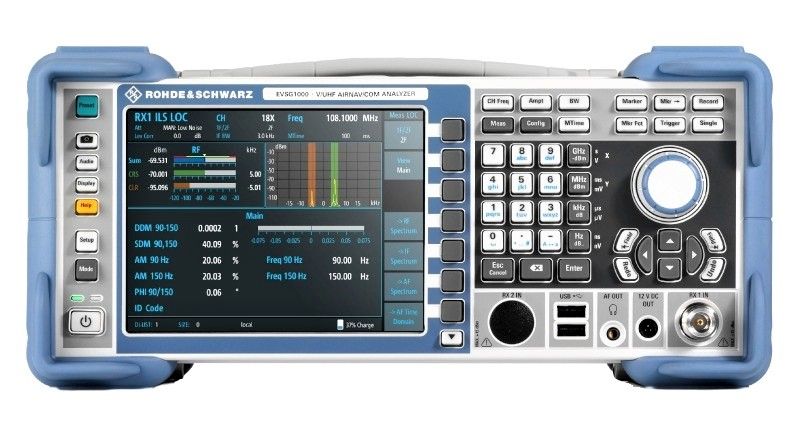

ROHDE & SCHWARZ EVSG1000 VHF/UHF Airnav/Com Analyzer
The Rohde & Schwarz EVSG1000 VHF/UHF airnav/com analyzer is a portable signal level and modulation analyzer specifically designed for commissioning and servicing ILS, GBAS, VOR, NDB and marker beacon ground stations and for analyzing air traffic control communications (ATC COM) signals. The instrument's high accuracy and measurement speed, robust mechanical design and integrated battery make it ideal for high-precision measurements in the field. The Rohde & Schwarz EVSG1000 offers an extremely wide dynamic range which enable it to carry out fast, accurate, ICAOcompliant measurements.
The Rohde & Schwarz EVSG1000 has a modular design and comes with numerous options, allowing it to be tailored to the specific application. It can perform simultaneous analysis of course and clearance signals on dual-frequency (2F) ILS systems. This instrument is easy to operate and provides full functionality even in harsh environments. Its 6.5" color display provides a clear overview of settings and results, which are easy to read even in direct sunlight. Rohde & Schwarz EVSG1000 is having an optional battery pack and intelligent battery management which make it possible to perform measurements independent of the mains supply. Featuring compact, robust and lightweight, this airnav/com analyzer is easy for maintenance, repair and service.
Specifications for the ROHDE & SCHWARZ EVSG1000 VHF/UHF Airnav/Com Analyzer Include:
| Frequency Range | 70 MHz to 410 MHz |
| Frequency measurement resolution | 1 Hz |
| Displayed Noise Level in normal mode | Up to 0 dBm |
| Phase Noise | €“145 dBc (1 Hz) at 1 MHz |
