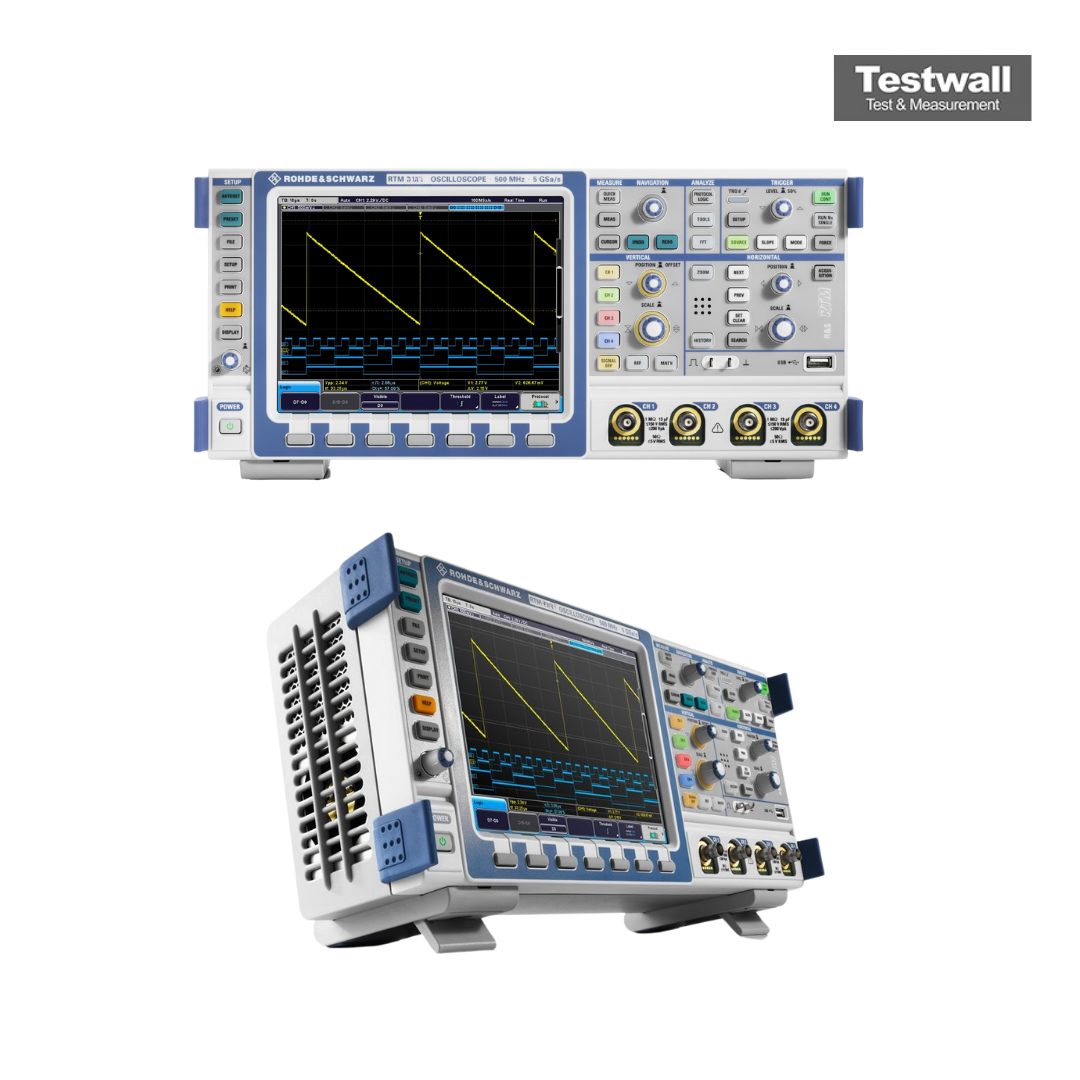

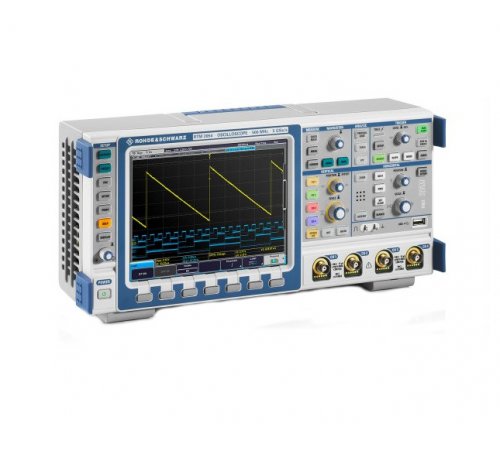

Rohde & Schwarz RTM2024 Digital Oscilloscope
| Attribut | Valeur |
|---|---|
| Largeur de bande passante | 200 MHz |
| Nombre de voies | 4 voies analogiques |
| Taux d'échantillonnage | 2,5 Géch/s |
| Profondeur mémoire | 10 Mpts (points par voie) |
| Résolution verticale | 8 bits (jusqu'à 10 bits en mode haute résolution) |
| Taille de l'écran | 10,1 pouces (écran tactile capacitif) |
| Résolution de l'écran | 1 280 x 800 pixels |
| Voies logiques numériques | 16 voies logiques numériques (en option) |
| Interfaces de connectivité | USB, LAN (Ethernet), sortie HDMI |
| Fréquence du générateur de formes d'ondes intégré | jusqu'à 50 MHz (en option) |
Rohde & Schwarz RTM2024 Digital Oscilloscope Options:
- RTM2024 - RTM-B1 - Mixed Signal Option, 400 MHz
- RTM2024 - RTM-B10 - GPIB Interface
- RTM2024 - RTM-B200 - Bandwidth Upgrade from 350 MHz to 500 MHz
- RTM2024 - RTM-K1 - I2C/SPI Serial Triggering and Decoding
- RTM2024 - RTM-K2 - UART/RS-232 Serial Triggering and Decoding
- RTM2024 - RTM-K3 - CAN/LIN Serial Triggering and Decoding
- RTM2024 - RTM-K5 - I2S/LJ/RJ/TDM Serial Triggering and Decoding
- RTM2024 - RTM-K6 - MIL-1553 Serial Triggering and Decoding
- RTM2024 - RTM-K15 - History and Segmented Memory
- RTM2024 - RTM-K31 - Power Analysis
| Model | RTM2024 |
|---|
The oscilloscope numérique Rohde & Schwarz RTM2024 features 4 channels with 200 MHz bandwidth, 2.5 Gsample/s sampling rate (5 Gsample/s on half channels), and 10 Msample memory (up to 20 Msample). With 8-bit resolution expandable to 16-bit, and automatic measurements including peak, RMS, and frequency, it is suited for advanced electronic testing. Inputs support 50 Ω ±1.5% and 1 MΩ ±1% configurations.
The RTM2024 includes an 8.4″ XGA TFT display, USB and LAN connectivity, and supports optional features like MSO logic analyzer, spectrum analyzer (K18), and power analysis (K31).
Testwall peut fournir l’oscilloscope numérique utilisé oscilloscope numérique Rohde & Schwarz RTM2024, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the oscilloscope numérique Rohde & Schwarz RTM2024.
