Rohde & Schwarz ZNC3
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 9 kHz – 3 GHz |
| Nombre de ports | 2 |
| Plage dynamique | 120 dB |
| Puissance de sortie maximale | +3 dBm |
| Plancher de bruit | -110 dBm |
| Résolution de fréquence | 1 Hz |
| Nombre de points de mesure | jusqu'à 60 001 points |
| Interface | LAN (RJ-45), USB, GPIB (en option) |
| Écran | Écran tactile LCD couleur 10,4 pouces |
| Alimentation électrique | 100 – 240 V CA, 50/60 Hz |
Rohde & Schwarz ZNC3 Options:
- ZNC3 - B22 - Extended Power Range for the R&S ZNC3
- ZNC3 - B10 - GPIB Interface
- ZNC3 - B14 - Handler I/O (R&S ZN-B14)
- ZNC3 - B19 - Additional Removable Hard Disk, 32 bit IPS1
- ZNC3 - B19 - Additional Removable Hard Disk, 64 bit IPS2
- ZNC3 - K2 - Time Domain Analysis
- ZNC3 - K19 - 1 mHz Frequency Resolution
- ZNC3 - ZZA-KN5 - 19" Rackmount Kit
| Model | ZNC3 |
|---|

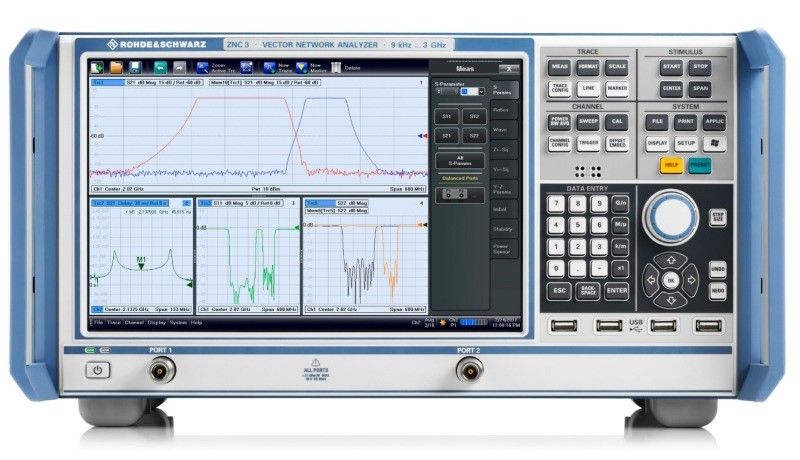

ROHDE & SCHWARZ ZNC3 Network Analyzer
Operating in a range from 9 kHz to 3 GHz, the Rohde & Schwarz ZNC3 network analyzer is targeted at applications in the mobile radio and electronic goods industries. It has a bidirectional test set for measuring all four S-parameters of active and passive DUTs. Plus, it offers calibration methods suitable for a wide range of T&M environments in development and production. The analyzer features excellent temperature and long-term stability, which ensures reliable measurements over several days without having to recalibrate the unit.
The Rohde & Schwarz ZNC3 features short measurement times, a result of fast synthesizer settling times, high-speed data processing up to the display, and fast LAN or IEC/IEEE bus data transfer to the controller. The analyzer's maximum IF bandwidth of 300 kHz, together with its fast synthesizers, yields a sweep time as short as 11 ms for 401 points. The segmented sweep function divides the frequency axis into segments. Sweep parameters such as output power, IF bandwidth and number of points can be defined separately for each segment to optimally match the DUT characteristics. The Rohde & Schwarz ZNC3 also offers powerful time-domain analysis to measure components such as cables or filters.
Specifications for the ROHDE & SCHWARZ ZNC3 Network Analyzer Include:
- Frequency range from 9 kHz to 3 GHz
- Dynamic range of up to 130 dB
- Short sweep times of 11 ms for 401 points
- High temperature stability of typ. 0.01 dB/ °C
- Wide power sweep range from €“50 dBm to +13 dBm
- IF bandwidths from 1 Hz to 300 kHz
- Manual and automatic calibration
- Low trace noise of 0.004 dB RMS at 10 kHz IF bandwidth
