Tektronix BSX240
| Attribut | Valeur |
|---|---|
| Nombre de canaux | 240 canaux numériques |
| Fréquence d'échantillonnage maximale | 10 Gb/s par canal |
| Profondeur mémoire | Jusqu'à 2 Gbit par canal |
| Tension d'entrée maximale | ±40 V (protection contre les surtensions) |
| Niveaux logiques compatibles | 1,2 V à 5 V (LVCMOS, LVTTL, LVDS, etc.) |
| Interface de connexion | USB 3.0 et interface haute vitesse vers oscilloscope Tektronix compatible |
| Compatibilité système | Compatible avec les oscilloscopes Tektronix série MSO/DPO5000, MSO/DPO7000 et MSO70000 |
| Résolution temporelle | 100 ps |
| Température de fonctionnement | 0 °C à +50 °C |
| Dimensions (L x H x P) | Conforme au format module externe Tektronix (unité rack compatible) |
Tektronix BSX240 Options:
- BSX240 - FEC - Forward error correction emulation
- BSX240 - UPM - User-defined detector pattern match
- BSX240 - F2 - F/2 jitter generation (Requires Option STR)
- BSX240 - J-MAP - Add jitter decomposition software
- BSX240 - LDA - Add live data analysis software
- BSX240 - STR - Stressed signal generation
- BSX240 - SLD - Add stressed live data option software (Requires Option STR)
- BSX240 - TXEQ - Add 4-tap Tx equalization
- BSX240 - C3 - Calibration Service 3 Years
- BSX240 - R3 - Repair Service 3 Years (including warranty)
- BSX240 - R3DW - Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of customer instrument purchase
| Model | BSX240 |
|---|

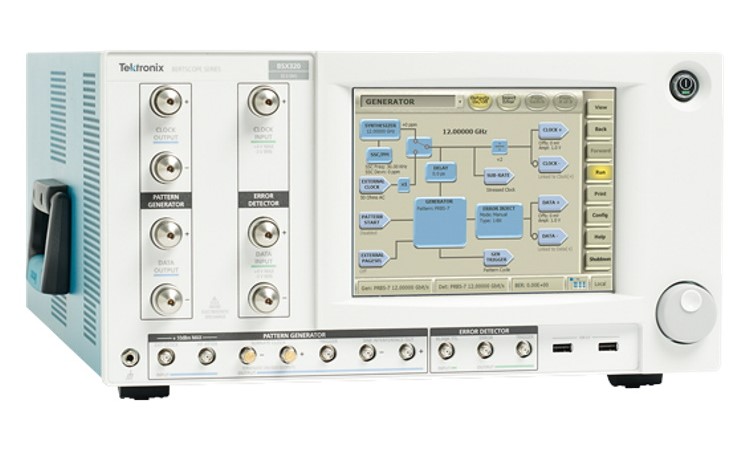

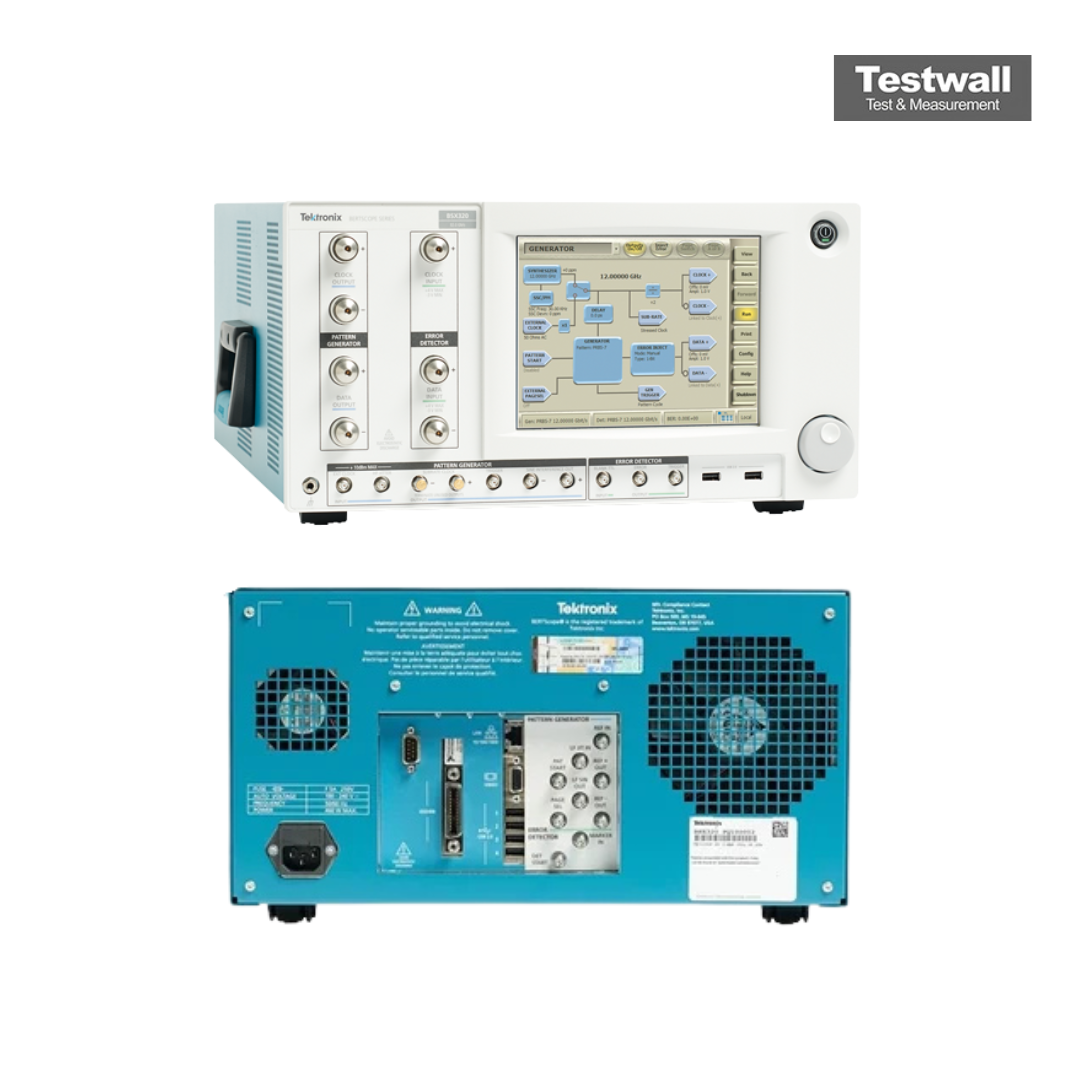

TEKTRONIX BSX240 BERTScope Bit Error Rate Analyzer
Tektronix BSX240 BERTScope Bit Error Rate Analyzer is a receiver test platform capable of supporting emerging Gen4 standards and beyond. With the addition of powerful data processing and internal Tx equalization, the Tektronix BSX240 BERTScope Bit Error Rate Analyzer supports protocol-based handshaking and synchronization with device under test (DUT), including interactive link training at data rates up to 24 Gb/s.
The Tektronix BSX240 BERTScope Bit Error Rate Analyzer is an advanced testing tool for high-speed digital signals, and it provides a comprehensive solution for bit error rate testing, eye diagram analysis, and jitter analysis. It also supports protocol-oriented and bit-oriented multi-chain pattern sequencing with enhanced pattern/sequence editor. It shortens the time to debug physical layer and link training issues, and provides the quickest path to compliance for a broad range of standards. The Tektronix BSX240 BERTScope Bit Error Rate Analyzer provides error detection and analysis, allowing engineers to quickly identify and understand any errors present in the signal being tested.
Specifications for the TEKTRONIX BSX240 BERTScope Bit Error Rate Analyzer Include:
| Data Rate Range | 1 to 24 Gb/s |
| Jitter generation | 2.5 UI to 8.5 UI |
| Bit error rate measurement | Up to 1x10^-12 BER |
| Input/output Channels | 2 (1 transmit, 1 receive), with SMA connectors |
